Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
163891979O-M Ltd.VTL-12

 DescriptionSpec Values
Capacity:Table Diameter / Maximum Swing / Maximum Table Load47" / 66" / 11,000 Lbs
 Maximum Height Under Rail / Maximum Turning Diameter43" / 53"
Spindle:Speeds5.1 - 250 RPM
 Motor25 HP
Head(s):Number of HeadsOne
 Type Head(s)Turret Head (5-Pos.)
Travels:Turret Head - Vertical Travel / Cross Travel / Swivel35 1/2" / 35 1/2" / 30°
 Vertical Travel of Rail Head39 3/8"
Feeds:Rapid Traverse276 IPM
 Feed Range.0025 - 0.110 IPM
Dimensions:Floor Space (L x W x H)170” x 137” x 190”
 Weight (approx.)30,000 Lbs

 Equipped With
Additional Info.:47" 4-Jaw Chuck
 Pendant Control
 Inch / Metric Threading Attachment
 Table and Splash Guarding
 Coolant System
 Accurate DRO

Click Here To Print Quote - 16389

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>


ManufacturerModelMachine IDMachine Photos

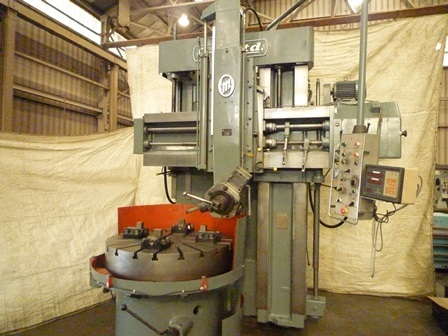

O-M Ltd.VTL-1216389 Ltd VTL-12.jpg

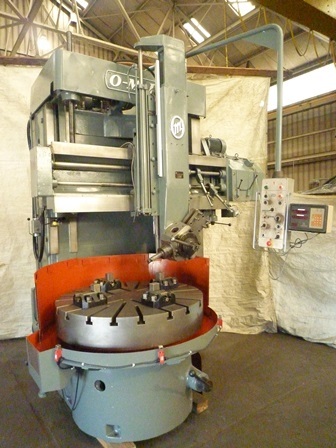

O-M Ltd.VTL-1216389 Ltd VTL-12 a.jpg

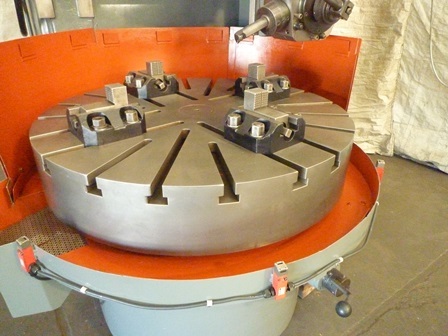

O-M Ltd.VTL-1216389 Ltd VTL-12 b.jpg

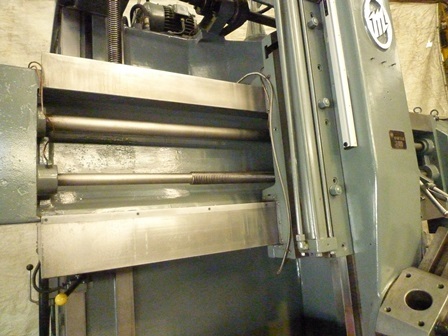

O-M Ltd.VTL-1216389 Ltd VTL-12 c.jpg

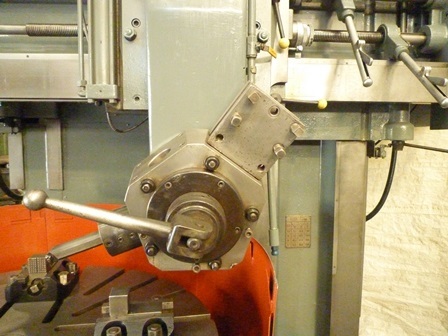

O-M Ltd.VTL-1216389 Ltd VTL-12 d.jpg

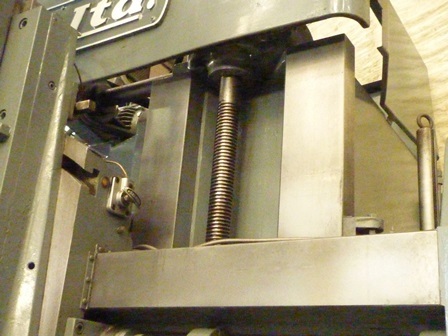

O-M Ltd.VTL-1216389 Ltd VTL-12 e.jpg
