Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
138811993WalterHelitronic 45Walter HMC 300

 DescriptionSpec Values
Capacity:Maximum Tool Diameter / Length12.60" / 10"
 Maximum Between Spindle Nose and Tailstock25.59"
Travels:X-Axis Travel23.62"
 Z-Axis Travel (cross slide)10.23"
 Y-Axis Travel (column drive) Vertical10.62"
 A-Axis Taper / Smallest Pitch / Largest Pitch50 Taper / .01" / 2520"
 Grinding Head Swivel Range Vertical / Horizontal360° / 220°
Grinding Spindle:Diameter / Maximum Wheel / Bore3.14" / 7.87" / 1 1/4"
 Speeds3,060 - 6,120 RPM
 Motor (30 min. / continuous)5.63 / 4.5 HP
Dimensions:Floor Space (L x W x H)104" x 86" x 90"
 Weight (approx)7,100 Lbs

 Equipped With
Additional Info.:Tool Probe
 Coolant System
 Extra Wheel Mounts
 Mist Collector

Click Here To Print Quote - 13881

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>


ManufacturerModelMachine IDMachine Photos

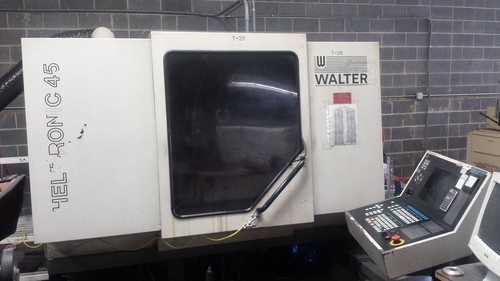

WalterHelitronic 4513881 Helitronic 45.jpg

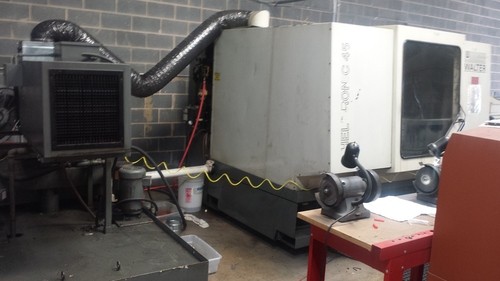

WalterHelitronic 4513881 Helitronic 45 a.jpg

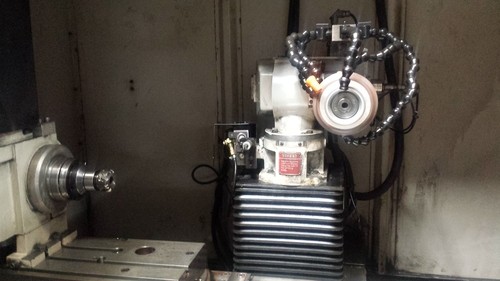

WalterHelitronic 4513881 Helitronic 45 b.jpg

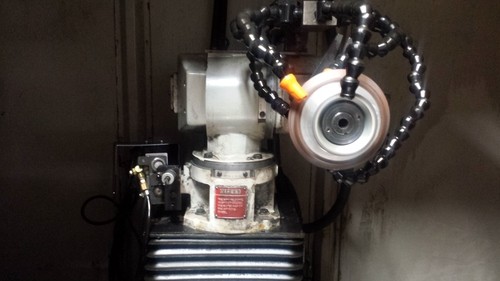

WalterHelitronic 4513881 Helitronic 45 c.jpg

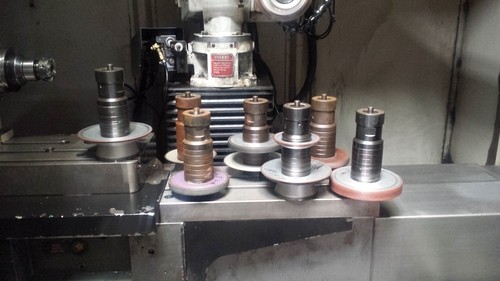

WalterHelitronic 4513881 Helitronic 45 d.jpg
