Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
163642017HaasVF-2Haas Control

 DescriptionSpec Values
Table:Table Size36" x 14"
 Maximum Table Load3,000 Lbs
Travels:X-Axis Travel30"
 Y-Axis Travel16"
 Z-Axis Travel20"
Spindle:Spindle Speeds8,100 RPM
 Spindle Taper40 Taper
 Main Motor30 / 25 HP
Tool Changer:Tool Changer Positions20 ATC
Rapids:Rapid Traverse (X, Y & Z )1,000 IPM
 Feed Rate650 IPM
Dimensions:Floor Space (L x W x H)93" x 88" x 106"
 Weight (approx.)8,500 Lbs

 Equipped With
Additional Info.:Rigid Tapping (synchronous / solid tapping)
 USB Port
 Wireless Intuitive Probing System
 Chip Auger
 4th Axis Interface (no table)
 1 Gig of Memory
 Early Power Failure Detection Module
 Ethernet Port
 WiFi Connection
 Visual Part Programming System
 Spindle Orientation
 Coordinate Rotation and Scaling
 User Definable Macros
 Window Air Blast


Click Here To Print Quote - 16364

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

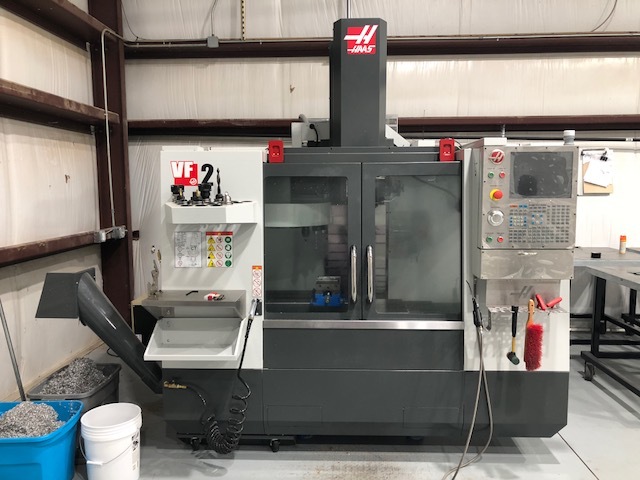

HaasVF-216364http://www.machinetools247.com/images/machines/16364-Haas Vf-2.jpg

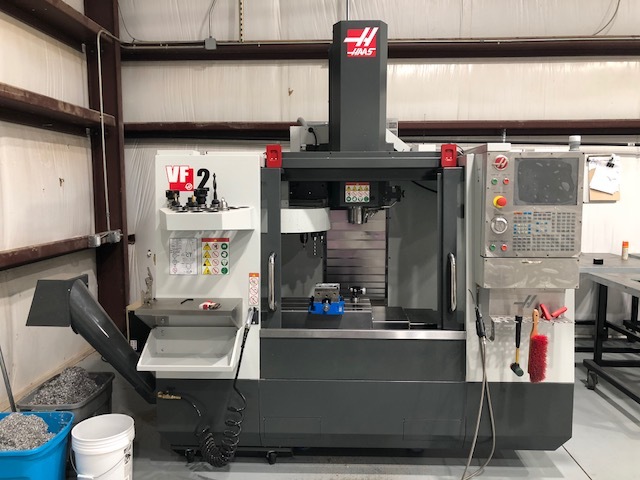

HaasVF-216364http://www.machinetools247.com/images/machines/16364-Haas Vf-2 a.jpg

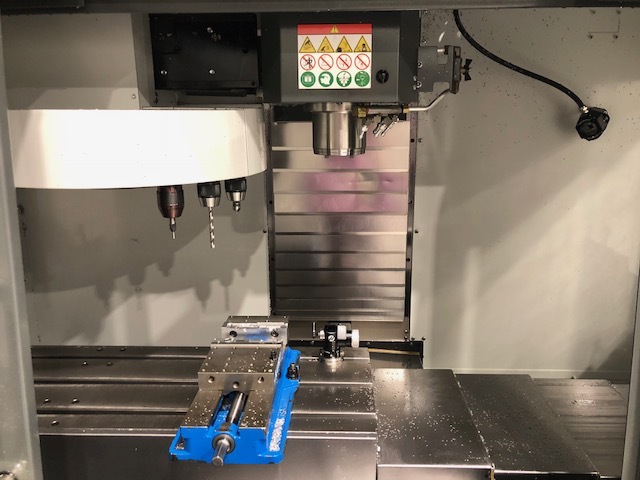

HaasVF-216364http://www.machinetools247.com/images/machines/16364-Haas Vf-2 b.jpg

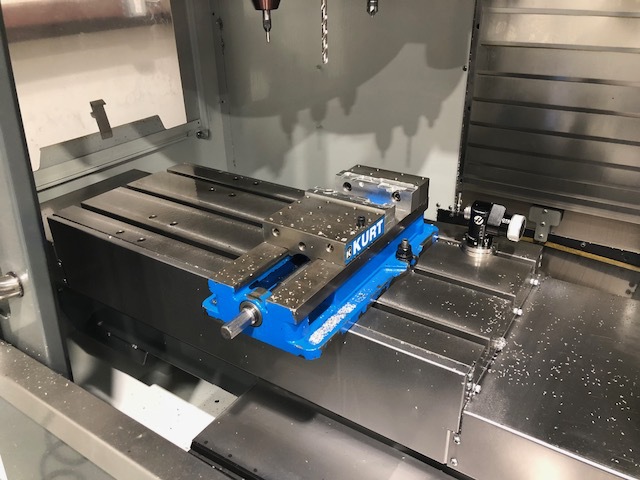

HaasVF-216364http://www.machinetools247.com/images/machines/16364-Haas Vf-2 c.jpg

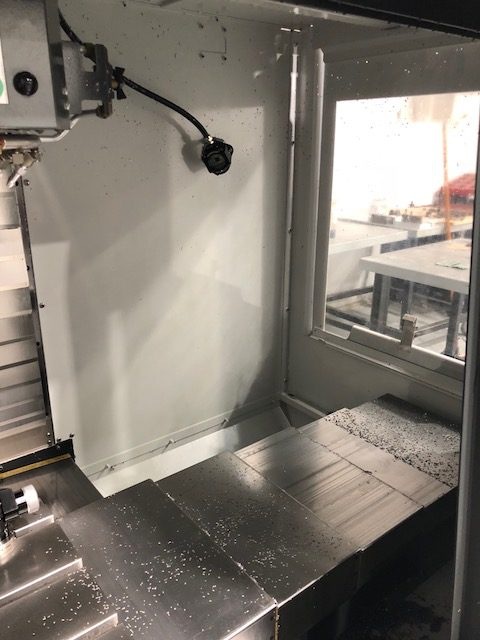

HaasVF-216364http://www.machinetools247.com/images/machines/16364-Haas Vf-2 d.jpg

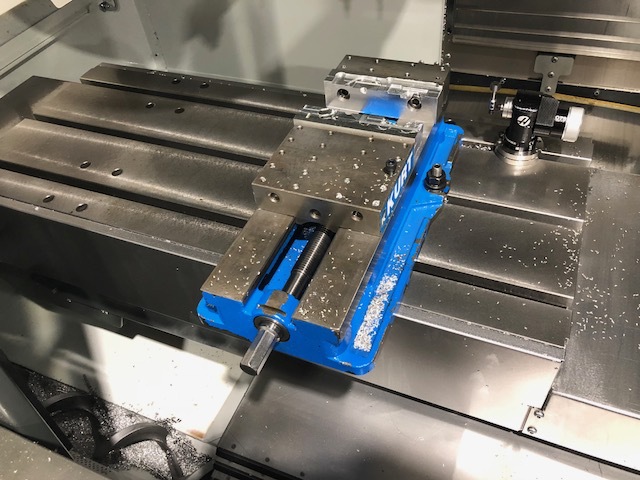

HaasVF-216364http://www.machinetools247.com/images/machines/16364-Haas Vf-2 e.jpg

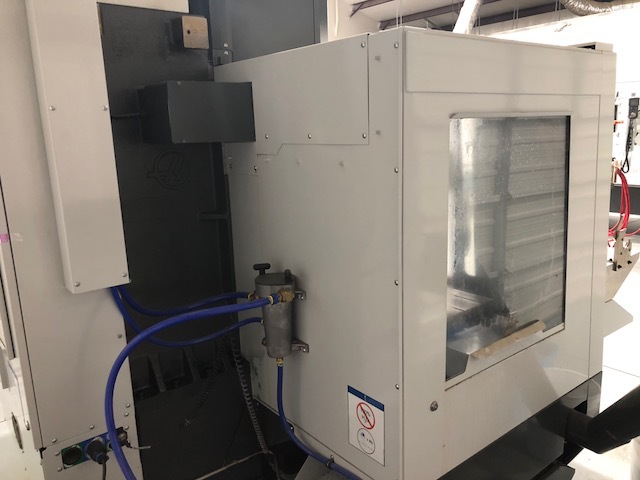

HaasVF-216364http://www.machinetools247.com/images/machines/16364-Haas Vf-2 f.jpg

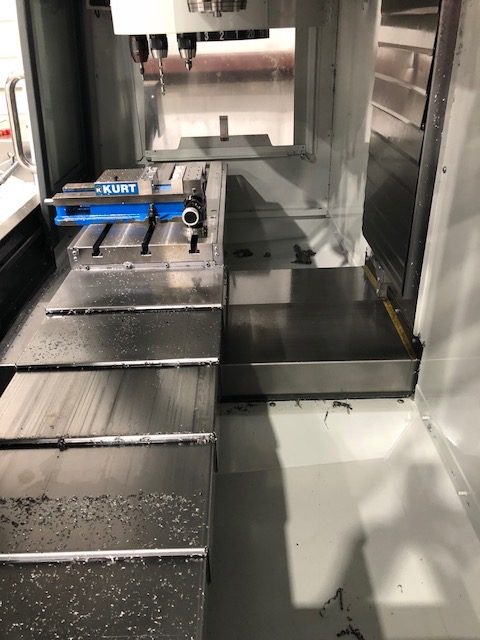

HaasVF-216364http://www.machinetools247.com/images/machines/16364-Haas Vf-2 g.jpg

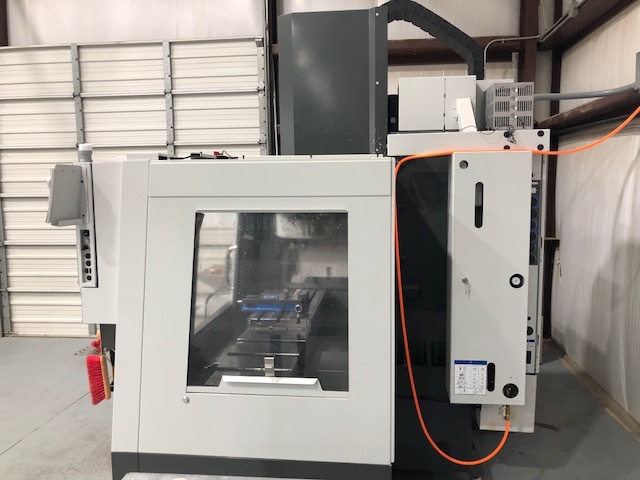

HaasVF-216364http://www.machinetools247.com/images/machines/16364-Haas Vf-2 h.jpg
