Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
162692005MazakIntegrex 200 III STMazatrol Fusion 640 MT Pro

 DescriptionSpec Values
Capacity:Swing Over Bed / Swing Over Saddle26.5" / 16.5"
 Maximum Turning Diameter Upper / Lower / Length26" / 19.7" / 59.68"
Main Spindle:Speeds50 - 5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose2.99" / 2" / A2-6
 Motor (30 min. / cont.)30 / 20 HP
Sub-Spindle:Speeds50 - 5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose / Indexing2.99" / 2" / A2-6
 Motor (30 min. / cont.)25 / 20 HP
Rotary Tools:Rotary Tool Speed Upper Turret / Lower Turret12,000 / 6,000 RPM
 Rotary Tool Motor20 HP
Turrets:Number of Positions (ATC) / Lower Turret40 Tool ATC / 9 Sta.
Travels:X-Axis Travel / X2-Lower Turret22.83" / 5.91"
 Z-Axis Travel / Z2-Lower Turret60.83" / 58.66"
 Y-Axis Travel3.15" +/-
 B-Axis Stroke / B-Indexing / C-Indexing46.4" / 225° / 360,000°
Rapids:Rapid Traverse (X & Z / B)1,496 / 555 IPM
 Rapid Traverse (Y / Sub Spindle)1,024 / 1,181 IPM
Dimensions:Floor Space (L x W x H)190" x 100" x 103"
 Weight (approx)26,000 Lbs

 Equipped With
 MAZACC-2D For Rotary Axis
 MAZACC-2D Software (Shape Compensation)
 User Macro
 Helical Interpolation (EIA/ISO)
 EIA/ISO Code Input Function
 Polar Coordinate Input (G122)
 Selection of Workpiece Coordinate System
 Direct Entry of Drawing Dimensions
 Cylindrical (G07) and Polar Coordinate Interpolation (G12)
 PCMCIA Interface (2-Slot)
 Ethernet Port

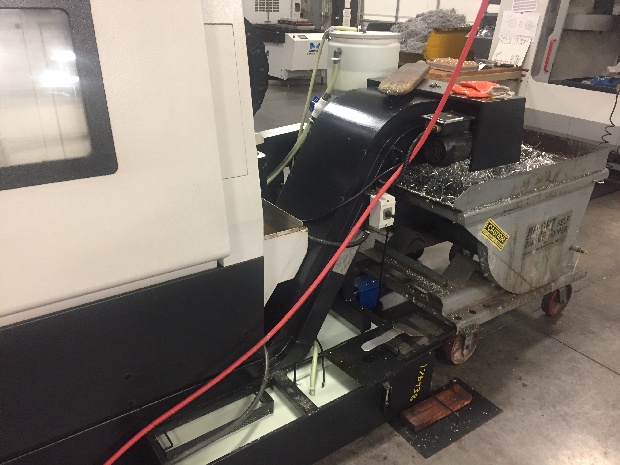

 Chip Conveyor Side Disposal (Hinge Type)
 Windows 2000 Operating System for Mazak Machine
 N-Simultaneous 5 Axes Package
 213 PSI Coolant Through and Flood Upper Turret (prepped for 1,000 psi)
 71 PSI Lower Turret
 C1-C2 Synchronous Operation Function
Additional Info.:8" 3-Jaws Hydraulic Chuck on Main and Sub Spindles
 Coordinate System Rotation (EIA)(B-Axis)
 Tool Eye
 Floppy Drive
 RS-232 Port
 Milling / Synchronous Tapping
 Macro Interruption
 Parts Catcher
 KM-63 Tooling
 Full Five Axis Capabilities


Click Here To Print Quote - 16269

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

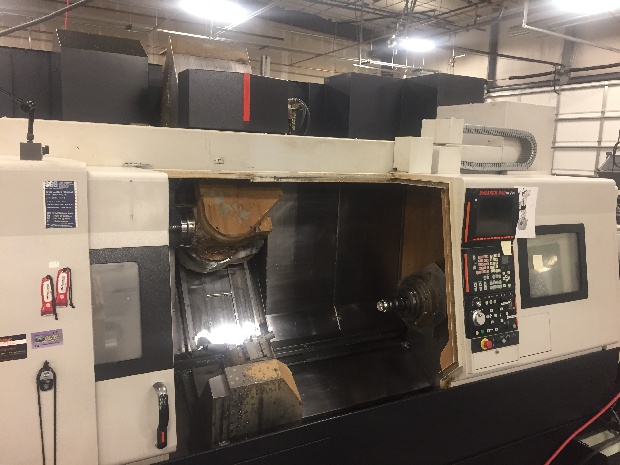

MazakIntegrex 200 III ST16269http://www.machinetools247.com/images/machines/16269-Mazak Integrex 200 III ST.jpg

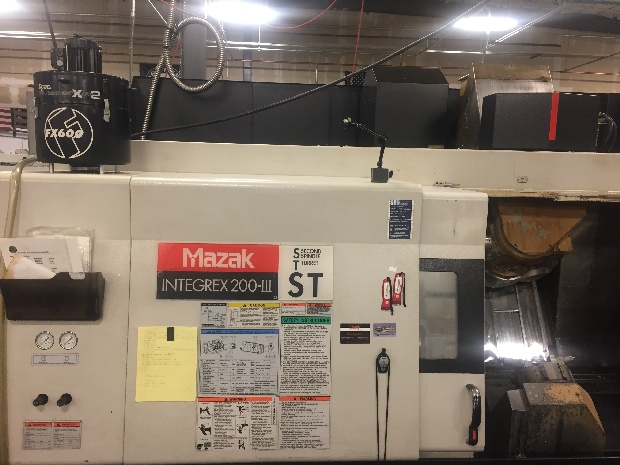

MazakIntegrex 200 III ST16269http://www.machinetools247.com/images/machines/16269-Mazak Integrex 200 III ST 1.jpg

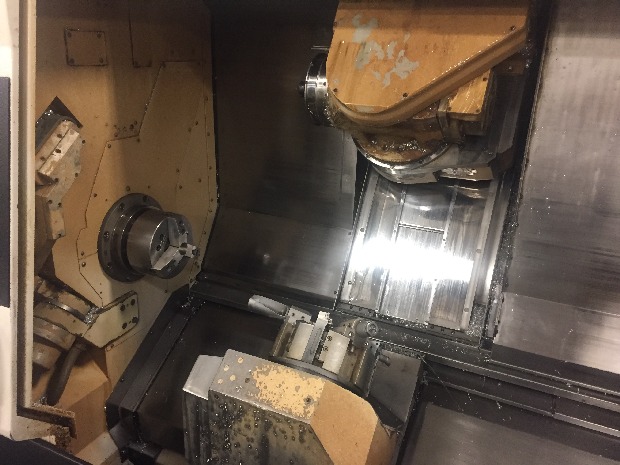

MazakIntegrex 200 III ST16269http://www.machinetools247.com/images/machines/16269-Mazak Integrex 200 III ST 2.jpg

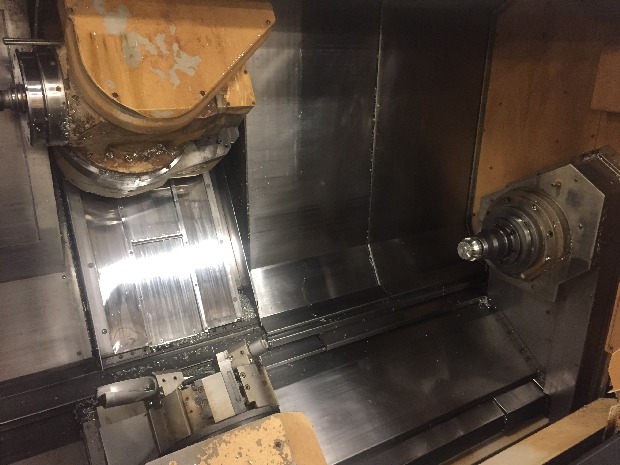

MazakIntegrex 200 III ST16269http://www.machinetools247.com/images/machines/16269-Mazak Integrex 200 III ST 3.jpg

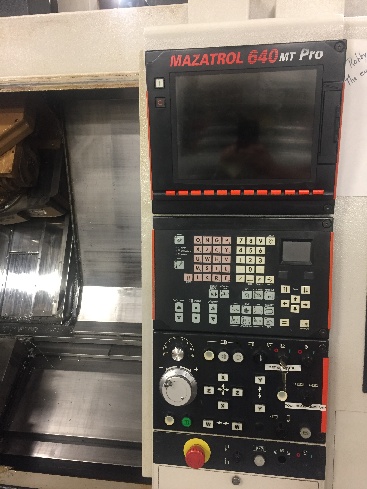

MazakIntegrex 200 III ST16269http://www.machinetools247.com/images/machines/16269-Mazak Integrex 200 III ST 4.jpg
MazakIntegrex 200 III ST16269http://www.machinetools247.com/images/machines/16269-Mazak Integrex 200 III ST 5.jpg

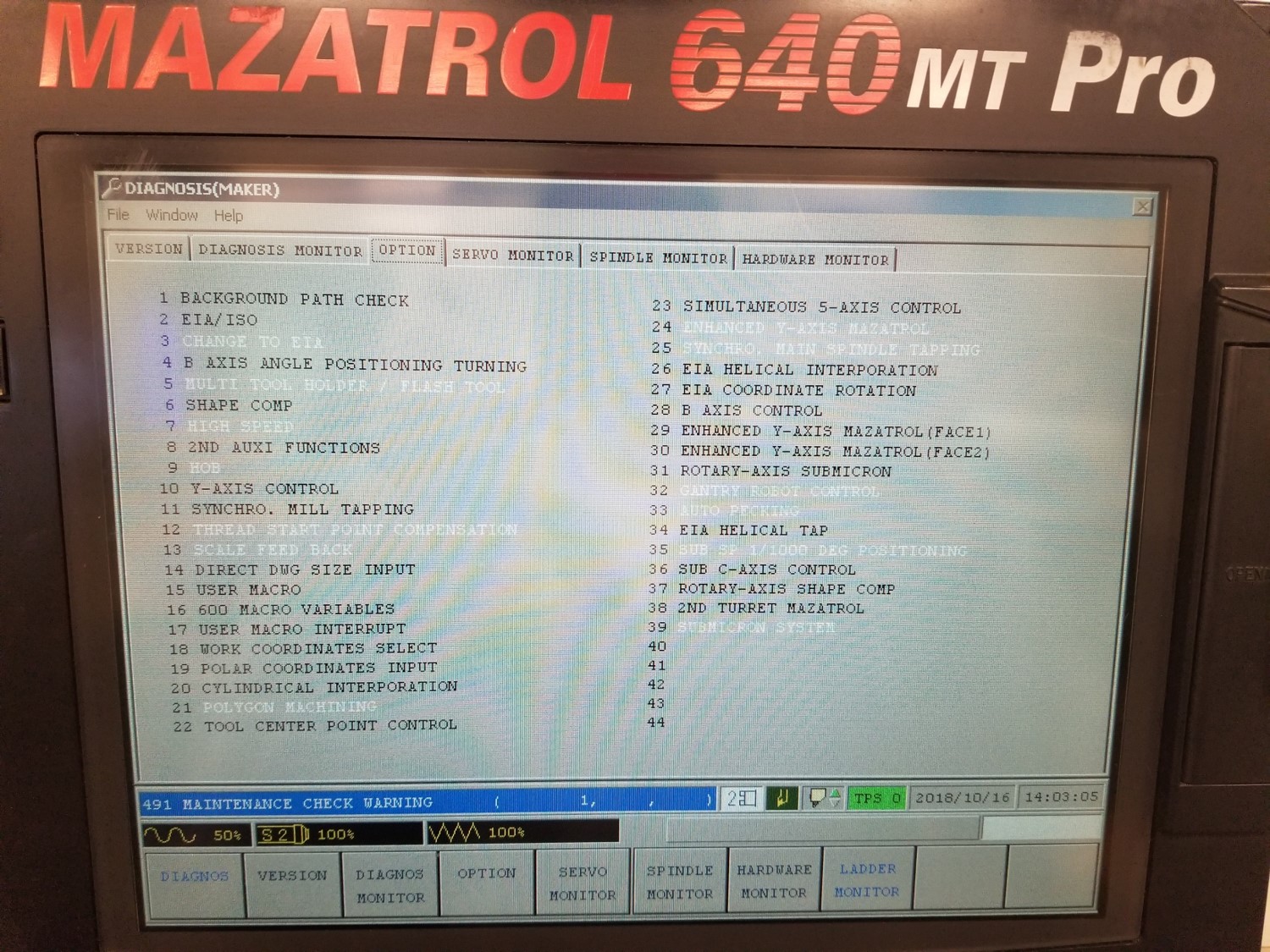

MazakIntegrex 200 III ST16269http://www.machinetools247.com/images/machines/16269-Mazak Integrex 200 III ST 6.jpg
