At Machine Tools 24-7 we never stop working to serve your machine tool needs

Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
162342015OkumaLB-3000 EX BB MYWOSP-P300L

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide22.38" / 18.5"
 Maximum Turning Diameter / Maximum Turning Length16.14" / 29.87"
 Distance Between Spindles42.72"
Main Spindle:Spindle Speeds Minimum - Maximum42 - 4,200 RPM
 Spindle Bore / Bar Capacity / Nose3.58" / 3.18" / A2-8
 Main Motor (30 min / continuous)40 / 30 HP
Sub Spindle:Speeds180 - 4,200 RPM
 Spindle Bore / Bar Cap / Spindle Nose3" / 2.44" / JIS Flat
 Motor (30 min / continuous)15 / 10 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel10.23"
 Z-Axis Travel39.17"
 Y-Axis Travel / W-Axis Travel4.72" +/- / 35.24"
Rotary Tools:Rotary Tool Speed45 - 6,000 RPM
 Rotary Tool Motor (30 min. / continuous)10 / 5 HP
Rapids:Rapid Traverse (X / Y / Z )984 / 492 / 1,181 IPM
 Feed Rate (X & Z )0.04 - 497 IPM
Dimensions:Floor Space (L x W x H)129.9" x 74.9" x 84.7"
 Weight (approx)18,700 Lbs

 Equipped With
Additional Info.:10" 3-Jaw Hydraulic Chuck Main, 6" 3-Jaw Hydraulic Chuck Sub
 RS-232 Port
 Chip Conveyor
 Prepped For Parts Catcher
 IGF Conversational Progamming
 Touch Setter - Both Spindles
 High Pressure Coolant
 Spindle Orientation
 Helical Cutting
 Synchronous Tapping - Main Spindle
 16C Pull Back Collet Chuck

Click Here To Print Quote - 16234

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>


ManufacturerModelMachine IDMachine Photos

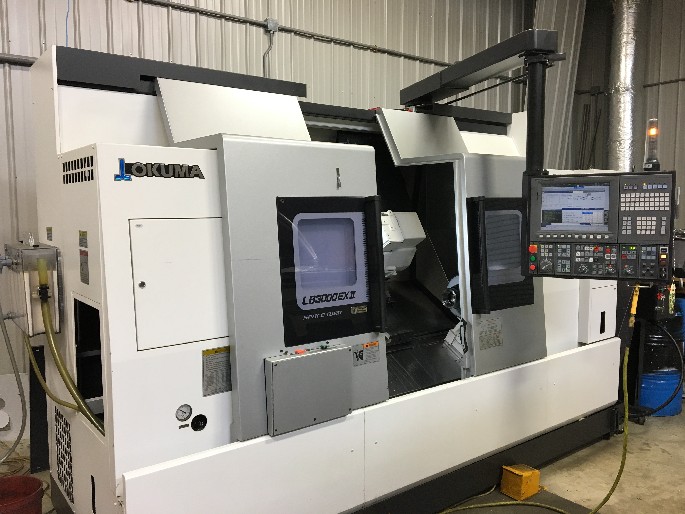

OkumaLB-3000 EX BB MYW16234 LB-3000 EX BB MYW.jpg
OkumaLB-3000 EX BB MYW16234 LB-3000 EX BB MYW 1.jpg

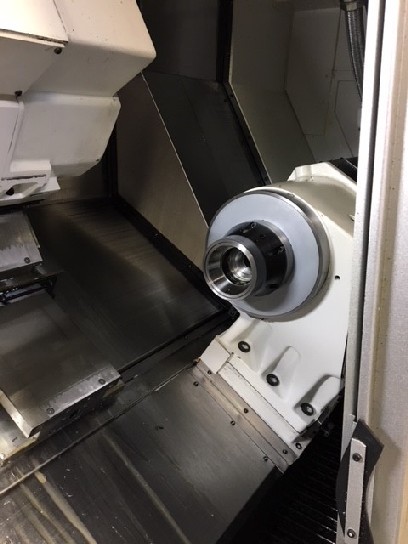

OkumaLB-3000 EX BB MYW16234 LB-3000 EX BB MYW 2.jpg

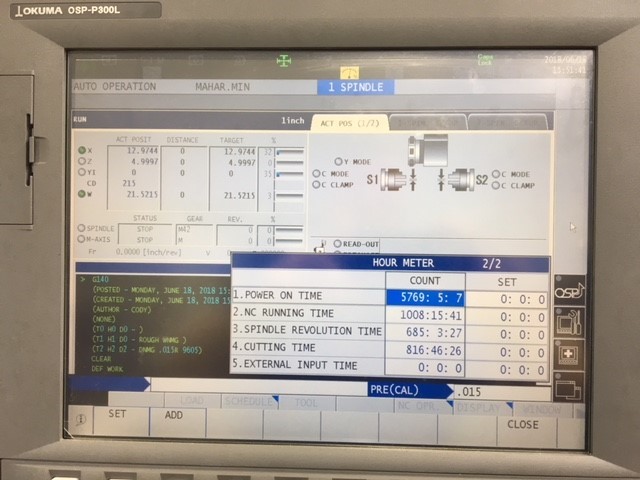

OkumaLB-3000 EX BB MYW16234 LB-3000 EX BB MYW 3.jpg
