Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
162252013MazakHyper Quadrex-250 MSYMazatrol Matrix II

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide14.67" / 13.64"
 Maximum Cutting Diameter / Maximum Turning Length13.64" / 33.86"
 Distance Between Spindles36"
Main Spindle:Speeds40 - 4,000 RPM
 Spindle Bore / Bar Capacity / Spindle Nose3.89" / 3.15" / A2-8
 Main Motor (30 min / continuous)36 / 30 HP
Sub-Spindle:Speeds60 - 6,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose2.99" / 2.5" / A2-6
 Motor (30 min. / cont.)30 / 25 HP
Turrets:Number of Positions (turret one / turret two) All Live12 Tools Each
Travels:X-Axis Travel (turret one / turret two)8.2" / 6.66"
 Z-Axis Travel (turret one / turret two)29.87" / 32.12"
 Y-Axis Travel (turret one)+/- 2"
 B-Axis Travel (sub-spindle)31"
Rotary Tools:Rotary Tool Speed60 - 6,000 RPM
 Rotary Tool Motor7.5 HP
Rapids:Rapid Traverse (X / Z / Y)1,181 / 1,417 / 1,024 IPM
 Sub Spindle Rapid Traverse1,181 IPM
Dimensions:Floor Space (L x W x H)185" x 120" x 98"
 Weight (approx)34,000 Lbs

 Equipped With
Note:Under 1,500 Cutting Hours
Additional Info.:10" 3-Jaw Hydraulic Chuck Main, 8" 3-Jaw Hydraulic Chuck on Sub
 Main Spindle Chuck Air Blast
 Two (2) Royal Collet Chucks
 Bar Feed Interface
 LNS Servo 80-S2 Bar Feed
 Turret Air Blast - Both Turrets
 LNS Blaze Air Spindle Liner
 Chip Conveyor
 Air Blow For Work Transfer
 Additional Coolant Nozzels
 Tool Setter - Both Turrets


Click Here To Print Quote - 16225

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

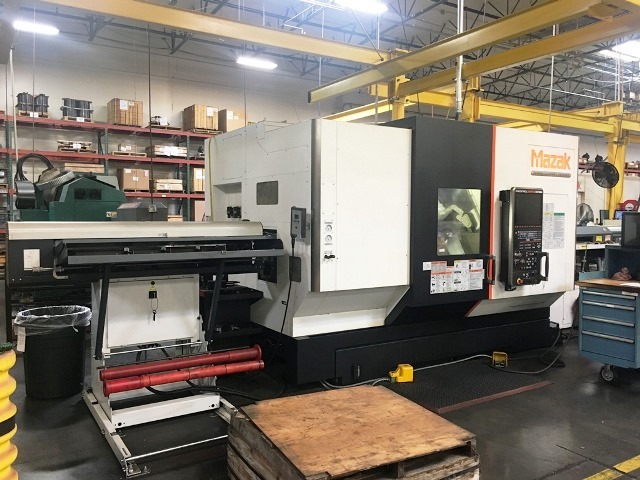

MazakHyper Quadrex-250 MSY16225http://www.machinetools247.com/images/machines/16225-Mazak Hyper Quadrex-250 MSY.jpg

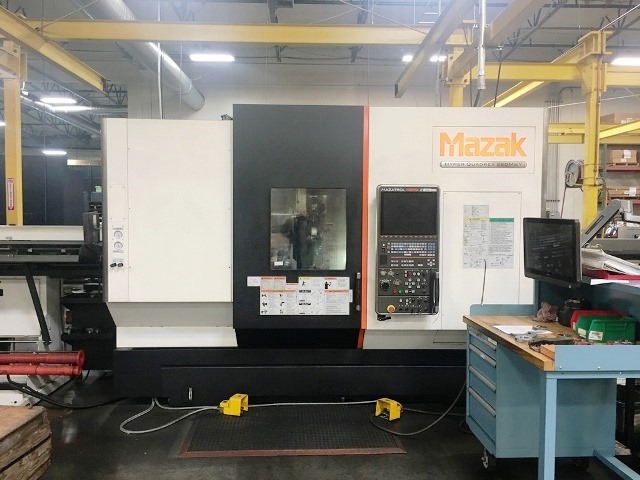

MazakHyper Quadrex-250 MSY16225http://www.machinetools247.com/images/machines/16225-Mazak Hyper Quadrex-250 MSY 1.jpg
MazakHyper Quadrex-250 MSY16225http://www.machinetools247.com/images/machines/16225-Mazak Hyper Quadrex-250 MSY 2.jpg

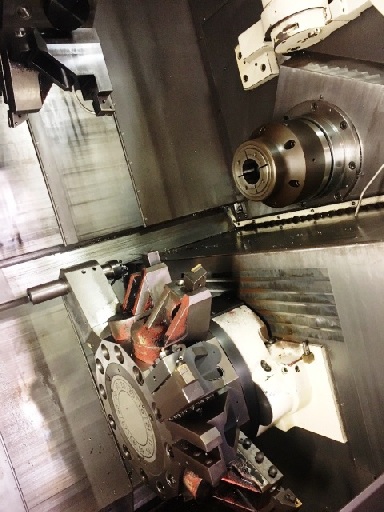

MazakHyper Quadrex-250 MSY16225http://www.machinetools247.com/images/machines/16225-Mazak Hyper Quadrex-250 MSY 3.jpg

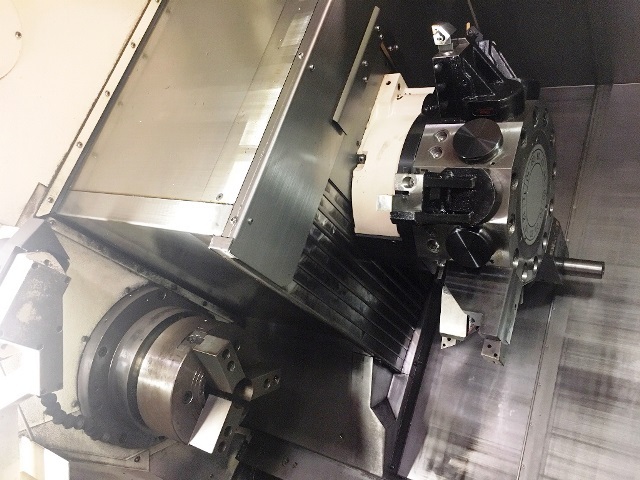

MazakHyper Quadrex-250 MSY16225http://www.machinetools247.com/images/machines/16225-Mazak Hyper Quadrex-250 MSY 4.jpg
