Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

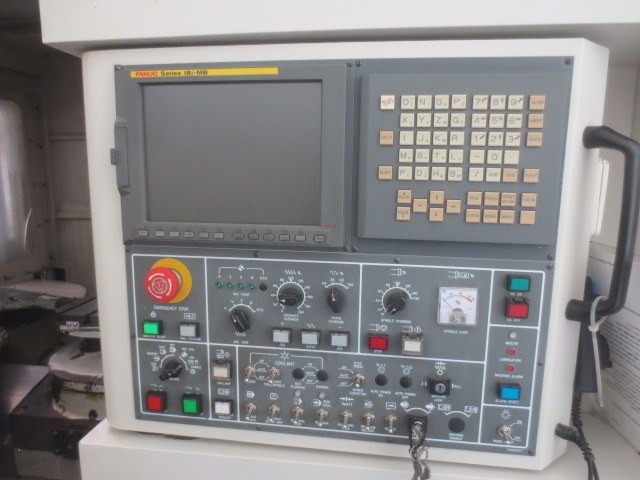

161622005DoosanDHP-400Fanuc 18iM

 DescriptionSpec Values
Pallet:Pallet Size (2 Pallets) / Change Time15.75" x 15.75" / 7 Sec.
 Pallet Indexing / Table Load1° / 880 Lbs
Travels:X-Axis Travel23.6"
 Y-Axis Travel22"
 Z-Axis Travel23.6"
Spindle:Spindle Speeds Minimum - Maximum140 - 14,000 RPM
 Spindle Taper40 Taper
 Main Motor (30 min / continuous)30 / 25 HP
 Spindle Center to Table Top1.97" - 24"
Tool Changer:Tool Changer Positions60 ATC
 Tool Change Time (Tool-to-Tool / Chip-to-Chip)1.5 / 4 Sec.
Rapids:Rapid Traverse (X, Y & Z )2,362 IPM
 Feed Rate1,181 IPM
Dimensions:Floor Space (L x W x H)120" x 105" x 120"
 Weight (approx.)30,000 Lbs

 Equipped With
Additional Info.:Spindle Air Blow
 Coolant Through Spindle (230 psi) - Prepped for 1,000 PSI
 Remote Jog Handle
 Flood Coolant
 Dual Augers Conveyors
 Rigid Tapping
 Chip Conveyor
 CoolJet Coolant Filtration and Pump
 Custom Macro B
 Big Plus Spindle
 Spindle Chiller


Click Here To Print Quote - 16162

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

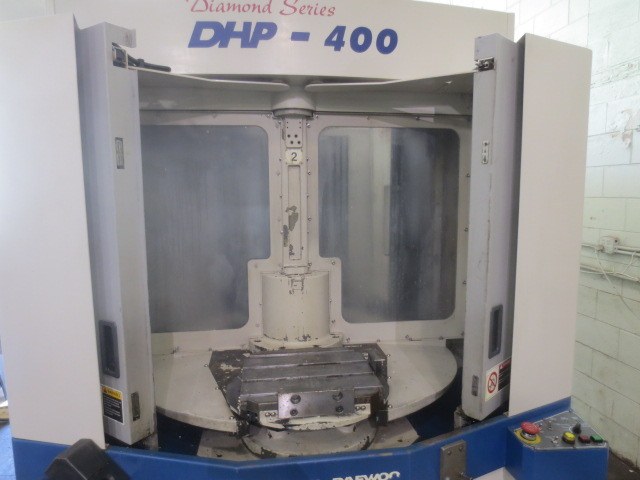

DoosanDHP-40016162http://www.machinetools247.com/images/machines/16162-Doosan DHP-400.jpg

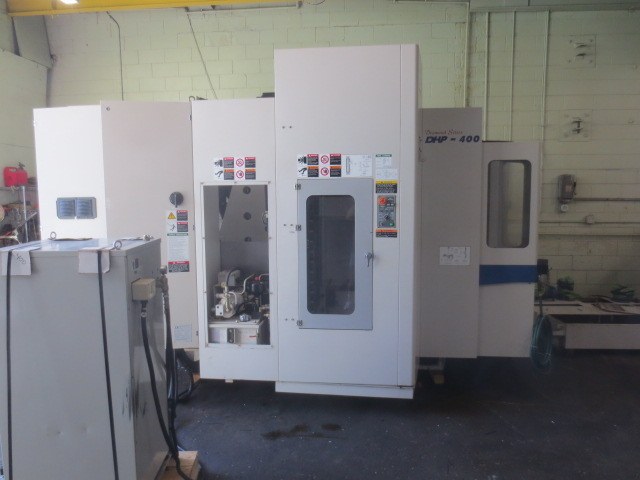

DoosanDHP-40016162http://www.machinetools247.com/images/machines/16162-Doosan DHP-400 a.jpg
DoosanDHP-40016162http://www.machinetools247.com/images/machines/16162-Doosan DHP-400 b.jpg

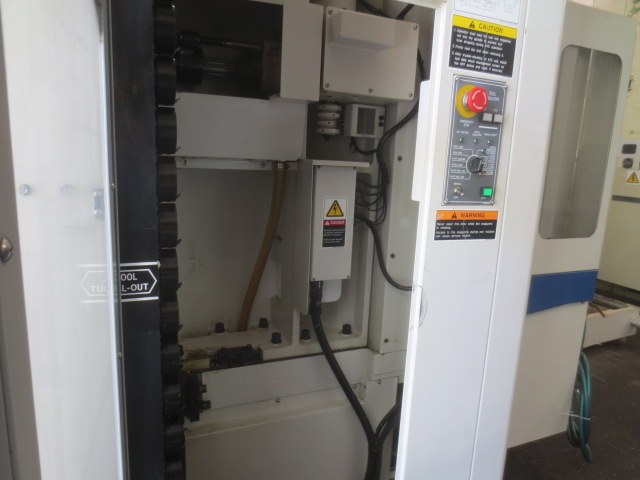

DoosanDHP-40016162http://www.machinetools247.com/images/machines/16162-Doosan DHP-400 c.jpg

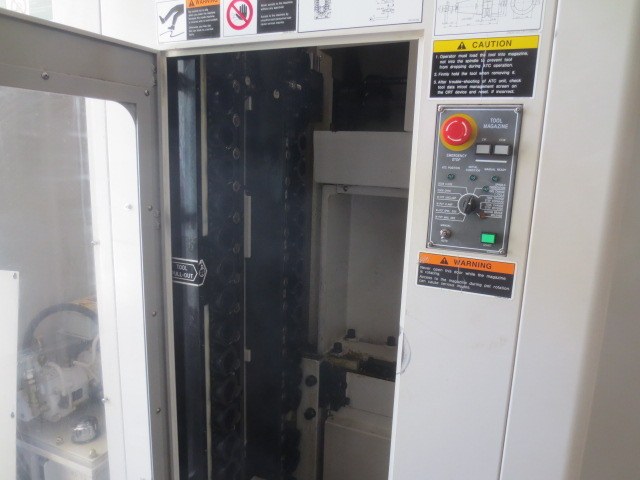

DoosanDHP-40016162http://www.machinetools247.com/images/machines/16162-Doosan DHP-400 d.jpg

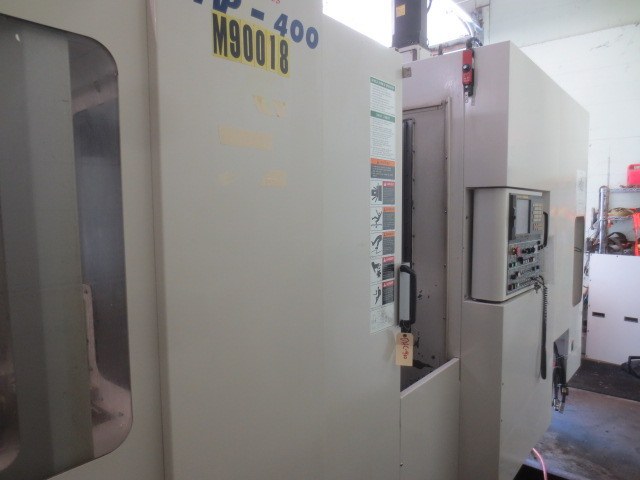

DoosanDHP-40016162http://www.machinetools247.com/images/machines/16162-Doosan DHP-400 e.jpg
