Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
159982015MazakQuick Turn Nexus-350 MY IIMazatrol Matrix

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide29.5" / 20.87"
 Maximum Turning Diameter / Maximum Turning Length16.53" / 86.6"
 Distance Between Centers89"
Spindle:Spindle Speeds Minimum - Maximum6 - 3,300 RPM
 Spindle Bore / Bar Capacity / Nose4.4" / 4" / A2-11
 Main Motor (30 min / continuous)40 / 30 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel10.125"
 Z-Axis Travel78.25"
 Y-Axis Travel2.95" +/-
Rotary Tools:Rotary Tool Speed40 - 4,000 RPM
 Rotary Tool Motor (30 min. / continuous)10 / 7.5 HP
Tailstock:Stroke of Body / Quill73.4" / 4.1"
 Quill Diameter / Taper3.94" / MT # 5
Rapids:Rapid Traverse (X / Z / Y)1,181 / 945 / 591 IPM
Dimensions:Floor Space (L x W x H)195" x 81" x 80"
 Weight (approx.)19,000 Lbs

 Equipped With
Additional Info.:12" 3-Jaw Hydraulic Chuck
 Chip Conveyor
 Conversational Programming
 Automatic Tool Eye
 Inverse Time
 Polar Cooridate Rotation
 EIA / ISO Input
 PCMCMIA Interface
 EIA Helical Tap Cycle
 Coolant Through Milling Head
 Two (2) USB Ports
 Programmable Tailstock
 Scaling and Cooridate Rotation
 3D Compensation
 Floppy Drive
 SMW Programmable Steady Rest
 MT Conect Prep
 Mazak Tornado Boring Cycle


Click Here To Print Quote - 15998

Click Here To Email Quote Request - 15998

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

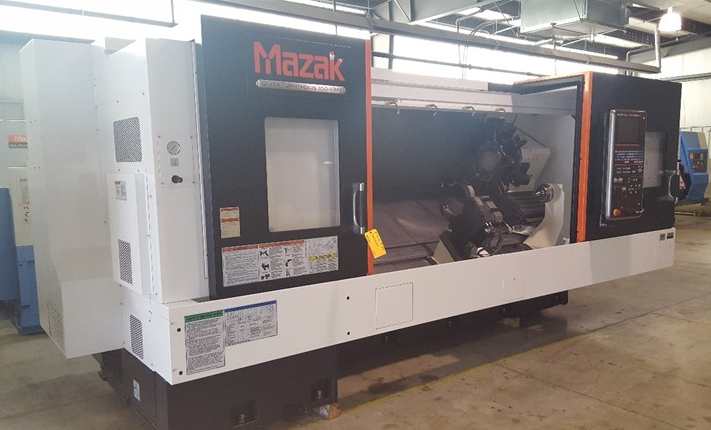

MazakQuick Turn Nexus-350 MY II15998http://www.machinetools247.com/images/machines/15998-Mazak Quick Turn Nexus-350 MY II.jpg

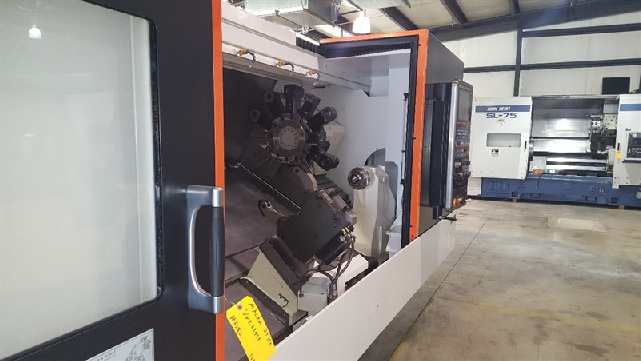

MazakQuick Turn Nexus-350 MY II15998http://www.machinetools247.com/images/machines/15998-Mazak Quick Turn Nexus-350 MY II 1.jpg

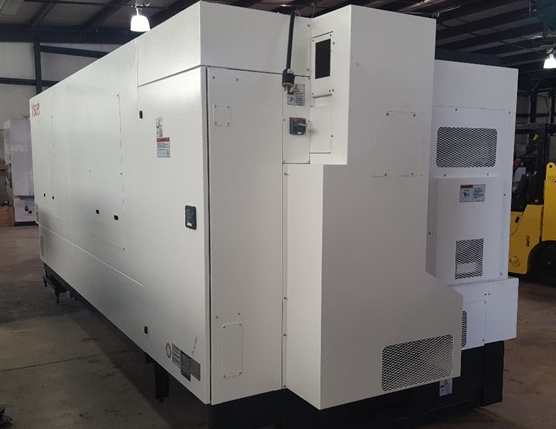

MazakQuick Turn Nexus-350 MY II15998http://www.machinetools247.com/images/machines/15998-Mazak Quick Turn Nexus-350 MY II 2.jpg

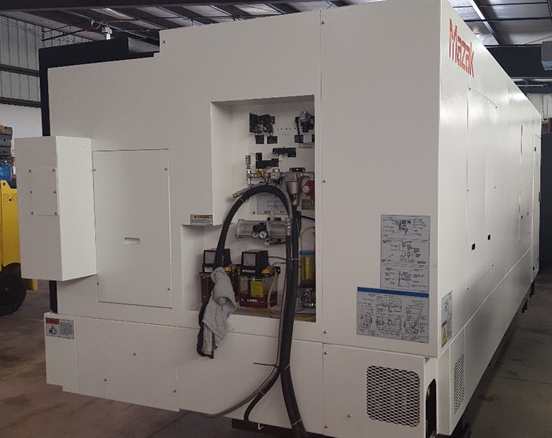

MazakQuick Turn Nexus-350 MY II15998http://www.machinetools247.com/images/machines/15998-Mazak Quick Turn Nexus-350 MY II 3.jpg

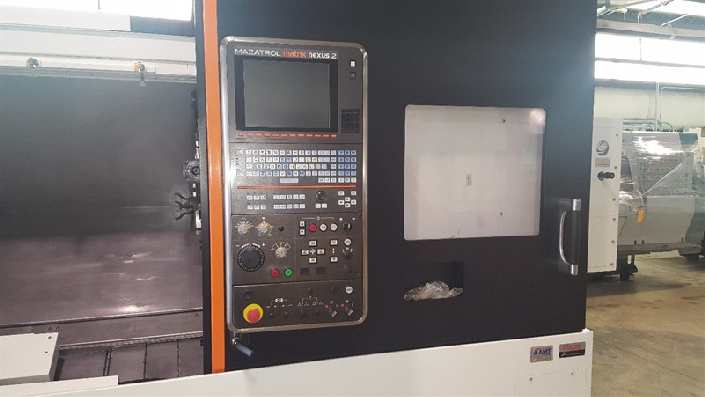

MazakQuick Turn Nexus-350 MY II15998http://www.machinetools247.com/images/machines/15998-Mazak Quick Turn Nexus-350 MY II 4.jpg

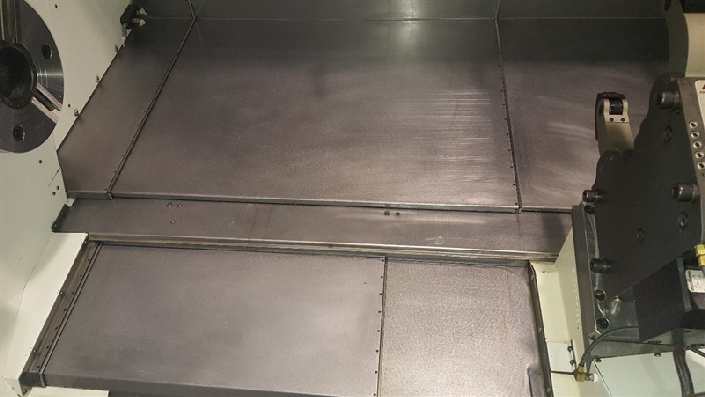

MazakQuick Turn Nexus-350 MY II15998http://www.machinetools247.com/images/machines/15998-Mazak Quick Turn Nexus-350 MY II 5.jpg

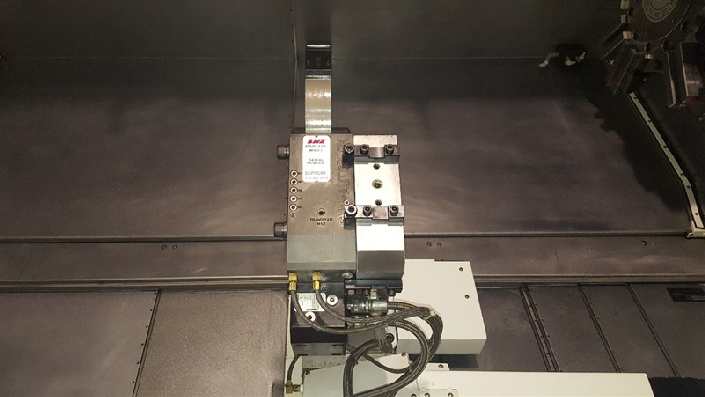

MazakQuick Turn Nexus-350 MY II15998http://www.machinetools247.com/images/machines/15998-Mazak Quick Turn Nexus-350 MY II 6.jpg

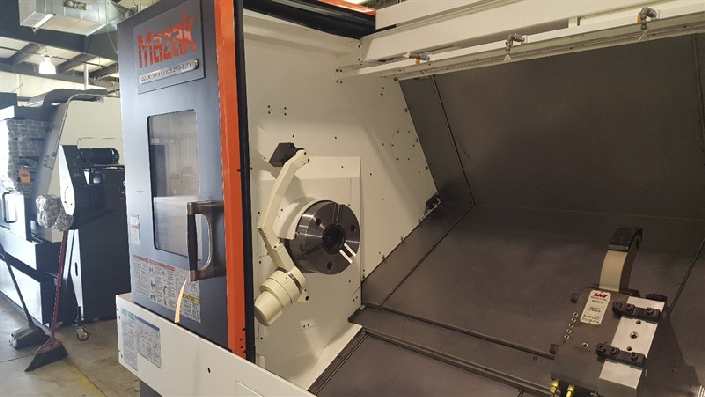

MazakQuick Turn Nexus-350 MY II15998http://www.machinetools247.com/images/machines/15998-Mazak Quick Turn Nexus-350 MY II 7.jpg
MazakQuick Turn Nexus-350 MY II15998http://www.machinetools247.com/images/machines/15998-Mazak Quick Turn Nexus-350 MY II 8.jpg

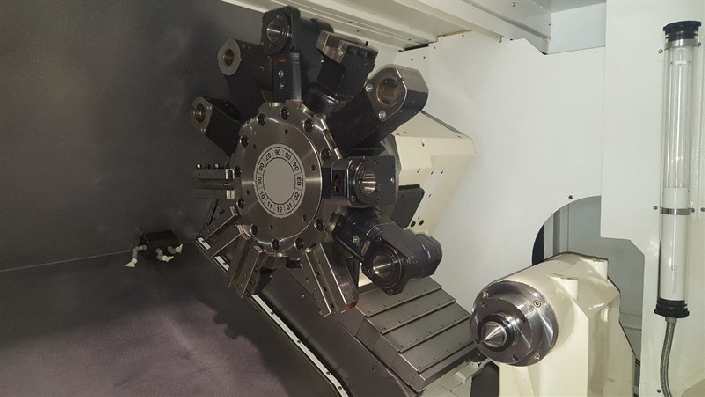

MazakQuick Turn Nexus-350 MY II15998http://www.machinetools247.com/images/machines/15998-Mazak Quick Turn Nexus-350 MY II 9.jpg

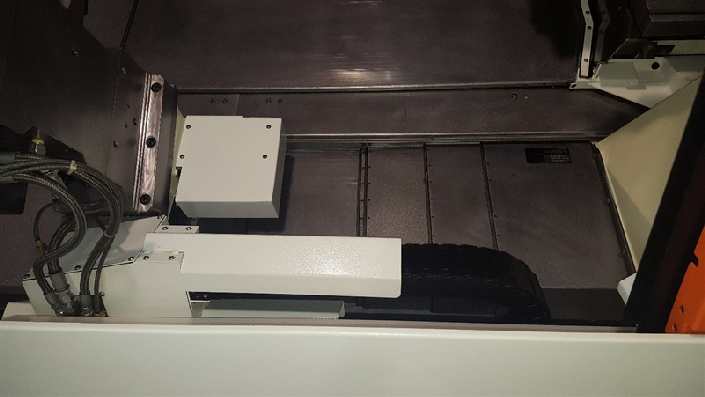

MazakQuick Turn Nexus-350 MY II15998http://www.machinetools247.com/images/machines/15998-Mazak Quick Turn Nexus-350 MY II 10.jpg

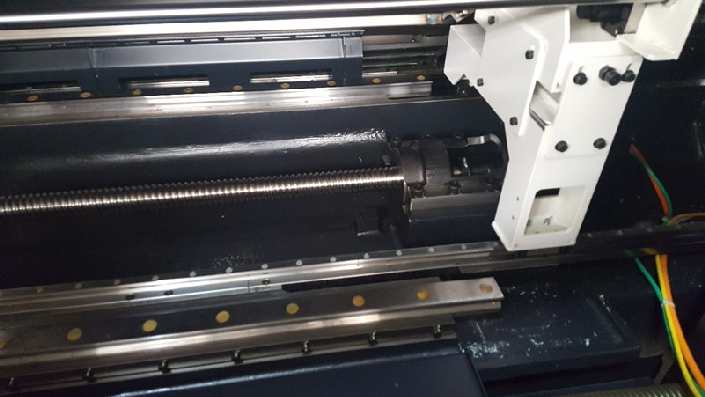

MazakQuick Turn Nexus-350 MY II15998http://www.machinetools247.com/images/machines/15998-Mazak Quick Turn Nexus-350 MY II 11.jpg
