Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
159932016OkumaLB-4000 EX BB II Space TurnOSP-P200LA

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide26.38" / 22.6"
 Maximum Turning Diameter / Maximum Turning Length18.90" / 59.05"
 Distance Between Centers62"
Spindle:Spindle Speeds Minimum - Maximum30 - 3,000 RPM
 Spindle Bore / Bar Capacity / Nose5.5" / 4.41" / A2-11
 Main Motor (30 min / continuous)40 / 30 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel11.81"
 Z-Axis Travel60"
Tailstock:Stroke of Body / Quill55.71" / 4.72"
 Quill Diameter / Taper3.54" / MT #5
Rapids:Rapid Traverse (X / Z )984 / 1,181 IPM
Dimensions:Floor Space (L x W x H)140" x 75" x 77"
 Weight (approx.)14,000 Lbs

 Equipped With
Additional Info.:RS-232 Port
 Touch Setter
 Servo Driven Tailstock with Live Quill
 Chip Conveyor
 HI-G Control
 Servo Driven Turret (prepped for 1000 psi)
 Tool Life Management
 Tool Wear Compensation
 NC Torque Limiter
 Turret Postion Compensation
 Cycle Time Calculation
 Auto Chamfer
 User Task II
 Lap 4
 Nose Radius B
 DNC Port
 NC Tailstock
 Load Monitor
 Mac Man
 3D Animation
 Servo Link Spindle
 Windows Based Touch Screen with Stylus
 Hydraulic Oil Temperature Regulator
 Spindle Orientation
 Spare M-Codes
 Spindle Chiller Unit
Note:2015 Machine, Installed New in 2016


Click Here To Print Quote - 15993

Click Here To Email Quote Request - 15993

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

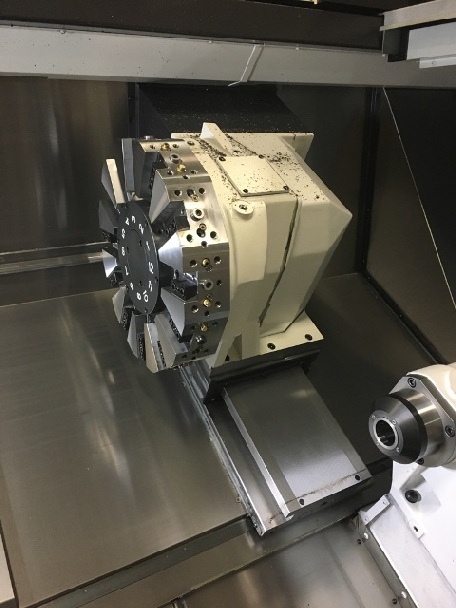

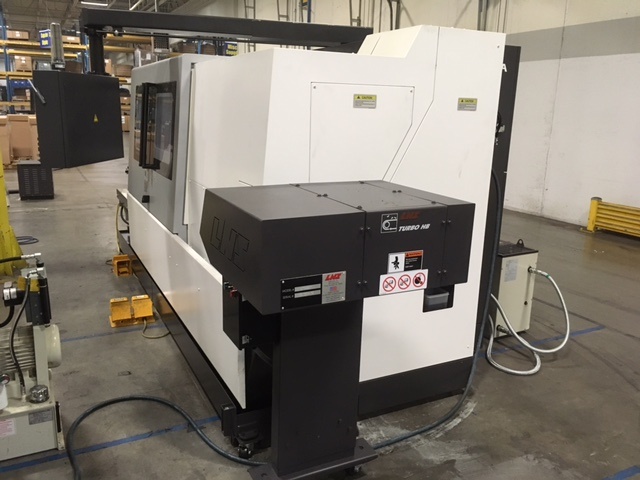

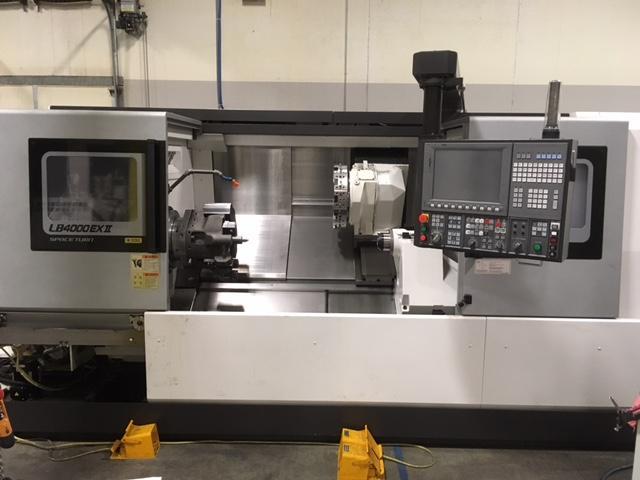

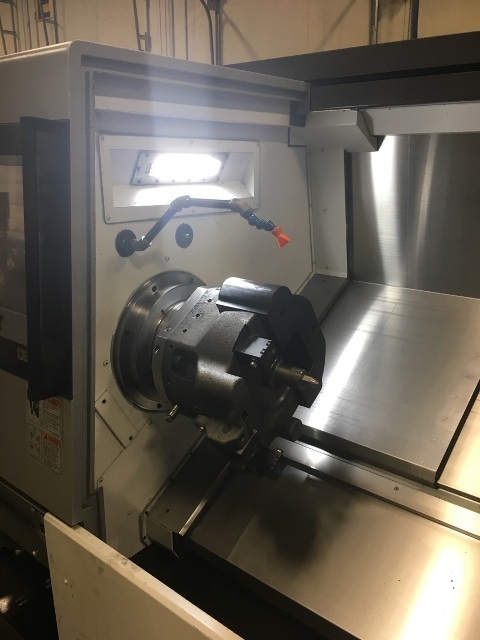

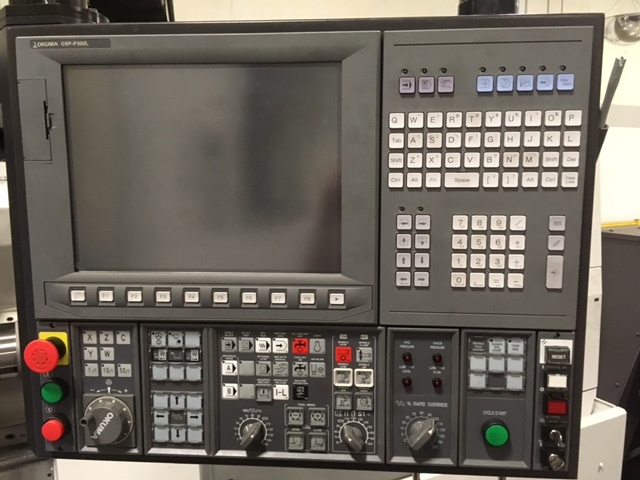

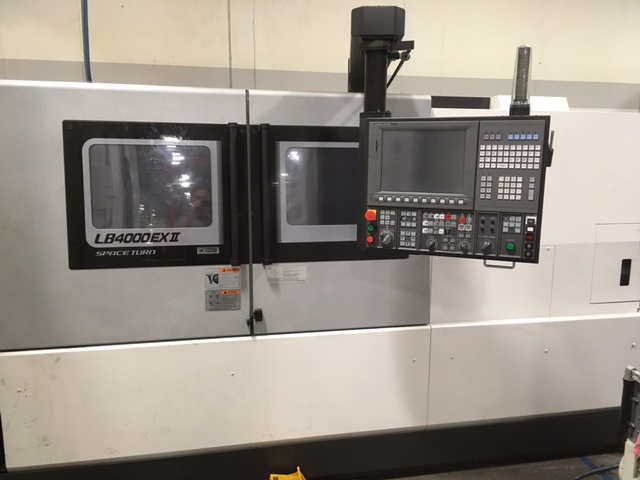

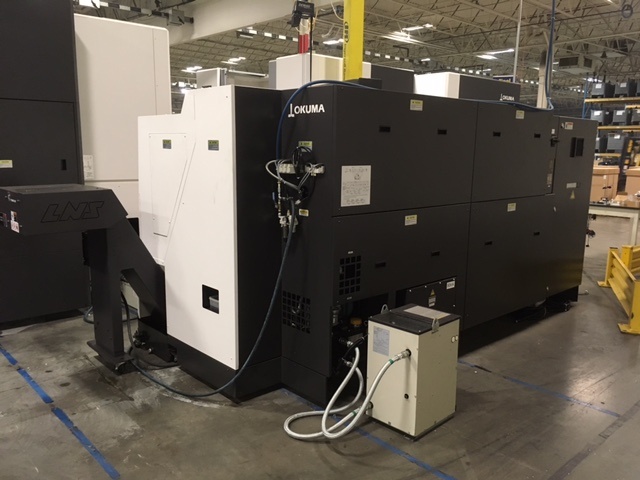

OkumaLB-4000 EX BB II Space Turn15993http://www.machinetools247.com/images/machines/15993-Okuma LB-4000 EX BB II Space Turn.jpg
OkumaLB-4000 EX BB II Space Turn15993http://www.machinetools247.com/images/machines/15993-Okuma LB-4000 EX BB II Space Turn 1.jpg
OkumaLB-4000 EX BB II Space Turn15993http://www.machinetools247.com/images/machines/15993-Okuma LB-4000 EX BB II Space Turn 2.jpg
OkumaLB-4000 EX BB II Space Turn15993http://www.machinetools247.com/images/machines/15993-Okuma LB-4000 EX BB II Space Turn 3.jpg
OkumaLB-4000 EX BB II Space Turn15993http://www.machinetools247.com/images/machines/15993-Okuma LB-4000 EX BB II Space Turn 4.jpg
OkumaLB-4000 EX BB II Space Turn15993http://www.machinetools247.com/images/machines/15993-Okuma LB-4000 EX BB II Space Turn 5.jpg
OkumaLB-4000 EX BB II Space Turn15993http://www.machinetools247.com/images/machines/15993-Okuma LB-4000 EX BB II Space Turn 6.jpg
