Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

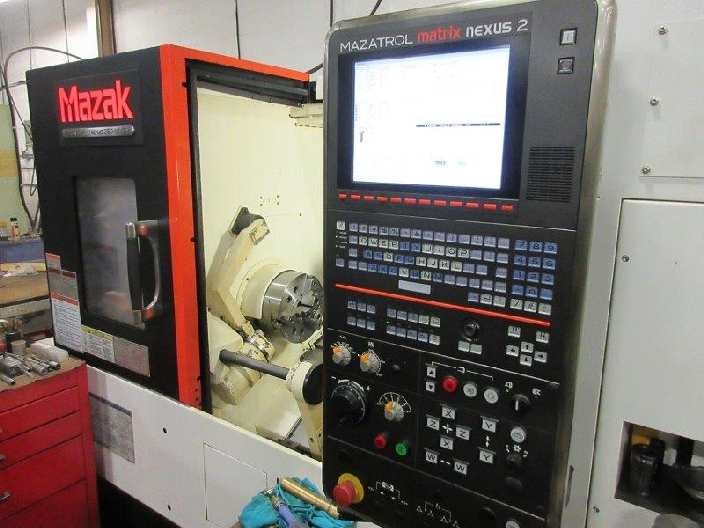

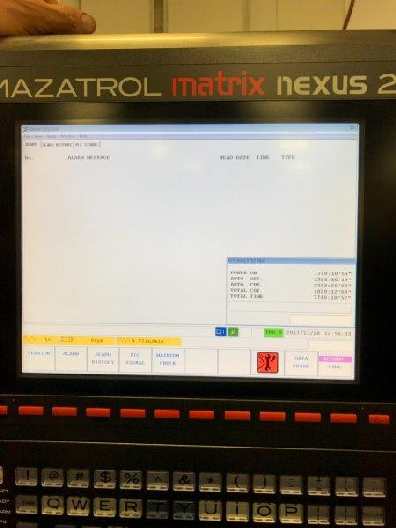

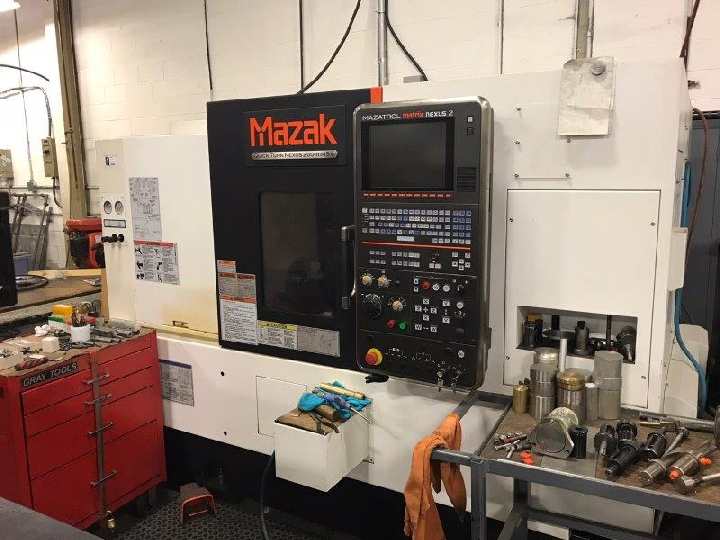

159882013MazakQuick Turn Nexus-250 II MSYMazatrol Matrix II

 DescriptionSpec Values
Capacity:Maximum Swing / Swing Over Cross Slide28.5" / 16.04"
 Maximum Turning Diameter / Length14.78" / 19.858"
Main Spindle:Speeds40 - 4,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose3.46" / 3" / A2-8
 Motor (30 min / continuous)35 / 30 HP
Sub Spindle:Speeds60 - 6,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose1.22" / .85" / A2-6
 Motor (30 min / continuous)15 / 10 HP

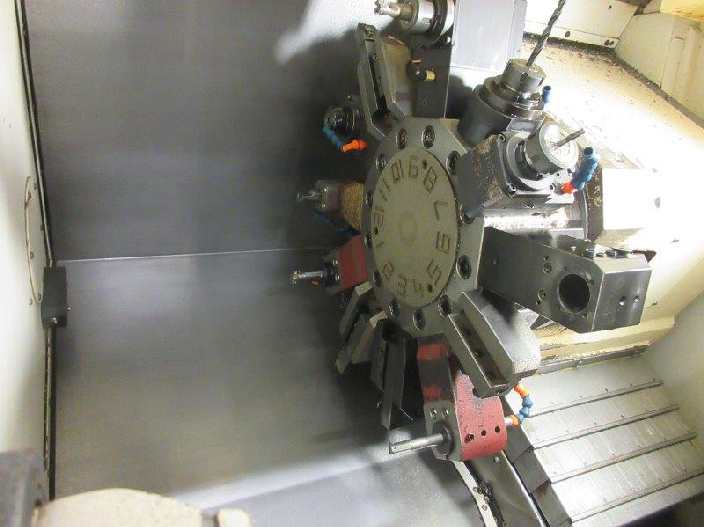

Turret:Number of Positions12 Positions - All Live
Travels:X-Axis Travel9"
 Z-Axis Travel22.63"
 Y-Axis Travel+/- 2"
 B-Axis Travel (sub-spindle)22.701"
 C-Axis Indexing360,000°
Rotary Tools:Rotary Tool Speed0 - 4,500 RPM
 Rotary Tool Motor7.5 HP
Rapids:Rapid Traverse (X, Z & B / Y )1,181 / 826 IPM
Dimensions:Floor Space (L x W x H)119" x 75" x 75"
 Weight (approx)12,000 Lbs

 Equipped With

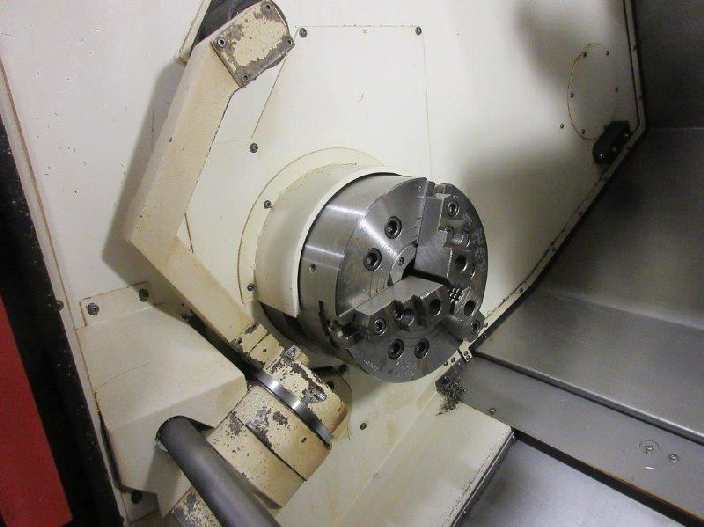

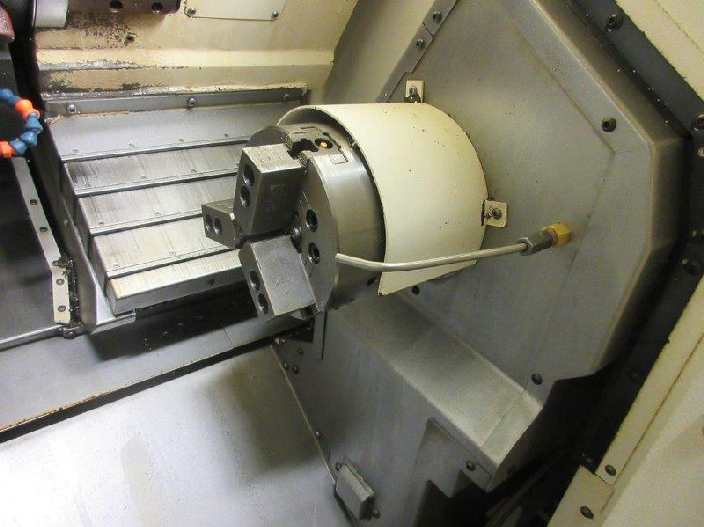

Additional Info.:10" 3-Jaw Hydraulic Chuck Main Spindle, 6" 3-Jaw Hydraulic Chuck Sub
 Automatic Tool Eye
 Chip Conveyor
 RS-232 Interface
 Synchronous Tapping
 Turret Air Blast
 Live Holders
 Parts Catcher
Note:Very Low Hours


Click Here To Print Quote - 15988

Click Here To Email Quote Request - 15988

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos
MazakQuick Turn Nexus-250 II MSY15988http://www.machinetools247.com/images/machines/15988-Mazak Quick Turn Nexus-250 MSY.jpg
MazakQuick Turn Nexus-250 II MSY15988http://www.machinetools247.com/images/machines/15988-Mazak Quick Turn Nexus-250 MSY 1.jpg
MazakQuick Turn Nexus-250 II MSY15988http://www.machinetools247.com/images/machines/15988-Mazak Quick Turn Nexus-250 MSY 2.jpg
MazakQuick Turn Nexus-250 II MSY15988http://www.machinetools247.com/images/machines/15988-Mazak Quick Turn Nexus-250 MSY 3.jpg
MazakQuick Turn Nexus-250 II MSY15988http://www.machinetools247.com/images/machines/15988-Mazak Quick Turn Nexus-250 MSY 4.jpg
MazakQuick Turn Nexus-250 II MSY15988http://www.machinetools247.com/images/machines/15988-Mazak Quick Turn Nexus-250 MSY 4.jpg
MazakQuick Turn Nexus-250 II MSY15988http://www.machinetools247.com/images/machines/15988-Mazak Quick Turn Nexus-250 MSY 5.jpg
MazakQuick Turn Nexus-250 II MSY15988http://www.machinetools247.com/images/machines/15988-Mazak Quick Turn Nexus-250 MSY 6.jpg
