Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
159702015DoosanNHM-5000Fanuc 31iB

 DescriptionSpec Values
Pallet:Pallet Size (2 Pallets)19.7" x 19.7"
 Pallet Indexing / Table Load360,000° / 1,764 Lbs
Travels:X-Axis Travel31.5"
 Y-Axis Travel27.6"
 Z-Axis Travel33.5"
Spindle:Spindle Speeds Minimum - Maximum50 - 8,000 RPM
 Spindle Taper50 Taper
 Main Motor (30 min / continuous)35 / 22 HP
Tool Changer:Tool Changer Positions90 ATC
 Tool Change Time (Tool-to-Tool / Chip-to-Chip)2 / 7 Sec.
Rapids:Rapid Traverse (X, Y & Z )1,181 IPM
 Feed Rate590 IPM
Dimensions:Floor Space (L x W x H)215" x 113" x 132"
 Weight (approx.)41,000 Lbs

 Equipped With
Additional Info.:Coolant Through Spindle (213 psi)
 Chip Conveyor
 Adaptive Feed RateControl
 Remote Jog Handle
 High Torque Geared Head
 Spindle Chiller
 Servo Driven Pallet Changer
 Renishaw Probe Ready
 Spindle Orientation
 Rigid Tapping
 Chip Augers
 Air Blast Trhough Spindle
 Remote Jog Handle
 Edge Location Feature

Click Here To Print Quote - 15970

Click Here To Email Quote Request - 15970

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.


ManufacturerModelMachine IDMachine Photos

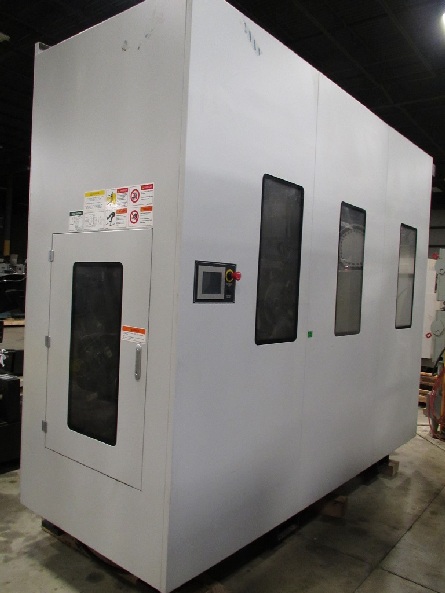

DoosanNHM-500015970 NHM-5000.jpg

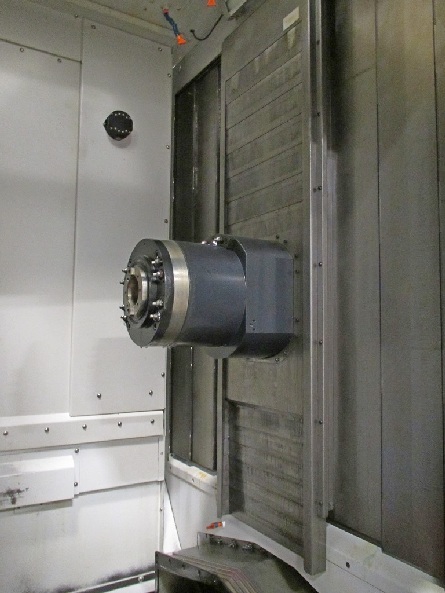

DoosanNHM-500015970 NHM-5000 a.jpg

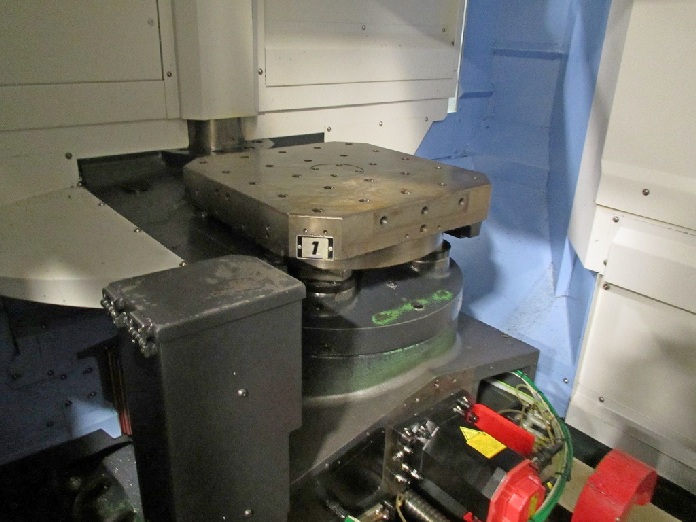

DoosanNHM-500015970 NHM-5000 b.jpg

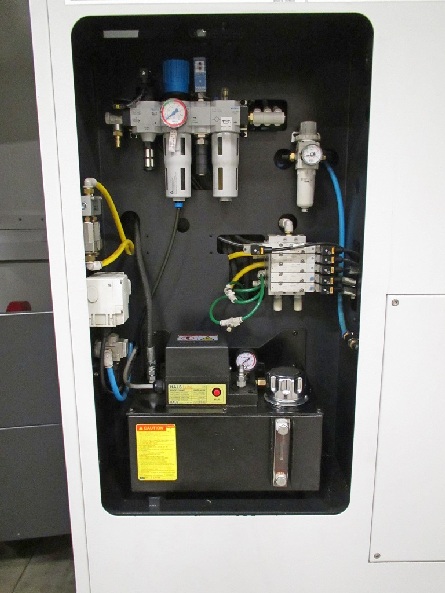

DoosanNHM-500015970 NHM-5000 c.jpg

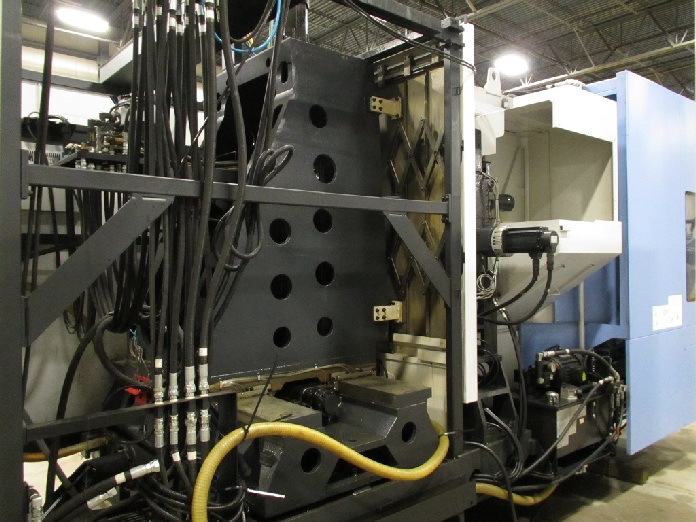

DoosanNHM-500015970 NHM-5000 d.jpg

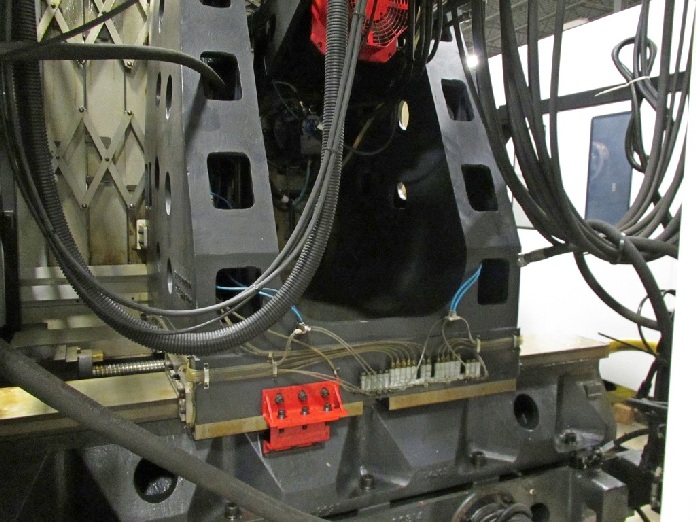

DoosanNHM-500015970 NHM-5000 e.jpg

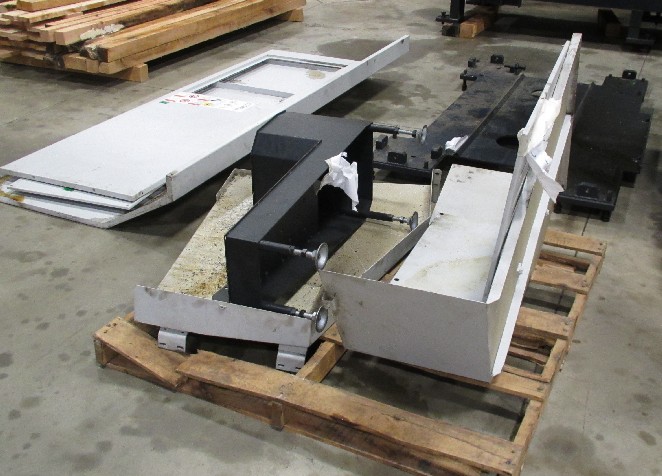

DoosanNHM-500015970 NHM-5000 f.jpg

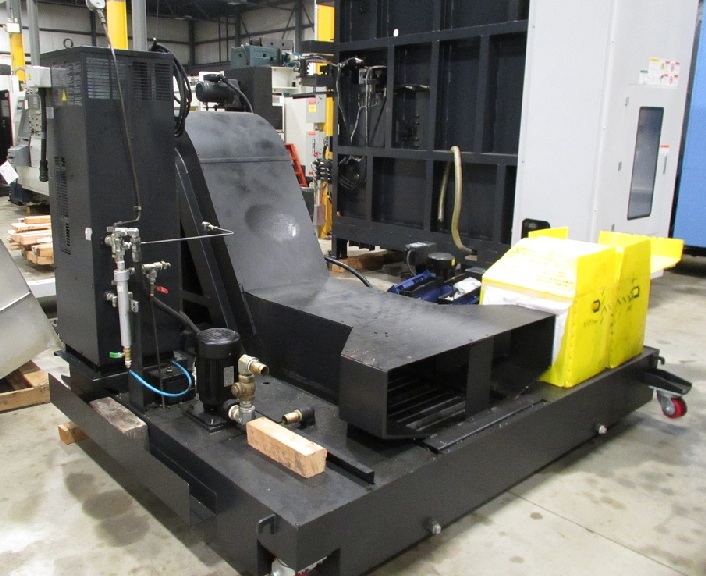

DoosanNHM-500015970 NHM-5000 g.jpg

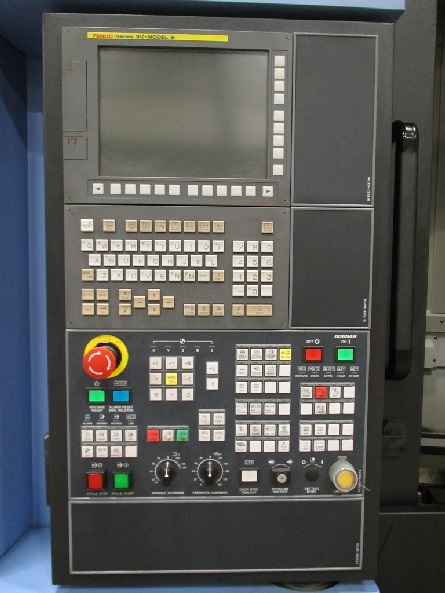

DoosanNHM-500015970 NHM-5000 h.jpg
