Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
159022005MazakQuick Turn Nexus-250 MSMazatrol Fusion 640 T

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide26.57" / 16"
 Maximum Turning Diameter / Maximum Turning Length14.75" / 21.28"
Main Spindle:Speeds40 - 4,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose3.46" / 3.1" / A2-8
 Motor (30 min. / cont.)35 / 25 HP
Sub-Spindle:Speeds60 - 6,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose / Indexing2.46 / 2.07" / A2-5
 Motor (30 min. / cont.)10 / 15 HP
Turret:Number of Positions (al can be live)12 Positions
Travels:X-Axis Travel9.05"
 Z-Axis Travel22.63"
 B-Axis Travel (sub-spindle)23"
 C-Indexing360,000°
Rotary Tools:Rotary Tool Speed4,500 RPM
 Rotary Tool Motor7.5 HP
Rapids:Rapid Traverse (X, Y / Z)1,181 / 1,290 IPM
Dimensions:Floor Space (L x W x H)92" x 69" x 80"
 Weight (approx)12,000 Lbs

 Equipped With
Additional Info.:10" 3-Jaw Hydraulic Chuck Main, Collet Chuck Sub
 Color Monitor
 Automatic Tool Eye

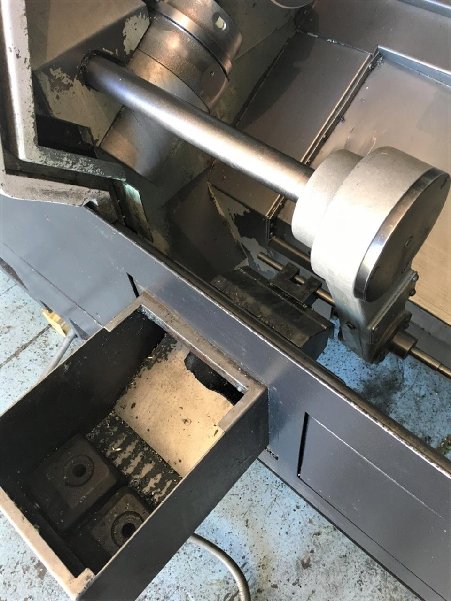

 Parts Catcher

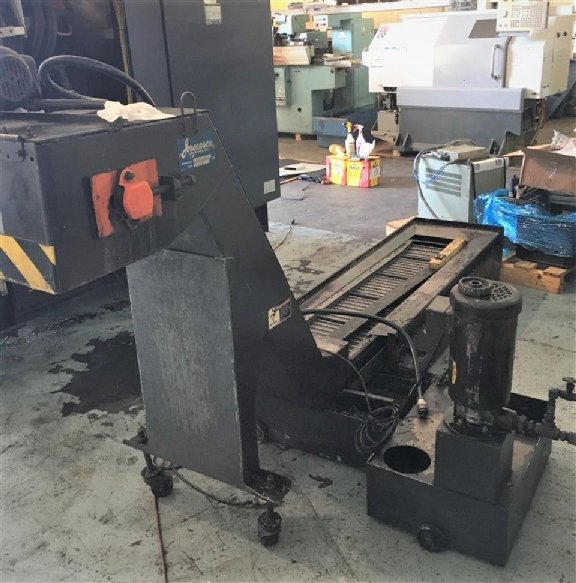

 Chip Conveyor
 Background Tool Path Check
 Tool Wear Compensation
 Tool Breakage Recovery System
 Milling Spindle Synchronous Tapping
 EIA / ISO
 Automatic Tool Eye


Click Here To Print Quote - 15902

Click Here To Email Quote Request - 15902

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

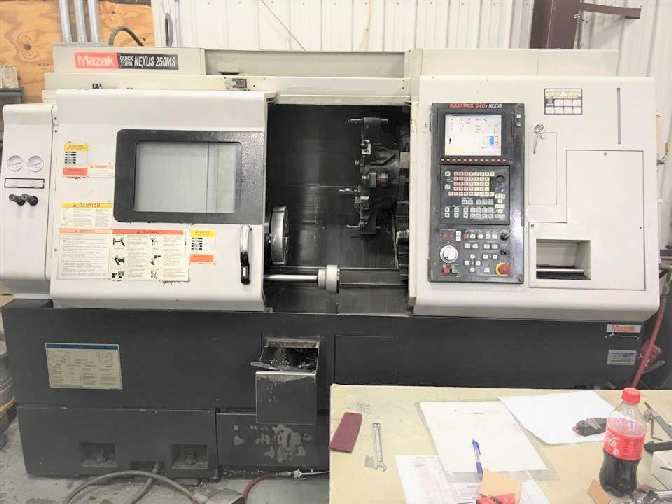

MazakQuick Turn Nexus-250 MS15902http://www.machinetools247.com/images/machines/15902-Mazak Quick Turn Nexus-250 MS.jpg

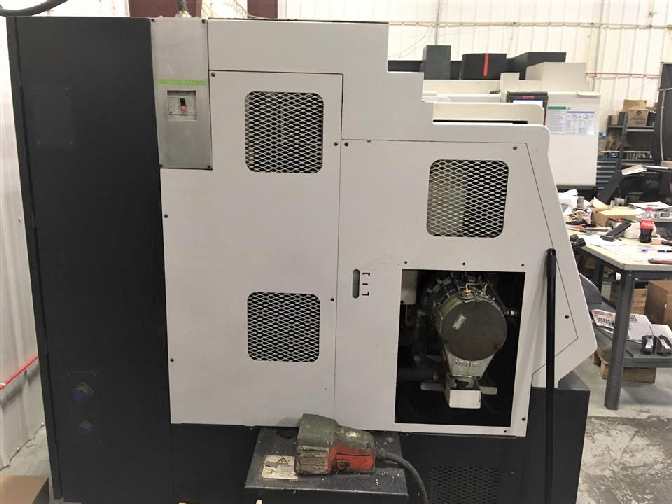

MazakQuick Turn Nexus-250 MS15902http://www.machinetools247.com/images/machines/15902-Mazak Quick Turn Nexus-250 MS 1.jpg

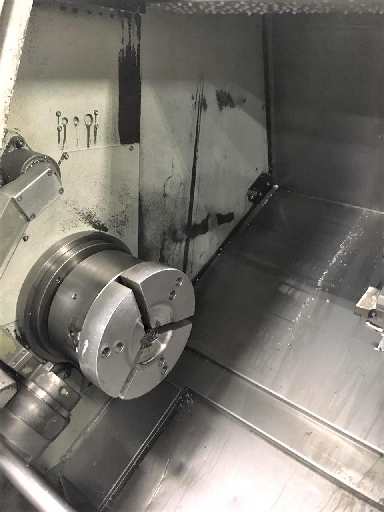

MazakQuick Turn Nexus-250 MS15902http://www.machinetools247.com/images/machines/15902-Mazak Quick Turn Nexus-250 MS 2.jpg

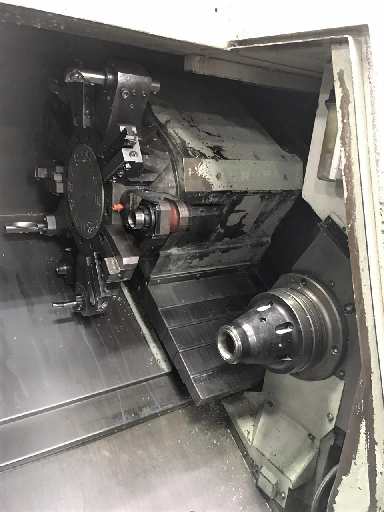

MazakQuick Turn Nexus-250 MS15902http://www.machinetools247.com/images/machines/15902-Mazak Quick Turn Nexus-250 MS 3.jpg
MazakQuick Turn Nexus-250 MS15902http://www.machinetools247.com/images/machines/15902-Mazak Quick Turn Nexus-250 MS 4.jpg

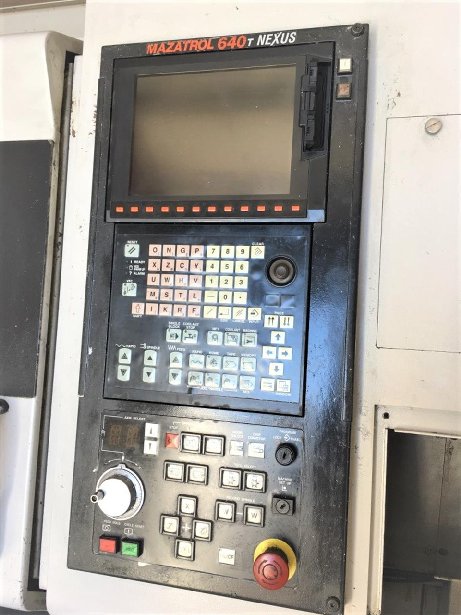

MazakQuick Turn Nexus-250 MS15902http://www.machinetools247.com/images/machines/15902-Mazak Quick Turn Nexus-250 MS 5.jpg
MazakQuick Turn Nexus-250 MS15902http://www.machinetools247.com/images/machines/15902-Mazak Quick Turn Nexus-250 MS 6.jpg
