Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
158322004OkumaLT-300 MOSP-E100L

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide21.65" / 18.9"
 Maximum Cutting Diameter13.78"
 Maximum Turning Length / Distance Between Spindles35" / 47.24
Main Spindle:Speeds380 - 5,000 RPM
 Spindle Bore / Bar Capacity / Spindle Nose2.65" / 2" / A2-6
 Main Motor (30 min / continuous)30 / 20 HP
Sub-Spindle:Speeds38 - 3,800 RPM
 Spindle Bore / Bar Cap / Spindle Nose3.15" / 2.5" / A2-8
 Motor (30 min. / cont.)30 / 20 HP
Turrets:Number of Positions (turret one / turret two) All Live12 / 12 Tools Each
Travels:X-Axis Travel (turret one / turret two)10.63" / 9.06"
 Z-Axis Travel (turret one / turret two)36.61" / 36.22"
 B-Axis Travel (sub-spindle)37.01"
Rotary Tools:Rotary Tool Speed100 - 4,500 RPM
 Rotary Tool Motor (turret one / turret two)9.5 / 7.5 HP
Rapids:Rapid Traverse (X / Z)1,181 / 1,574 IPM
 Sub Spindle Rapid Traverse1,574 IPM
Dimensions:Floor Space (L x W x H)140" x 90" x 94"
 Weight (approx)27,000 Lbs

 Equipped With
Additional Info.:10" 3-Jaw Hydraulic Chuck Main & Sub
 Bar Feed Interface
 Multi Tap Transformer
 Mac Man
 Synchronized Tapping
 Lap 4
 Chip Conveyor
 Milling on Both Turrets
 Robot Interface


Click Here To Print Quote - 15832

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

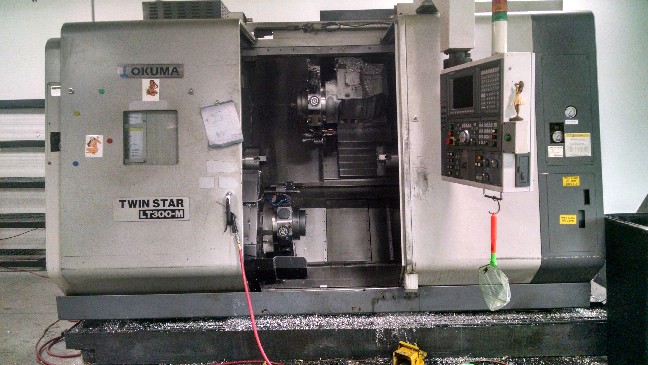

OkumaLT-300 M15832http://www.machinetools247.com/images/machines/15832-Okuma LT-300 M.jpg

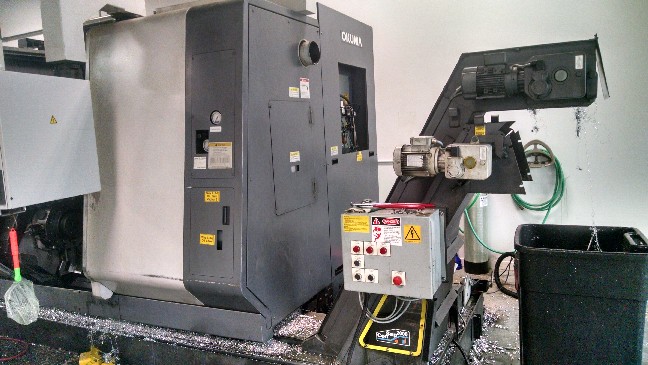

OkumaLT-300 M15832http://www.machinetools247.com/images/machines/15832-Okuma LT-300 M 1.jpg

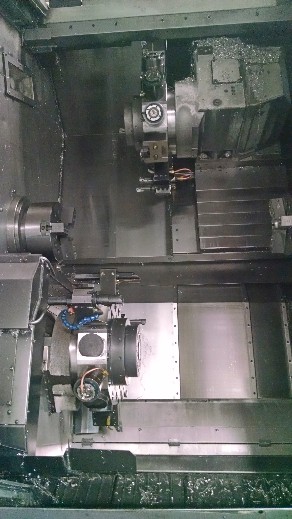

OkumaLT-300 M15832http://www.machinetools247.com/images/machines/15832-Okuma LT-300 M 2.jpg
