Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
158262004Mori-SeikiMT-2000Mori-Seiki MSX-501 (Fanuc 18iT)

 DescriptionSpec Values
Capacity:Swing Over Bed / Swing Over Saddle29.52" / 17.3"
 Maximum Turning Diameter Main / Sub21.6" / 11.2"
 Maximum Turning Length / Distance Between Spindles40.15" / 50.47"
Main Spindle:Speeds40 - 4,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose2.2" / 1.75" / A2-5
 Motor (30 min. / cont.)20 / 15 HP
Sub-Spindle:Speeds60 - 6,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose / Indexing2.2" / 1.75" / A2-5
 Motor (30 min. / cont.)15 / 10 HP
Turrets:Number of Positions - Turret / ATC12 Stations / 40 ATC
Travels:X-Axis Travel (main spindle)10.2"
 Z-Axis Travel31.3"
 Y-Axis Travel3.1" +/-
 B-Axis Travel (Gimble Head)120° +/-
 C-Indexing360,000°
Rotary Tools:Rotary Tool Speed6,000 RPM
 Rotary Tool Motor24.7 HP
Rapids:Rapid Traverse (X & Z, Y / C)945 / 629 / 300 IPM
 Sub Spindle Rapid Traverse787 IPM
Dimensions:Floor Space (L x W x H)150" x 114" x 105"
 Weight (approx)28,000 Lbs

 Equipped With
Additional Info.:Collet Chucks on Both Spindles
 Thread Cutting Retract
 Rigid Tapping Milling Head
 Cylindrical and Helical Interpolation
 MAPPS II Programming
 Polar Coordinate Interpolation
 Coolant Through Spindle
 Custom Macro B
 Chip Conveyor
 64 Tool Off-Sets
 Large Compliment of Tooling
 3-Jaw Hydraulic Chucks For Main and Sub


Click Here To Print Quote - 15826

Click Here to Email Request Quote

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes./span>




ManufacturerModelMachine IDMachine Photos

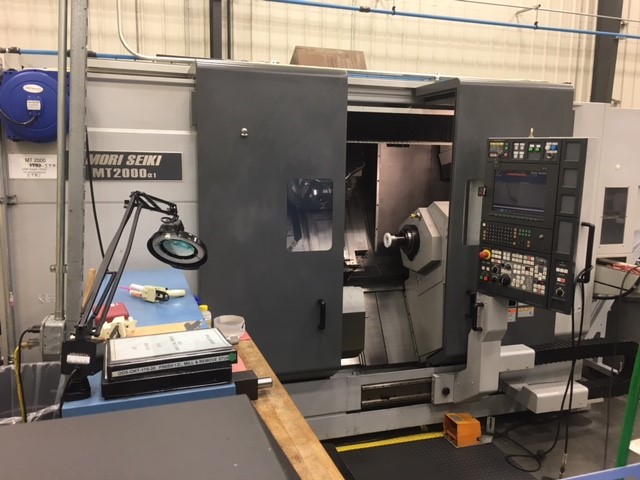

Mori-SeikiMT-200015826http://www.machinetools247.com/images/machines/15826-Mori-Seiki MT-2000.jpg

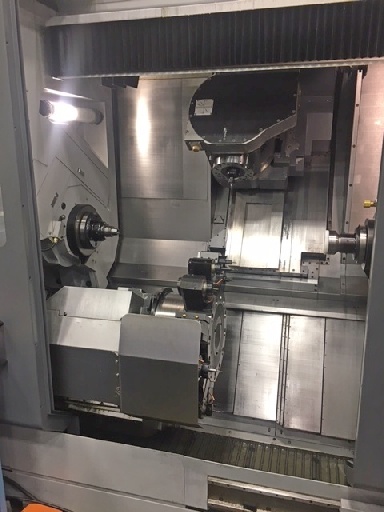

Mori-SeikiMT-200015826http://www.machinetools247.com/images/machines/15826-Mori-Seiki MT-2000 a.jpg

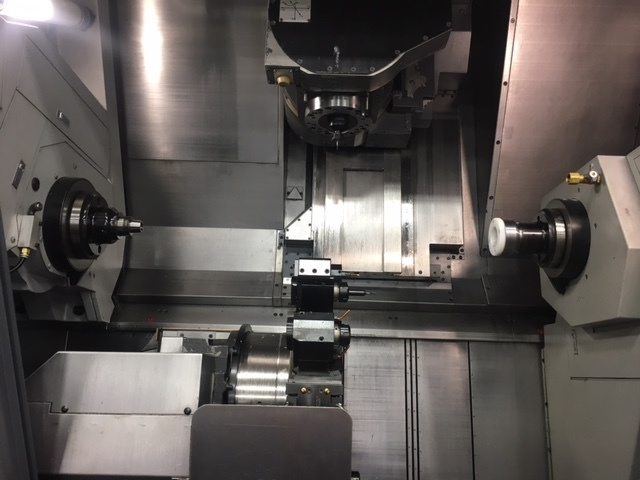

Mori-SeikiMT-200015826http://www.machinetools247.com/images/machines/15826-Mori-Seiki MT-2000 b.jpg

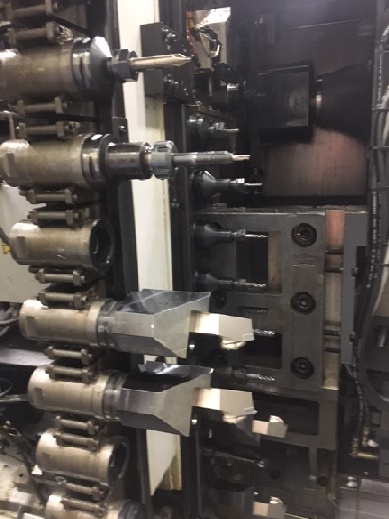

Mori-SeikiMT-200015826http://www.machinetools247.com/images/machines/15826-Mori-Seiki MT-2000 c.jpg

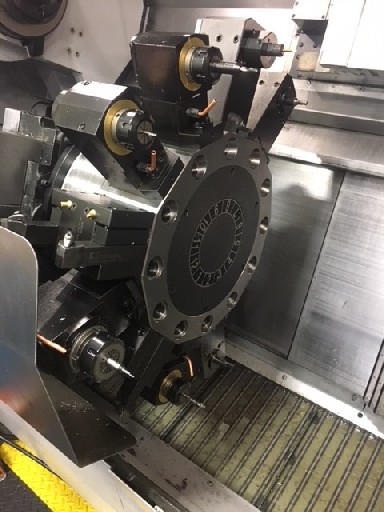

Mori-SeikiMT-200015826http://www.machinetools247.com/images/machines/15826-Mori-Seiki MT-2000 d.jpg

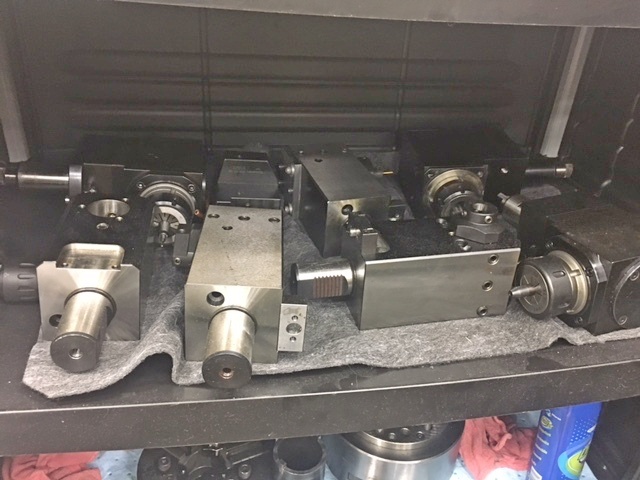

Mori-SeikiMT-200015826http://www.machinetools247.com/images/machines/15826-Mori-Seiki MT-2000 e.jpg
