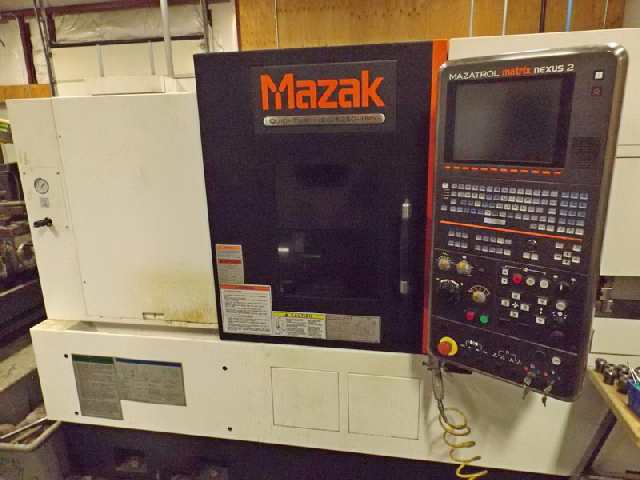

Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.


 DescriptionSpec Values
Capacity:Maximum Swing / Swing Over Cross Slide26.5" / 16.04"
 Maximum Turning Diameter / Length14.75" / 19.858"
Spindle:Speeds40 - 4,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose3.46" / 3" / A2-8
 Motor (30 min / continuous)35 / 30 HP
Turret:Number of Positions12 Positions - All Live
Travels:X-Axis Travel9"
 Z-Axis Travel22.75"
 Y-Axis Travel+/- 2"
 C-Axis Indexing360,000°
Rotary Tools:Rotary Tool Speed0 - 4,500 RPM
 Rotary Tool Motor7.5 HP
Tailstock:Stroke of Body / Quill20" / 4"
 Quill Diameter / Taper3.9" / # 4 MT
Rapids:Rapid Traverse (X, Z & B / Y )1,181 / 826 IPM
Dimensions:Floor Space145" x 80" x 80"
 Weight (approx)15,000 Lbs

 Equipped With

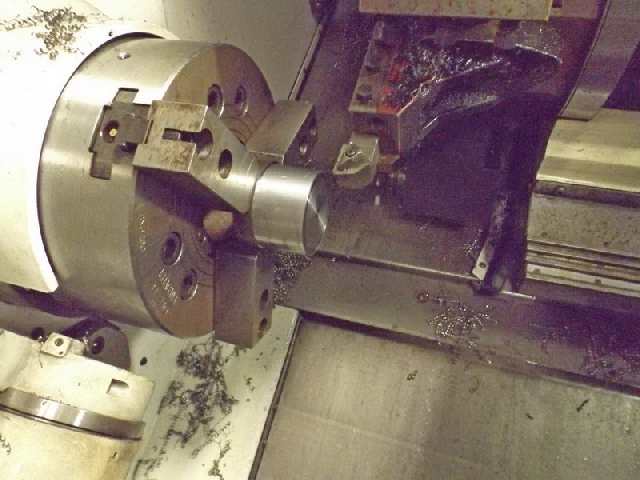

Additional Info.:10" 3-Jaw Hydraulic Chuck
 Automatic Tool Eye
 Chip Conveyor
 RS-232 Interface
 EIA / ISO Input Functions
 Standard Tool Holders
 Programmable Tailstock
 High Power Coolant System (230 psi)
 Thread Start Point Compensation
 Two (2) USB Ports
 Mazak Turbo Tapping
 Mazak Boring Tornado
 Absolute Positioning System
 User Macros
 Synchronous Tapping
