Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
157472004MazakSuper Quick Turn-250 MSYMazatrol Fusion 640 MT

 DescriptionSpec Values
Capacity:Maximum Swing / Swing Over Cross Slide20.67" / 16.54"
 Maximum Turning Diameter / Length11.81" / 22.63"
Main Spindle:Speeds35 - 4,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose2.99" / 2.6" / A2-6
 Motor (30 min / continuous)35 / 25 HP
Sub Spindle:Speeds35 - 5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose1.73" / 1.2" / A2-6
 Motor (30 min / continuous)10 / 7.5 HP
Turret:Number of Positions12 Positions / 6 Live
Travels:X-Axis Travel7.125"
 Z-Axis Travel24.5"
 B-Axis Travel (sub-spindle) / Indexing23.25" / 5°
 Y-Axis Travel+/- 3.9"
 C-Axis Indexing360,000°
Rotary Tools:Rotary Tool Speed100 - 4,500 RPM
 Rotary Tool Motor7.5 HP
Rapids:Rapid Traverse (X & Z / Y )1,181 / 472 IPM
Dimensions:Floor Space124" x 70" x 78"
 Weight (approx)13,000 Lbs

 Equipped With
Additional Info.:10" 3-Jaw Hydraulic Chuck Main, Collet Chuck on Sub
 Programmable Tool Eye
 Chip Conveyor
 Parts Catcher
 Sychronous Tapping
 Sub Spindle - 5 Degree Indexing
 EIA / ISO Input Function
 Helical Interpolation
 Floppy Drive
 1 Meg of Memory
 Parts Exit Conveyor
 SMW Space Saver 2100 Short Magazine Bar Feed
 Graphic Display


Click Here To Print Quote - 15747

Click Here To Email Quote Request - 15747

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

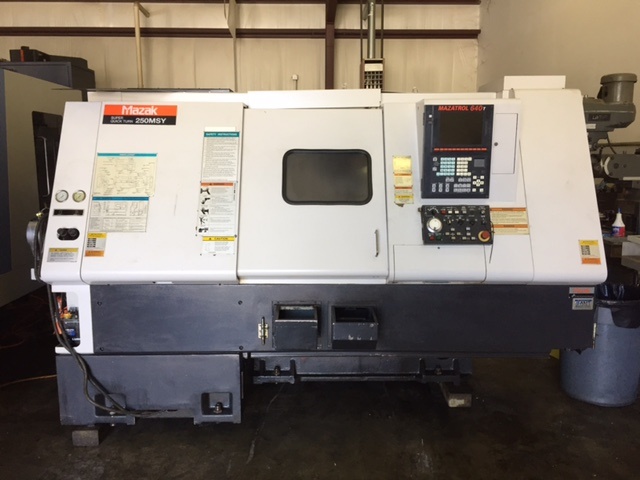

MazakSuper Quick Turn-250 MSY15747http://www.machinetools247.com/images/machines/15747-Mazak Super Quick Turn-250 MSY.jpg

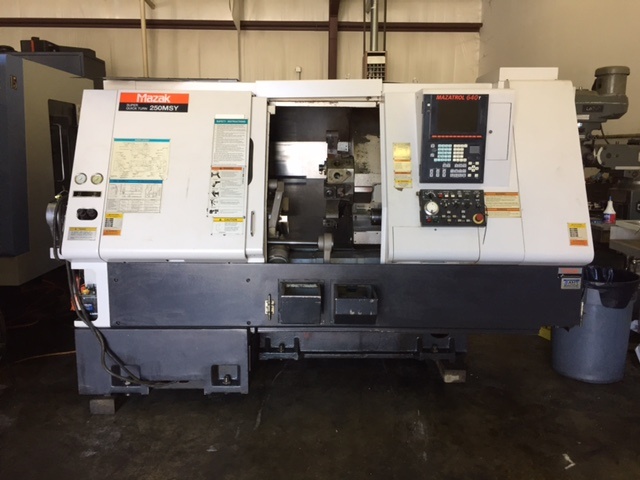

MazakSuper Quick Turn-250 MSY15747http://www.machinetools247.com/images/machines/15747-Mazak Super Quick Turn-250 MSY 1.jpg

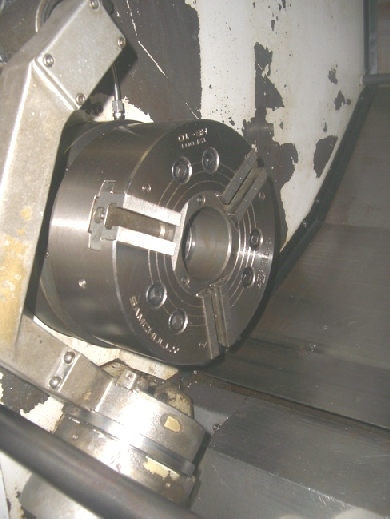

MazakSuper Quick Turn-250 MSY15747http://www.machinetools247.com/images/machines/15747-Mazak Super Quick Turn-250 MSY 2.jpg
MazakSuper Quick Turn-250 MSY15747http://www.machinetools247.com/images/machines/15747-Mazak Super Quick Turn-250 MSY 3.jpg

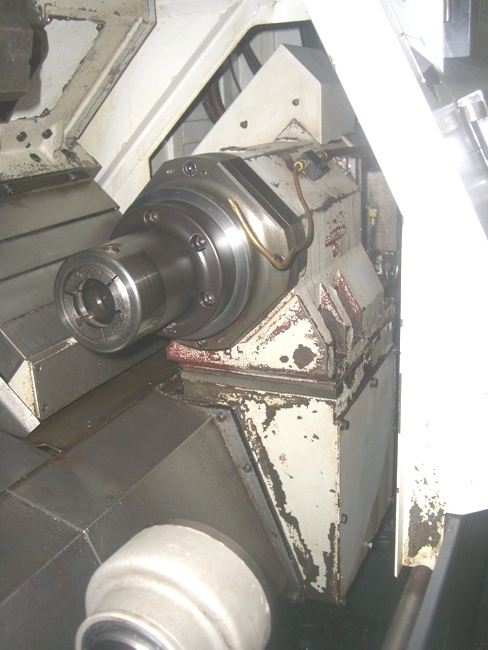

MazakSuper Quick Turn-250 MSY15747http://www.machinetools247.com/images/machines/15747-Mazak Super Quick Turn-250 MSY 4.jpg

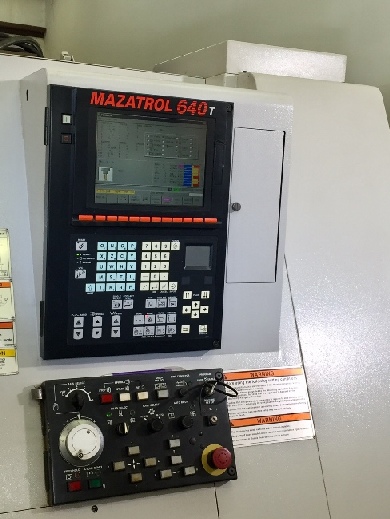

MazakSuper Quick Turn-250 MSY15747http://www.machinetools247.com/images/machines/15747-Mazak Super Quick Turn-250 MSY 5.jpg
