Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

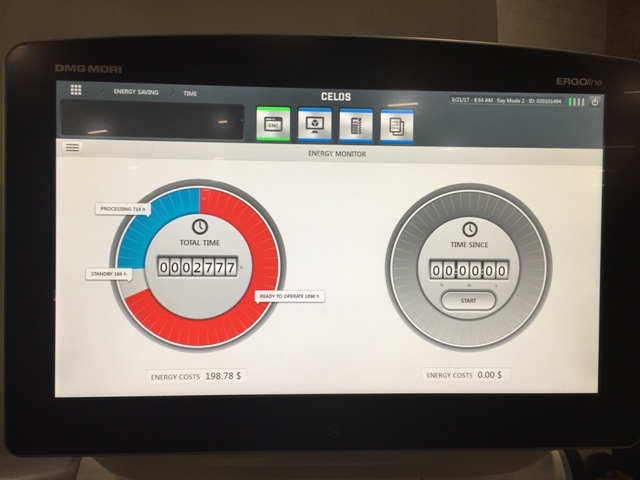

157212015DMG MoriNLX-2500 SY - 700Mori-Seiki Celos

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide36.37" / 29.72"
 Maximum Turning Diameter / Maximum Turning Length14.01" / 27.75"
 Distance Between Centers26"

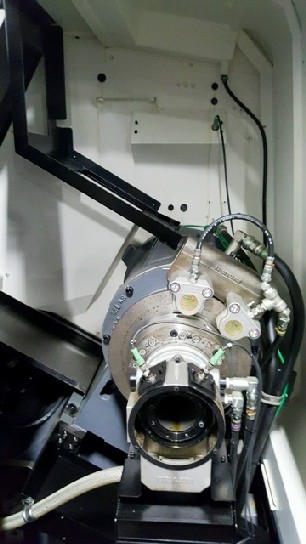

Main Spindle:Spindle Speeds Minimum - Maximum40 - 4,000 RPM
 Spindle Bore / Bar Capacity / Nose3.58" / 3.1" / A2-8
 Main Motor (30 min / continuous)25 / 22 HP
Sub-Spindle:Speeds60 - 6,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose / Indexing2.8" / 2.1" / A2-5
 Motor (30 min. / cont.)15 / 10 HP

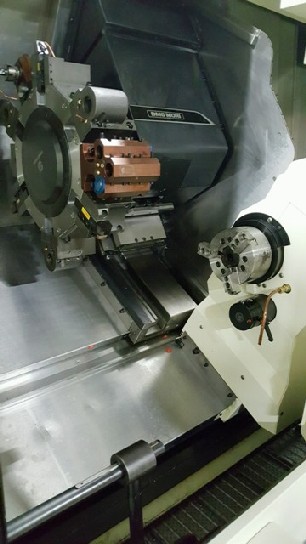

Turret:Number of Positions12 Stations
Travels:X-Axis Travel10.24"
 Z-Axis Travel27.7"
 Y-Axis Travel2" +/-
 B-Axis Travel (sub-spindle)28.90"
 C-Indexing360,000°
Rotary Tools:Rotary Tool Speed6,000 RPM
 Rotary Tool Motor (30 min. / continuous)15 / 10 HP
Rapids:Rapid Traverse (X & Z )1,181 IPM
 Feed Rate (X & Z )0.04 - 787 IPM
Dimensions:Floor Space (L x W x H)156" x 84" x 87"
 Weight (approx)13,000 Lbs

 Equipped With

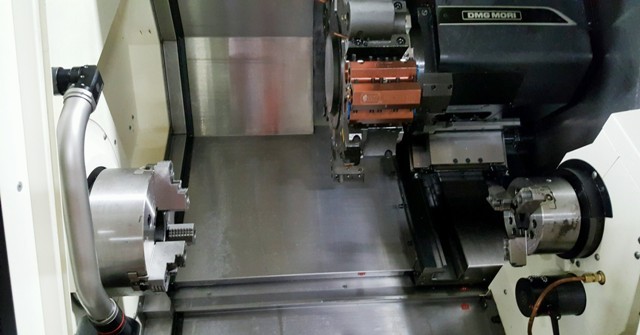

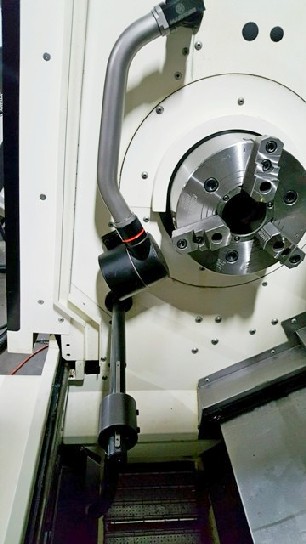

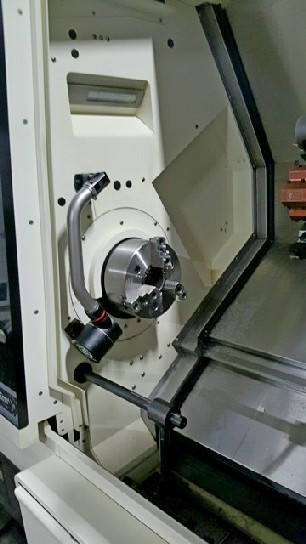

Additional Info.:10" 3-Jaw Hydraulic Chuck Main, 6" 3-Jaw Hydraulic Chuck Sub
 Parts Catcher
 Chip Conveyor
 Tool Presetter

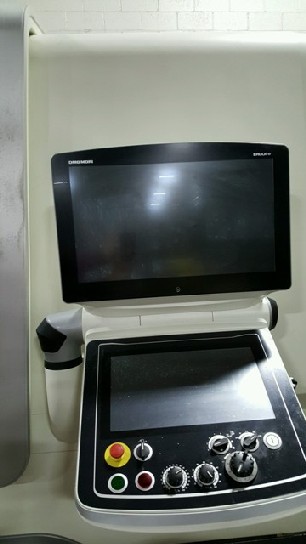

 21.5" Ergoline Color Multi-Touch Screen
 Bar Feed Interface
 ATS Collet Chucks For Main and Sub Spindles
 PCMCIA Interface
 MAPPS V Programming
Note:Under 800 Cutting Hours


Click Here To Print Quote - 15721

Click Here To Email Quote Request - 15721
