Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
157062014DMG MoriNLX-1500 SY - 500Mori-Seiki Celos

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide36.37" / 29.7"
 Maximum Turning Diameter / Maximum Turning Length15.1" / 20.2"
 Distance Between Centers26"
Main Spindle:Spindle Speeds Minimum - Maximum60 - 6,000 RPM
 Spindle Bore / Bar Capacity / Nose2.75" / 2" / A2-8
 Main Motor (30 min / continuous)15 / 10 HP
Sub-Spindle:Speeds45 - 4,500 RPM
 Spindle Bore / Bar Cap / Spindle Nose / Indexing1.7" / 1.2" / A2-5
 Motor (30 min. / cont.)10 / 7.5 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel10.24"
 Z-Axis Travel23.2"
 Y-Axis Travel3.9"
 B-Axis Travel24.6"
Rotary Tools:Rotary Tool Speed60 - 6,000 RPM
 Rotary Tool Motor (30 min. / continuous)7.5 HP
Rapids:Rapid Traverse (X & Z / Y)1,181 / 393 IPM
 Feed Rate (X & Z )0.04 - 787 IPM
Dimensions:Floor Space (L / With Chip Conveyor x W x H)111" / 141" x 82" x 85"
 Weight (approx)17,000 Lbs

 Equipped With
Additional Info.:Collet Chucks Main & Sub
 Chip Conveyor
 Tool Presetter

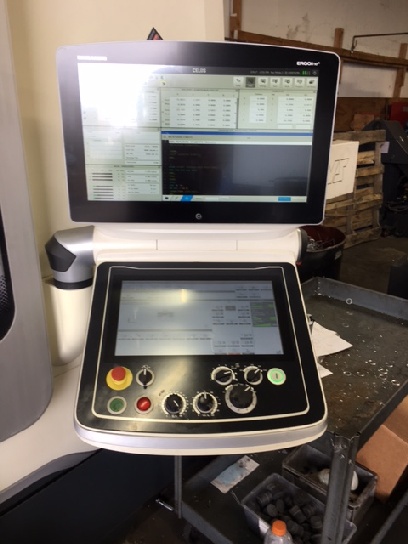

 21.5" Ergoline Color Multi-Touch Screen
 Bar Feed Interface
 PCMCIA Interface
 LNS Servo 3 Bar Feed
 Parts Catcher
 MAPPS V Programming
 Bar Feed Interface


Click Here To Print Quote - 15706

Click Here To Email Quote Request - 15706

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

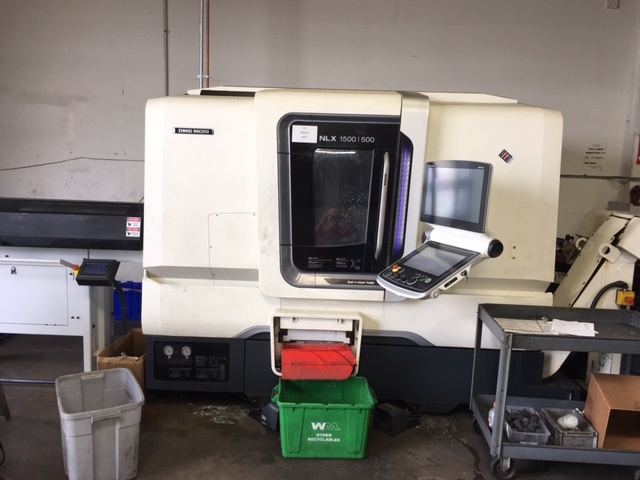

DMG MoriNLX-1500 SY - 50015706http://www.machinetools247.com/images/machines/15706-DMG Mori NLX-1500 SY - 500.jpg

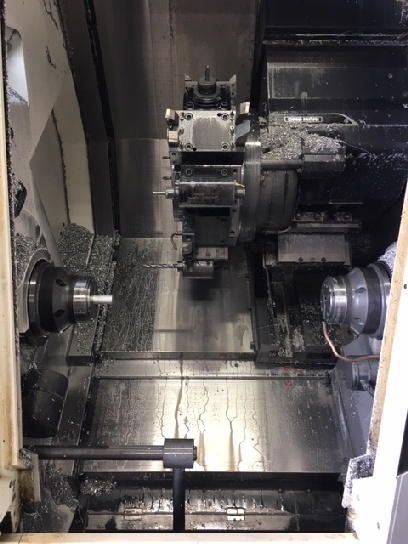

DMG MoriNLX-1500 SY - 50015706http://www.machinetools247.com/images/machines/15706-DMG Mori NLX-1500 SY - 500 a.jpg

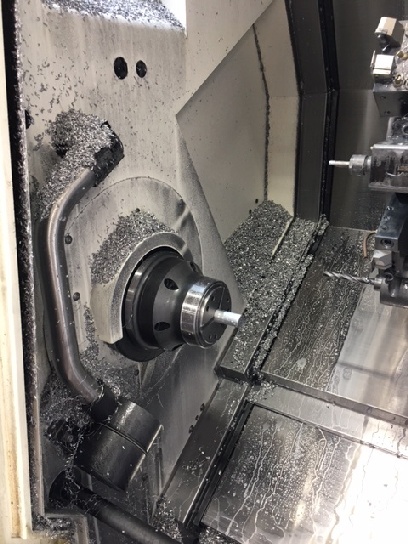

DMG MoriNLX-1500 SY - 50015706http://www.machinetools247.com/images/machines/15706-DMG Mori NLX-1500 SY - 500 b.jpg

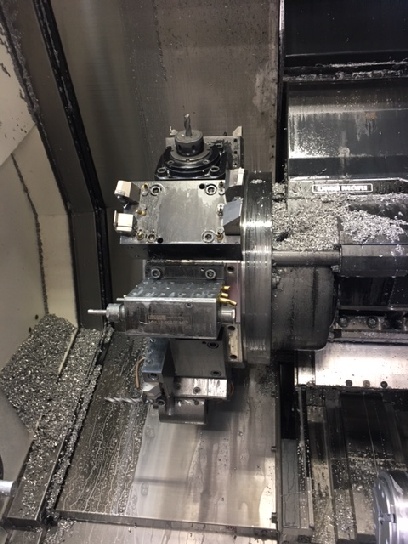

DMG MoriNLX-1500 SY - 50015706http://www.machinetools247.com/images/machines/15706-DMG Mori NLX-1500 SY - 500 c.jpg

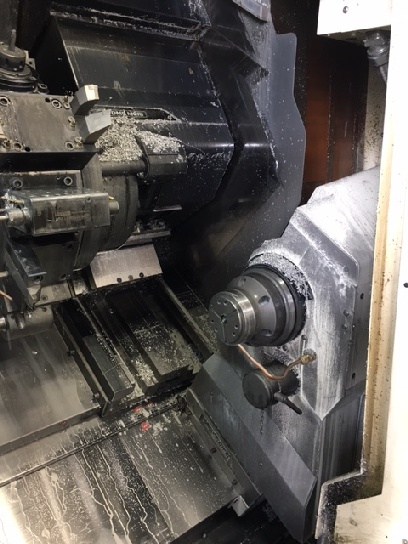

DMG MoriNLX-1500 SY - 50015706http://www.machinetools247.com/images/machines/15706-DMG Mori NLX-1500 SY - 500 d.jpg

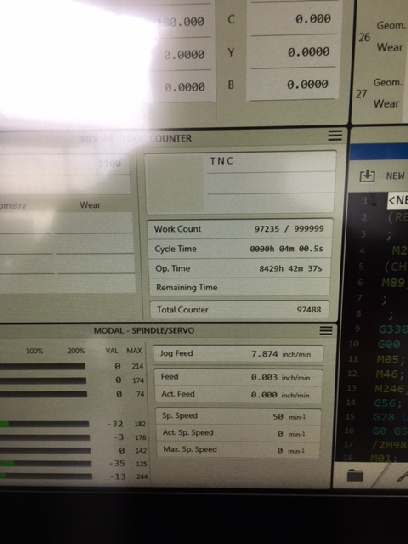

DMG MoriNLX-1500 SY - 50015706http://www.machinetools247.com/images/machines/15706-DMG Mori NLX-1500 SY - 500 e.jpg
DMG MoriNLX-1500 SY - 50015706http://www.machinetools247.com/images/machines/15706-DMG Mori NLX-1500 SY - 500 f.jpg
