Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
156842015DMG MoriNLX-2500 SMC - 700Mitsubishi M730M

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide36.37" / 29.72"
 Maximum Turning Diameter / Maximum Turning Length14.4" / 27.75"
 Distance Between Centers29"
Spindle:Spindle Speeds Minimum - Maximum40 - 4,000 RPM
 Spindle Bore / Bar Capacity / Nose3.58" / 3.1" / A2-8
 Main Motor (30 min / continuous)34.7 / 30 HP
Sub-Spindle:Speeds50 - 5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose / Indexing2.8" / 2.3" / A2-6
 Motor (30 min. / cont.)20 / 15 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel10.2"
 Z-Axis Travel31.3"
 B-Axis Travel28.9"
Rotary Tools:Rotary Tool Speed100 - 10,000 RPM
 Rotary Tool Motor (30 min. / continuous)7.5 HP
Rapids:Rapid Traverse (X & Z )1,181 IPM
 Feed Rate (X & Z )0.04 - 787 IPM
Dimensions:Floor Space (L x W x H)122" x 81" x 84"
 Weight (approx)15,000 Lbs

 Equipped With
Additional Info.:10" 3-Jaw Hydraulic Chuck Main, 8" Collet Chuck Sub
 Chip Conveyor
 All Available Manuals
 Parts Catcher
 Tool Presetter
 PC / MCIA Interface
 Cylindrical Interpolation
 USB Port
 Ethernet Port


Click Here To Print Quote - 15684

Click Here To Email Quote Request - 15684

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

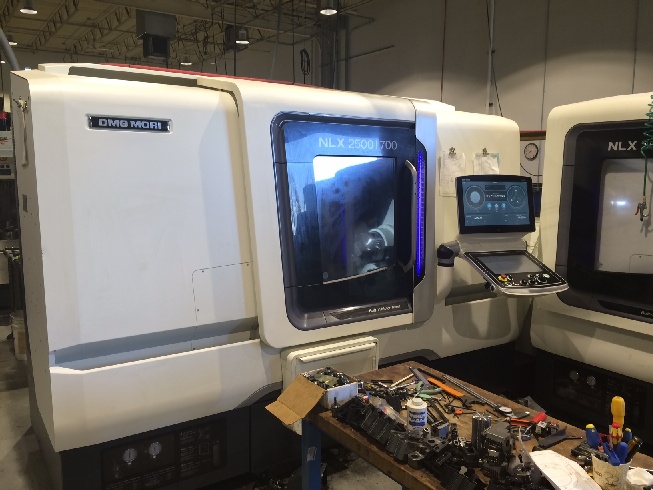

DMG MoriNLX-2500 SMC - 70015684http://www.machinetools247.com/images/machines/15684-DMG Mori-Seiki NLX-2500 SMC.jpg

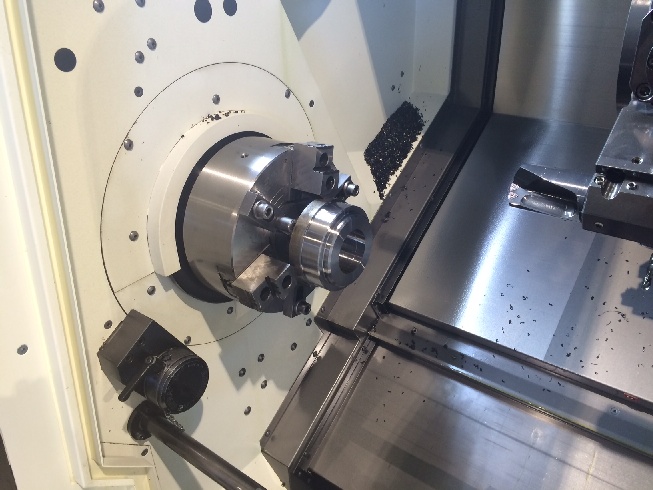

DMG MoriNLX-2500 SMC - 70015684http://www.machinetools247.com/images/machines/15684-DMG Mori-Seiki NLX-2500 SMC 1.jpg

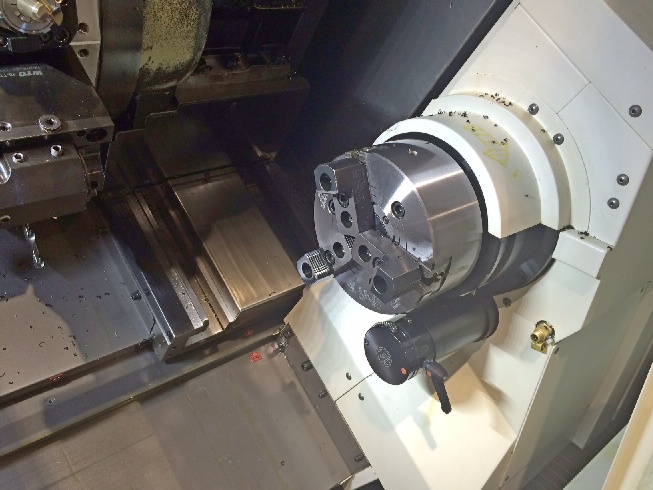

DMG MoriNLX-2500 SMC - 70015684http://www.machinetools247.com/images/machines/15684-DMG Mori-Seiki NLX-2500 SMC 2.jpg

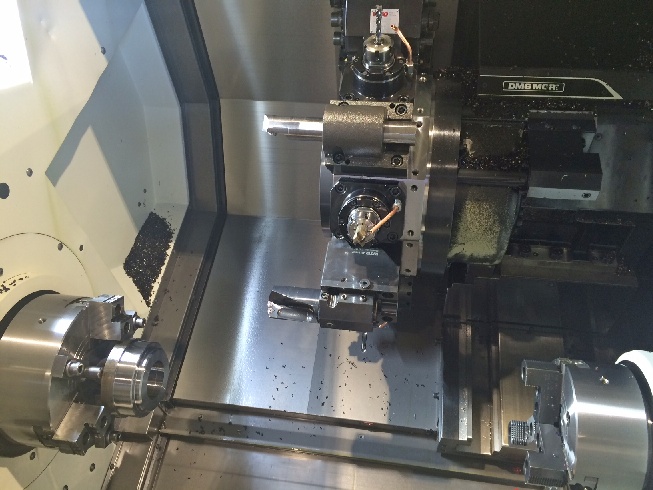

DMG MoriNLX-2500 SMC - 70015684http://www.machinetools247.com/images/machines/15684-DMG Mori-Seiki NLX-2500 SMC 3.jpg
