At Machine Tools 24-7 we never stop working to serve your machine tool needs

Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
156602002FadalVMC-2016LFadal 32MP CNC

 DescriptionSpec Values
Table:Table Size29.5" x 16"
 Maximum Table Load2,006 Lbs
Travels:X-Axis Travel22"
 Y-Axis Travel16"
 Z-Axis Travel20"
Spindle:Spindle Speeds10 - 7,500 RPM
 Spindle Taper40 Taper
 Main Motor15 HP
 Spindle Nose to Table Top4" - 24"
Tool Changer:Tool Changer Positions21 Stations
Rapids:Rapid Traverse (X & Y / Z)900 / 700 IPM
 Cutting Feed Rates.01 - 400 IPM
Dimensions:Floor Space (L x W x H)98" x 77" x 103"
 Weight (approx)8,300 Lbs

 Equipped With
Additional Info.:High Speed CPU
 Graphics
 Rigid Tapping
 Front Zip Drive
 Chip Enclosure


Click Here To Print Quote - 15660

Click Here To Email Quote Request - 15660

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

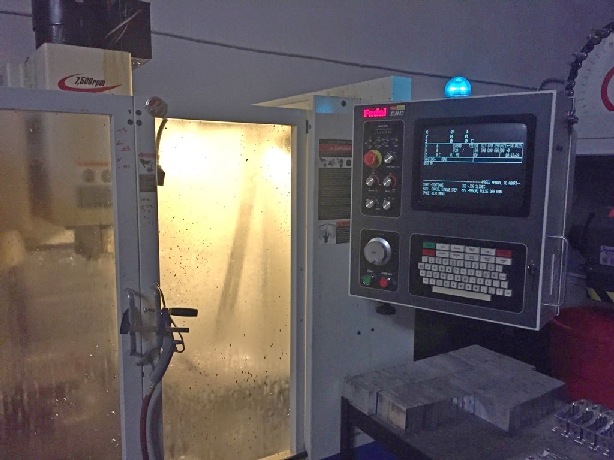

FadalVMC-2016L15660http://www.machinetools247.com/images/machines/15660-Fadal VMC-2016L.jpg

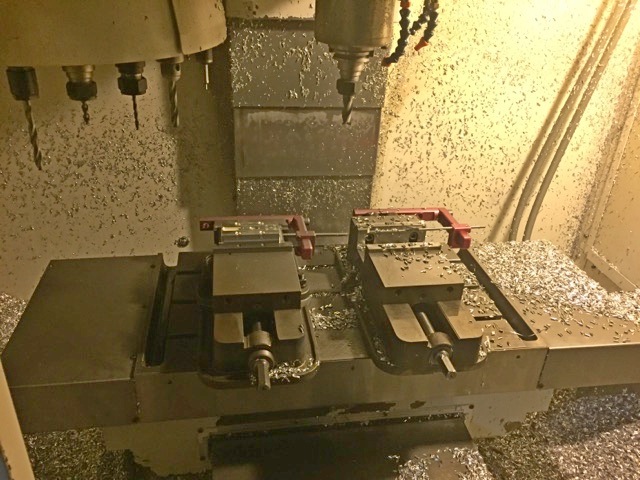

FadalVMC-2016L15660http://www.machinetools247.com/images/machines/15660-Fadal VMC-2016L 1.jpg

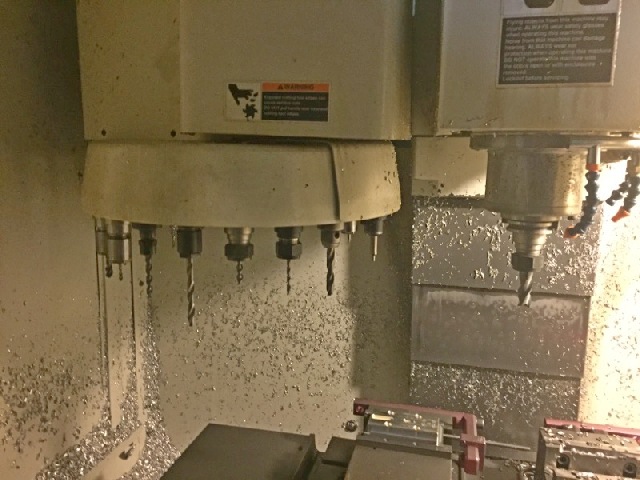

FadalVMC-2016L15660http://www.machinetools247.com/images/machines/15660-Fadal VMC-2016L 2.jpg

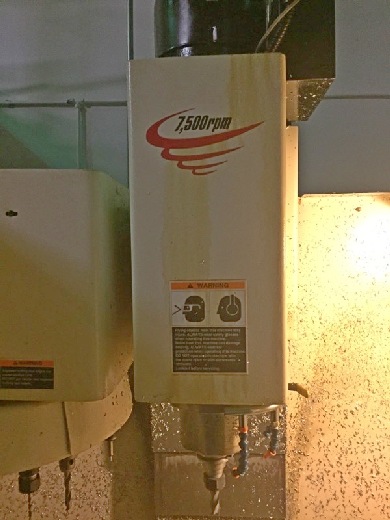

FadalVMC-2016L15660http://www.machinetools247.com/images/machines/15660-Fadal VMC-2016L 3.jpg
