Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
156572012MazakSlant Turn Nexus-550Mazatrol Matrix Nexus II

 DescriptionSpec Values
Capacity:Swing Over Bed / Swing Over Saddle40.94" / 29.4"
 Maximum Turning Diameter / Length36.383" / 123.78"
Spindle:Spindle Speeds25 - 1,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose10.8" / 10.8" / A2-20
 Main Motor (30 min. / continuous)60 / 50 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel18.25"
 Z-Longitudinal123.78"
Tailstock:Stroke of Body / Quill118" / 10.3"
 Quill Diameter / Taper5.9" / #5 MT
Rapids:Rapid Traverse (X / Z )787 / 945 IPM
 Feed Rate (X & Z )0.04 - 157 IPM
Dimensions:Floor Space (L x W x H)180" x 98" x 98"
 Weight (approx)42,000 Lbs

 Equipped With
Additional Info.:24" 3-Jaw Pneumatic Chuck (SMW)
 Transformer
 EIA / ISO

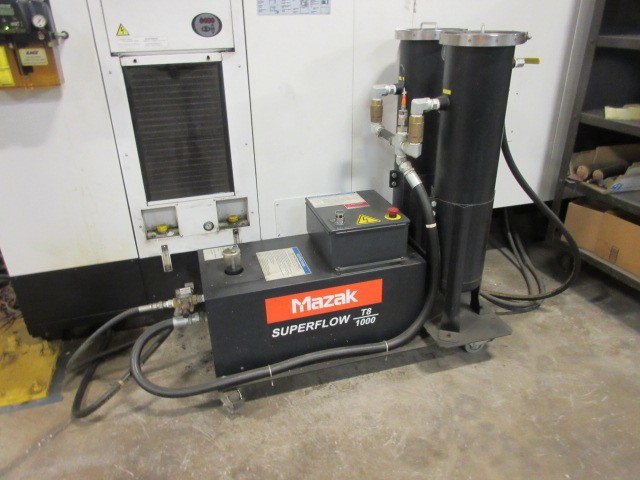

 Super Flow High Pressure Coolant (1,000 psi)
 Thread Cutting Function
 Chip Conveyor
 Hydraulic Steady Rest (SMW)
 Re-Threading Function
 Thread Start Point Compensation
 Tool Eye
 Prepped For Rear Chuck

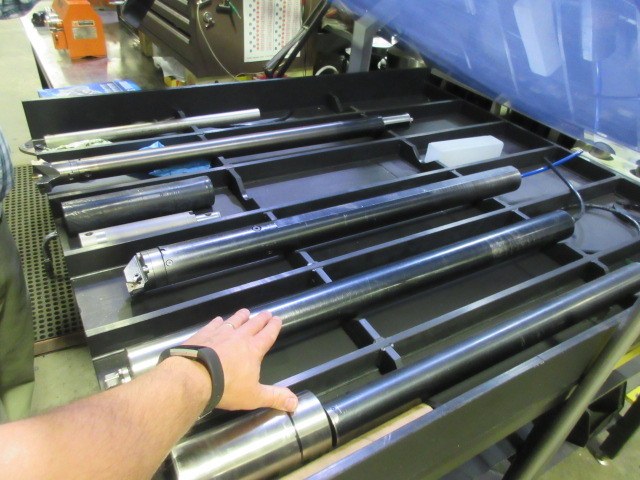

 Large Selection of Boring Bars
 Hydraulic Pressure Inter-Lock
 RS-232 Port
Note:Very Low Hours


Click Here To Print Quote - 15657

Click Here To Email Quote Request - 15657

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

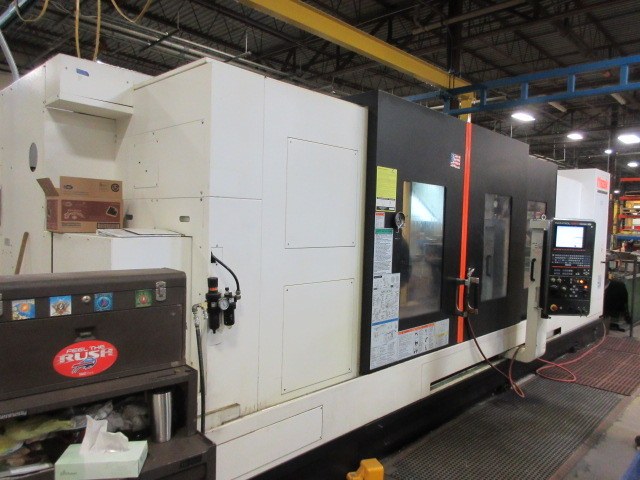

MazakSlant Turn Nexus-55015657http://www.machinetools247.com/images/machines/15657-Mazak Slant Turn Nexus-550.jpg

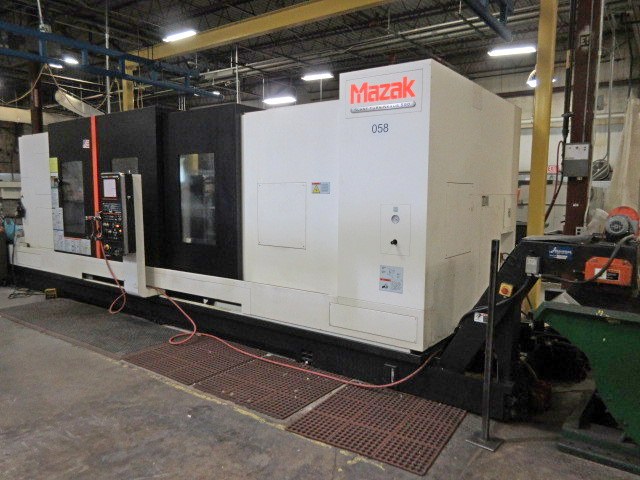

MazakSlant Turn Nexus-55015657http://www.machinetools247.com/images/machines/15657-Mazak Slant Turn Nexus-550 a.jpg

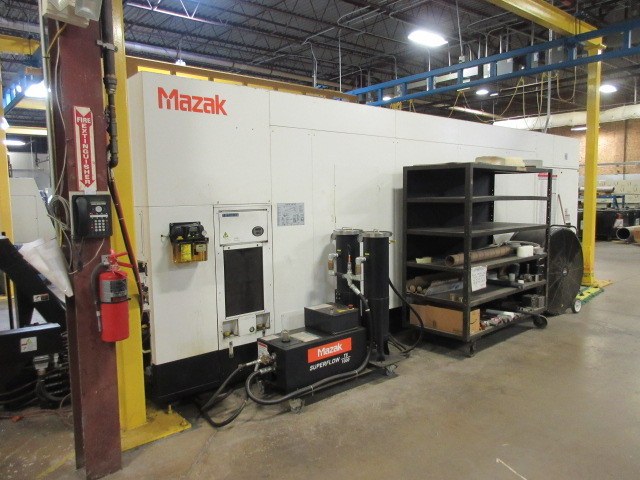

MazakSlant Turn Nexus-55015657http://www.machinetools247.com/images/machines/15657-Mazak Slant Turn Nexus-550 b.jpg
MazakSlant Turn Nexus-55015657http://www.machinetools247.com/images/machines/15657-Mazak Slant Turn Nexus-550 c.jpg
MazakSlant Turn Nexus-55015657http://www.machinetools247.com/images/machines/15657-Mazak Slant Turn Nexus-550 d.jpg

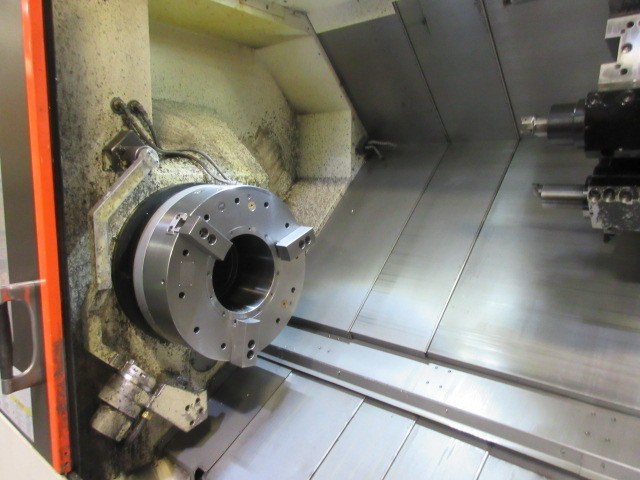

MazakSlant Turn Nexus-55015657http://www.machinetools247.com/images/machines/15657-Mazak Slant Turn Nexus-550 e.jpg

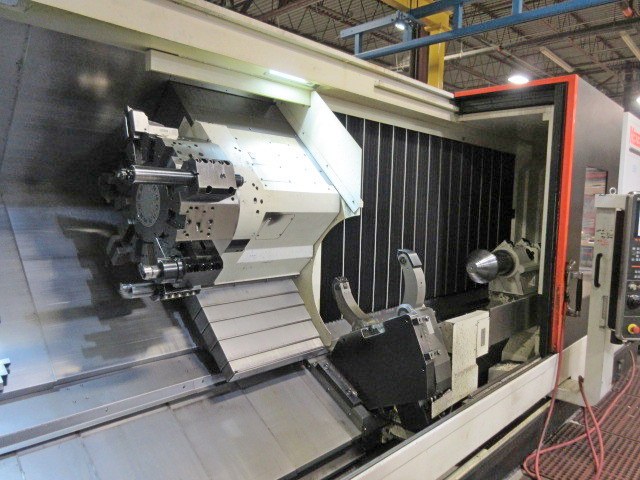

MazakSlant Turn Nexus-55015657http://www.machinetools247.com/images/machines/15657-Mazak Slant Turn Nexus-550 f.jpg

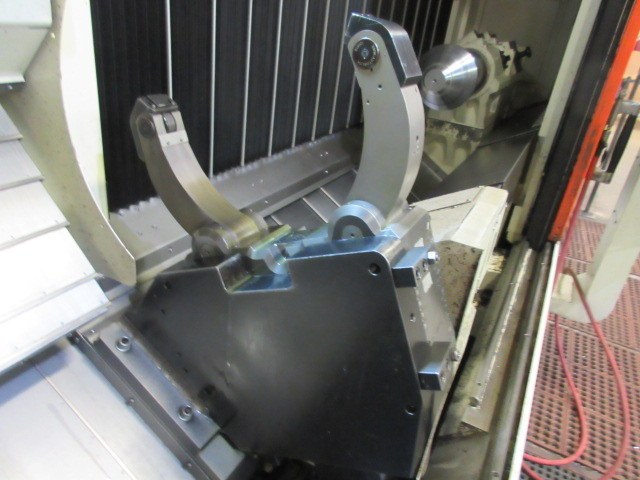

MazakSlant Turn Nexus-55015657http://www.machinetools247.com/images/machines/15657-Mazak Slant Turn Nexus-550 g.jpg

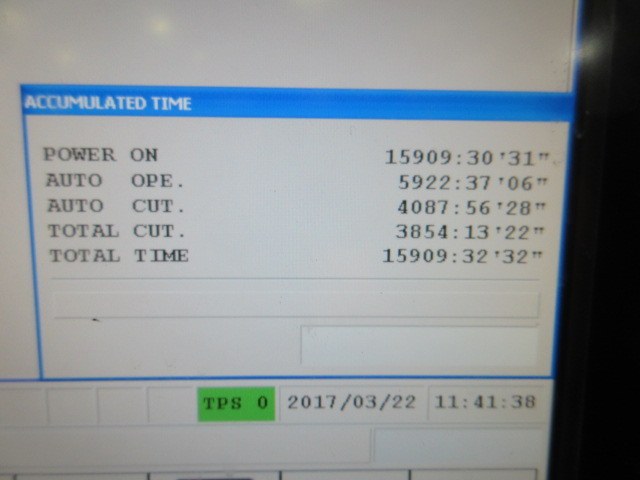

MazakSlant Turn Nexus-55015657http://www.machinetools247.com/images/machines/15657-Mazak Slant Turn Nexus-550 h.jpg

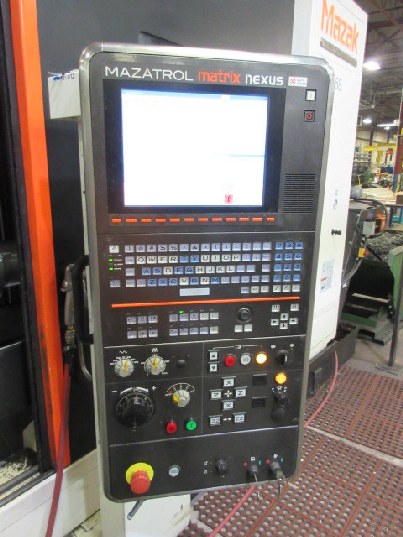

MazakSlant Turn Nexus-55015657http://www.machinetools247.com/images/machines/15657-Mazak Slant Turn Nexus-550 i.jpg
