Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
156562010Mori-SeikiNZ-1500 T2 Y2Mori-Seiki MSX-711 IV

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide31.5" / 12.5"
 Maximum Cutting Diameter / Maximum Turning Length12.5" / 31.9"
 Distance Between Spindles44.4"
Main Spindle:Speeds60 - 6,000 RPM
 Spindle Bore / Bar Capacity / Spindle Nose2.4" / 2" / A2-5
 Main Motor (30 min / continuous)33 / 29 HP
Sub-Spindle:Speeds60 - 6,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose2.4" / 2" / A2-5
 Motor (30 min. / cont.)33 / 29 HP
Turrets:Number of Positions (turret one / turret two) All Live16 Tools Each All Live
Travels:X-Axis Travel (turret one / turret two)8.3" / 8.3"
 Z-Axis Travel (turret one / turret two)31.9" / 31.9"
 Y-Axis Travel (turret one / turret two)4.3" / 4.3"
 B-Axis Travel (sub-spindle)35.4"
Rotary Tools:Rotary Tool Speed60 - 6,000 RPM
 Rotary Tool Motor (turret one / turret two)10 / 7.5 HP
Rapids:Rapid Traverse (X / Z / Y)1,181 / 1,968 / 787 IPM
 Sub Spindle Rapid Traverse1,574 IPM
Dimensions:Floor Space (L x W x H)156" x 146" x 94"
 Weight (approx)20,000 Lbs

 Equipped With
Additioanl Info.:Collet Chuck Main and 6" 3-Jaw Hydraulic Chuck Sub
 MAPPS Conversational Programming
 Rigid Tapping Milling Head
 Manual Tool Presetter Both Turrets
 Right Side Parts Conveyor
 Y-Axis Milling Capability on Upper Turret
 1,280 Meters of Memory
 Chip Conveyor
 Over-Head Parts Catcher
 Remote Jog Handle
 Mori-Net
 Memory Card Slot
 LNS Sprint Bar Feed (12' magazine)
 Bar Feed Interface


Click Here To Print Quote - 15656

Click Here To Email Quote Request - 15656

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

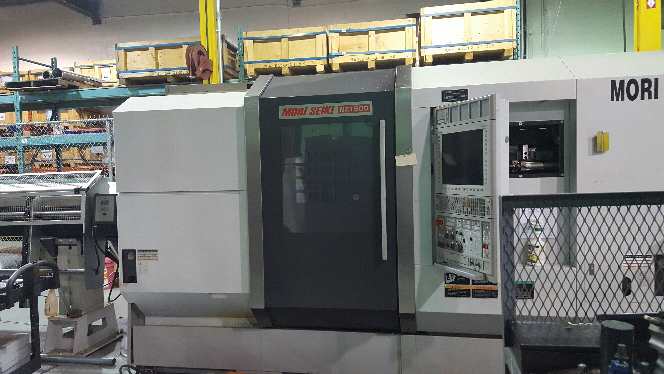

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2.jpg

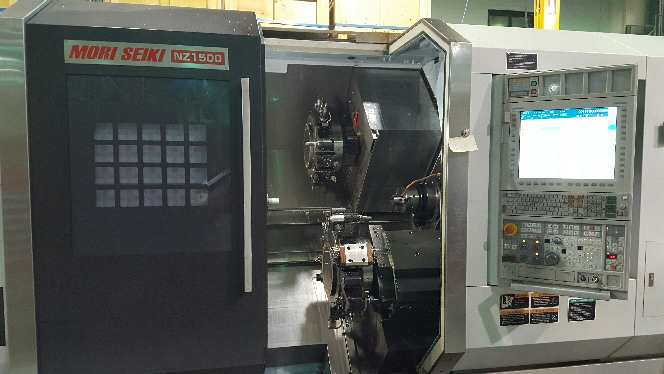

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 a.jpg

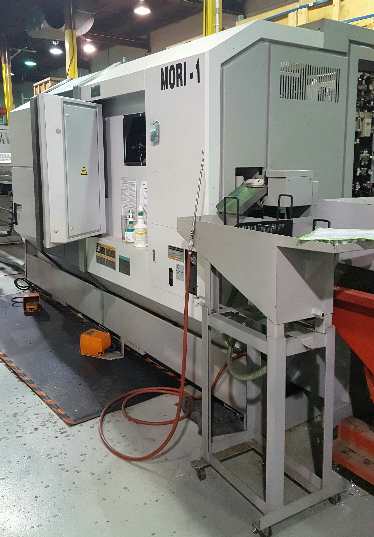

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 b.jpg

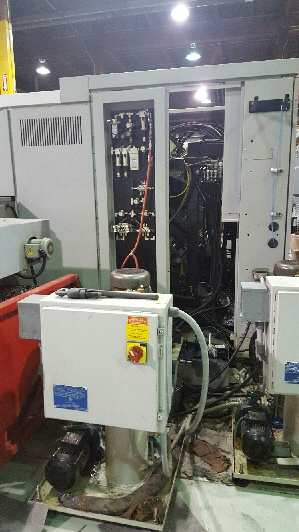

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 c.jpg

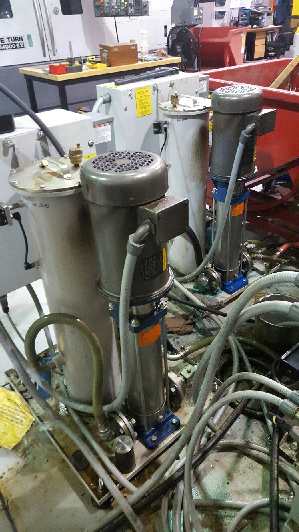

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 d.jpg

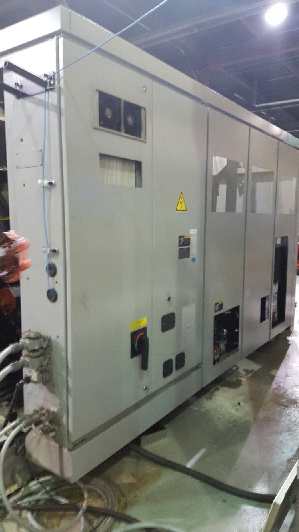

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 e.jpg

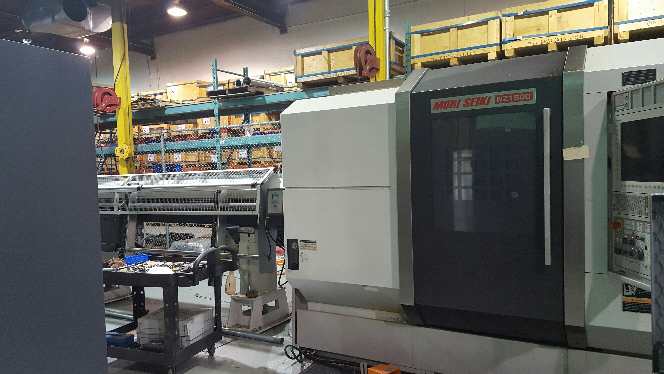

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 f.jpg

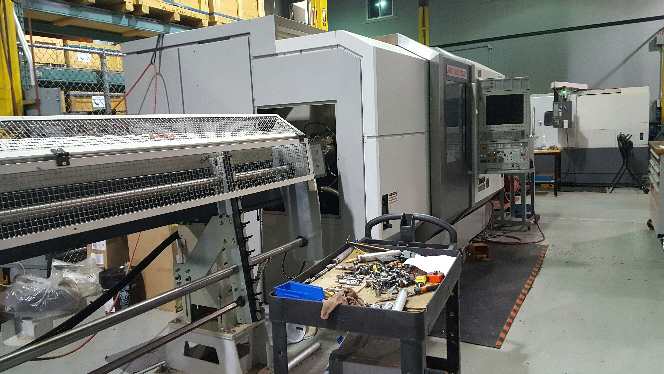

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 g.jpg

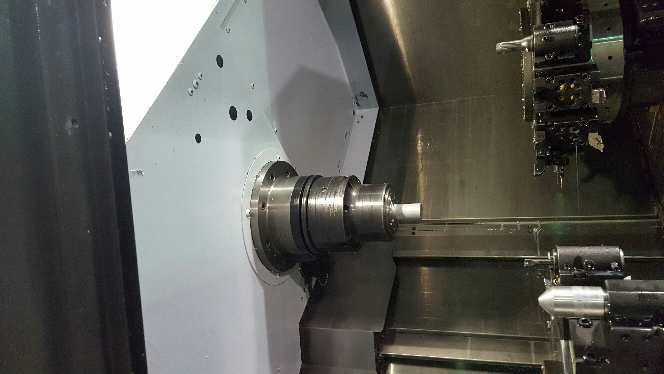

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 h.jpg

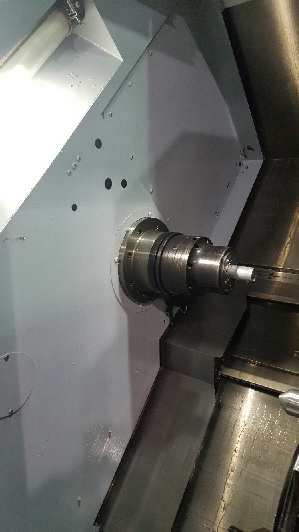

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 i.jpg

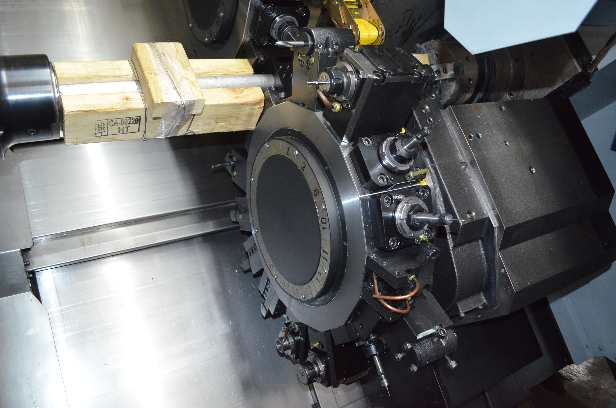

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 j.jpg

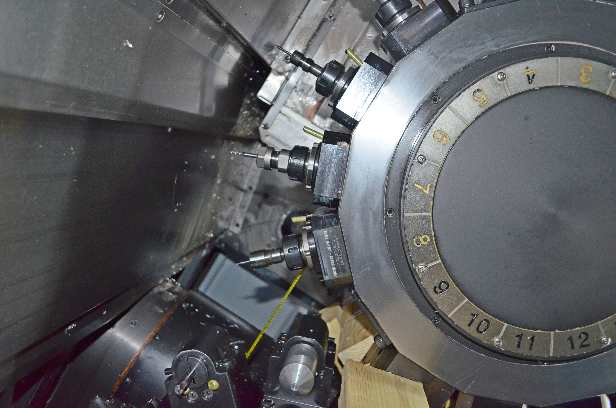

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 k.jpg

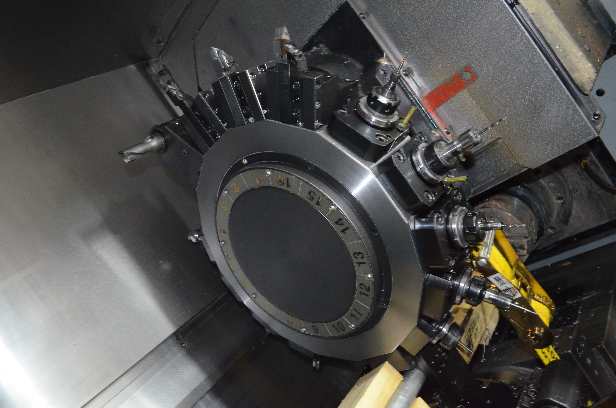

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 l.jpg

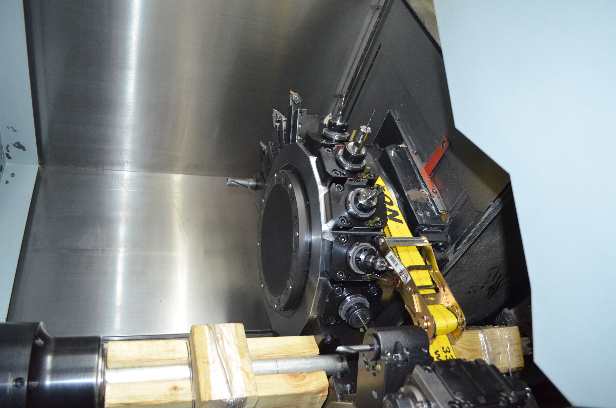

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 m.jpg
Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 n.jpg

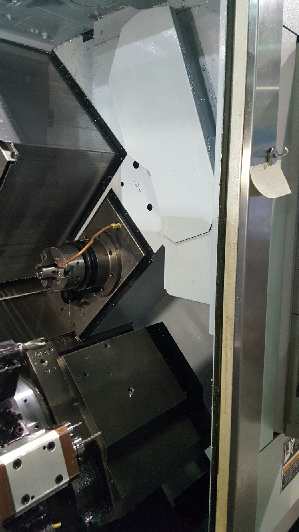

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 o.jpg
Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 p.jpg

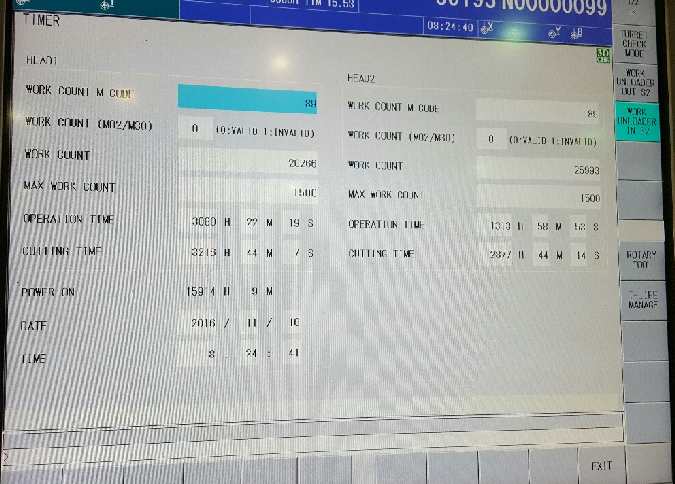

Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 q.jpg
Mori-SeikiNZ-1500 T2 Y215656http://www.machinetools247.com/images/machines/15656-Mori-Seiki NZ-1500 T2 Y2 r.jpg
