Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

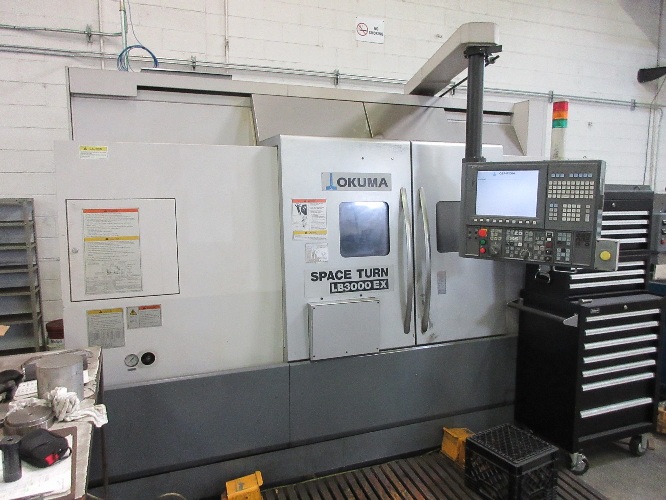

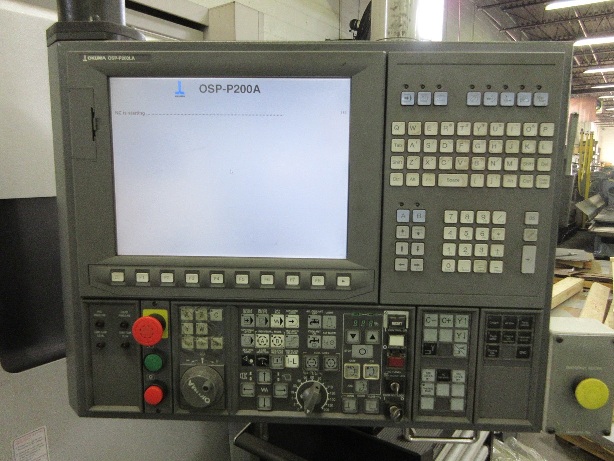

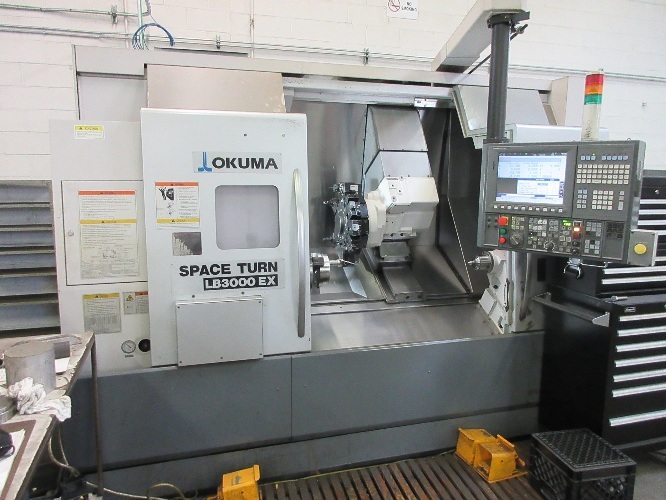

156542012OkumaLB-3000 EX BB MYOSP-P200LA II

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide22.38" / 18.5"
 Maximum Turning Diameter / Maximum Turning Length13.39" / 39.37"
 Distance Between Centers42.72"
Spindle:Spindle Speeds Minimum - Maximum42 - 4,200 RPM
 Spindle Bore / Bar Capacity / Nose3.58" / 2.75" / A2-8
 Main Motor (30 min / continuous)40 / 30 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel10.24"
 Z-Axis Travel39.76"
 Y-Axis Travel4.72" +/-
Rotary Tools:Rotary Tool Speed20 - 6,000 RPM
 Rotary Tool Motor (30 min. / continuous)10 / 5 HP
Tailstock:Stroke of Body / Quill35" / 4.72"
 Quill Diameter / Taper3.54" / MT #5
Rapids:Rapid Traverse (X / Z )984 / 1,181 IPM
Dimensions:Floor Space (L x W x H)87" x 70" x 73"
 Weight (approx.)12,000 Lbs

 Equipped With

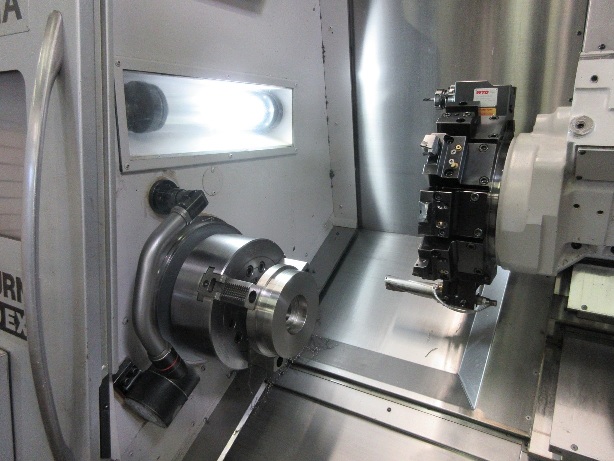

Additional Info.:12" 3-Jaw Hydraulic Chuck
 Touch Setter
 RS-232 Port

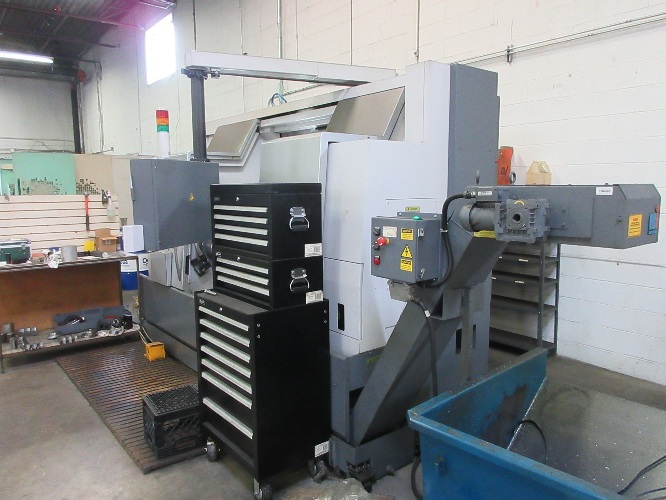

 Chip Conveyor
 IGF Conversational Progamming
 High Pressure Coolant
 Headstock Cooling

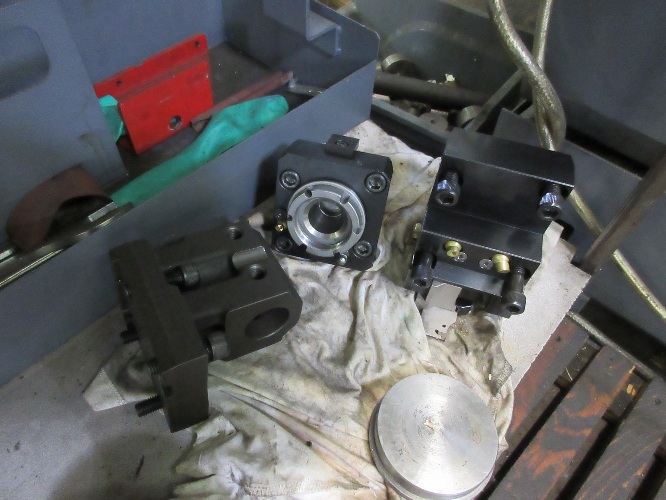

 Live Holders

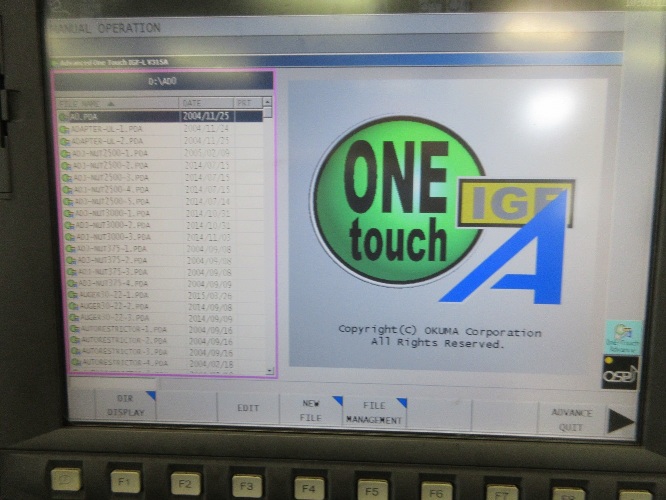

 One Touch IGF
 NC Turret
 Helical Milling Capability
 Hobbing Option
 Synchronized Tapping
 NC Tailstock


Click Here To Print Quote - 15654

Click Here To Email Quote Request - 15654

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos
OkumaLB-3000 EX BB MY15654http://www.machinetools247.com/images/machines/15654-Okuma LB-3000 EX BB MY 2.jpg
OkumaLB-3000 EX BB MY15654http://www.machinetools247.com/images/machines/15654-Okuma LB-3000 EX BB MY 3.jpg
OkumaLB-3000 EX BB MY15654http://www.machinetools247.com/images/machines/15654-Okuma LB-3000 EX BB MY 4.jpg

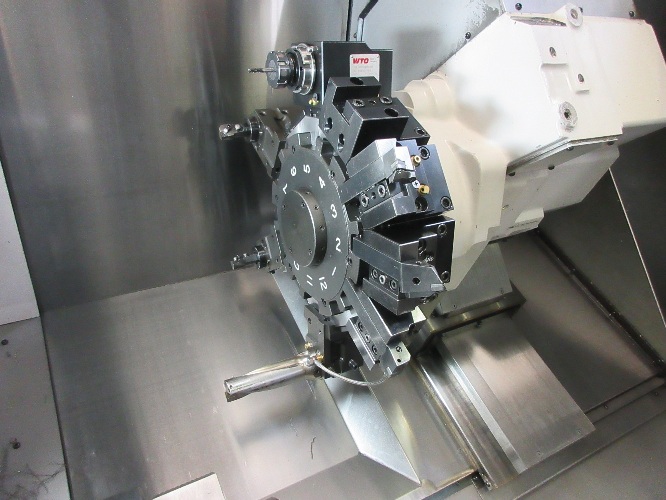

OkumaLB-3000 EX BB MY15654http://www.machinetools247.com/images/machines/15654-Okuma LB-3000 EX BB MY 5.jpg
OkumaLB-3000 EX BB MY15654http://www.machinetools247.com/images/machines/15654-Okuma LB-3000 EX BB MY 6.jpg
OkumaLB-3000 EX BB MY15654http://www.machinetools247.com/images/machines/15654-Okuma LB-3000 EX BB MY 7.jpg
OkumaLB-3000 EX BB MY15654http://www.machinetools247.com/images/machines/15654-Okuma LB-3000 EX BB MY 8.jpg
OkumaLB-3000 EX BB MY15654http://www.machinetools247.com/images/machines/15654-Okuma LB-3000 EX BB MY 9.jpg
OkumaLB-3000 EX BB MY15654http://www.machinetools247.com/images/machines/15654-Okuma LB-3000 EX BB MY.jpg
OkumaLB-3000 EX BB MY15654http://www.machinetools247.com/images/machines/15654-Okuma LB-3000 EX BB MY 1.jpg
