Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
155302011Mori-SeikiEcoMill 1035VMori-Seiki M730 BM

 DescriptionSpec Values
Table:Table Size47.2" x 22"
 Maximum Table Load1,500 Lbs
Travels:X-Axis Travel40.7"
 Y-Axis Travel22"
 Z-Axis Travel20.1"
 Spindle Nose to Table Top4.7" - 24.8"
Spindle:Spindle Speeds Minimum - Maximum40 - 12,000 RPM
 Spindle Taper40 Taper
 Main Motor (30 min. / continuous)15 / 7.5 HP
Tool Changer:Tool Changer Positions / Change Time (T-T / C-C)30 ATC / 1.6 / 5 Sec.
Rapids:Rapid Traverse (X, Y & Z)1,200 IPM
 Feed Cut Rate984 IPM
Dimensions:Floor Space (L x W x H)99" x 99" x 110"
 Weight (approx.)12,000 Lbs

 Equipped With
Additional Info.:Rigid Tapping
 Custom Macros
 Chip Conveyor
 Coolant Through Spindle (300 psi)
 USB Port
 Helical Interpolation
 Direct Scale Feedback
 ChipBlaster Unit


Click Here To Print Quote - 15530

Click Here To Email Quote Request - 15530

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

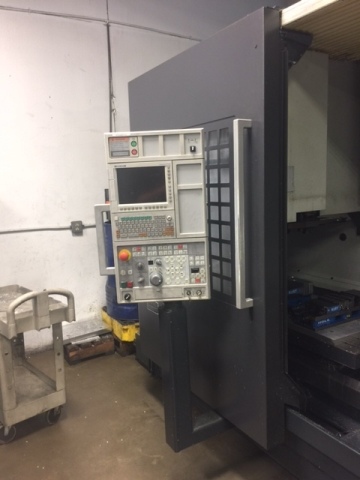

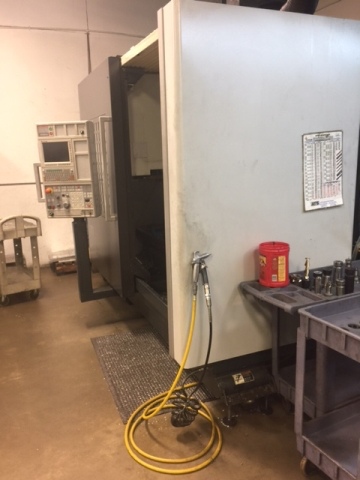

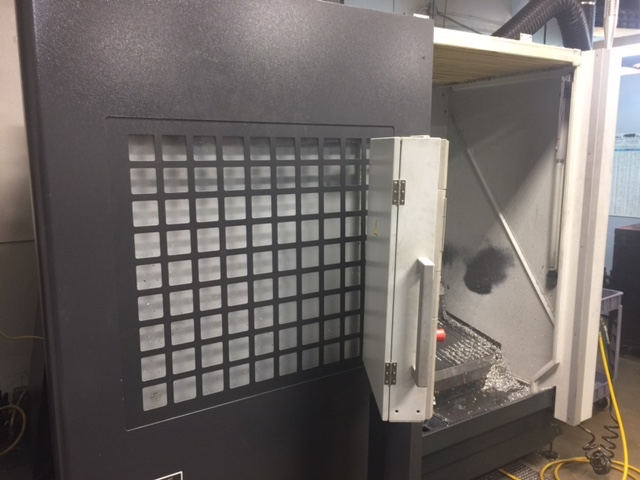

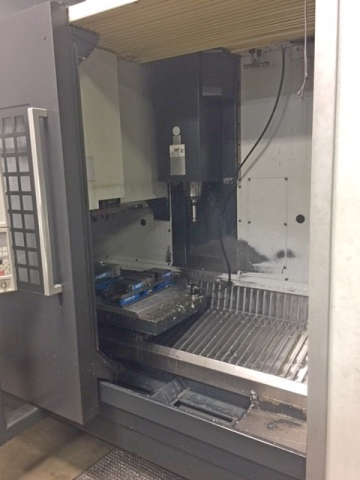

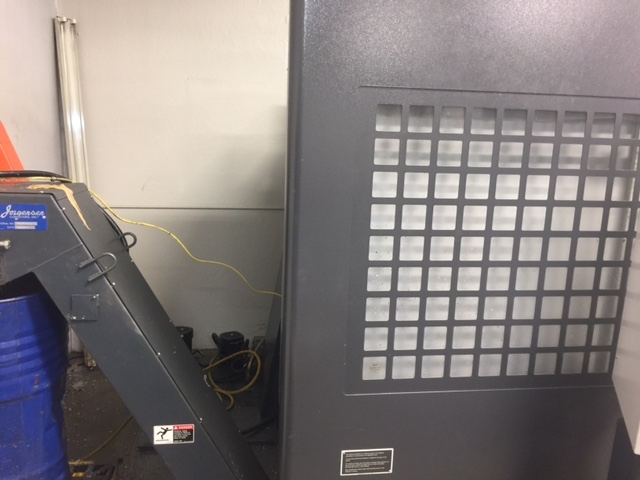

Mori-SeikiEcoMill 1035V15530http://www.machinetools247.com/images/machines/15530-Mori-Seiki EcoMill 1035V.jpg
Mori-SeikiEcoMill 1035V15530http://www.machinetools247.com/images/machines/15530-Mori-Seiki EcoMill 1035V 1.jpg
Mori-SeikiEcoMill 1035V15530http://www.machinetools247.com/images/machines/15530-Mori-Seiki EcoMill 1035V 2.jpg
Mori-SeikiEcoMill 1035V15530http://www.machinetools247.com/images/machines/15530-Mori-Seiki EcoMill 1035V 3.jpg
Mori-SeikiEcoMill 1035V15530http://www.machinetools247.com/images/machines/15530-Mori-Seiki EcoMill 1035V 4.jpg
