Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

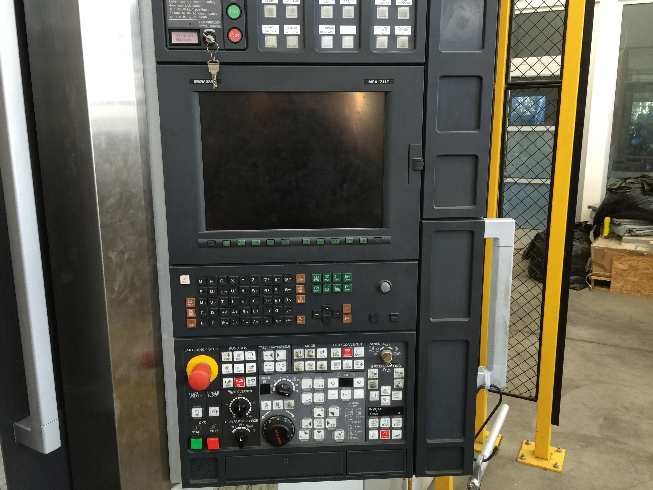

155012007Mori-SeikiNT-4200 DCG - 1000 SMori-Seiki MSX-711 (Fanuc 31iT)

 DescriptionSpec Values
Capacity:Swing Over Bed / Swing Over Saddle28.7" / 28.7"
 Maximum Turning Diameter Main / Sub25.9" / 25.9"
 Maximum Turning Diameter Length42"
Main Spindle:Speeds50 - 5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose2.9" / 2.6" / A2-8
 Motor (30 min. / cont.)20 / 15 HP
Sub-Spindle:Speeds40 - 4,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose / Indexing2.9" / 2.6" / A2-6
 Motor (30 min. / cont.)20 / 15 HP
Turrets:Number of Positions40 ATC
Travels:X-Axis Travel29.5"
 Z-Axis Travel (upper44"
 Y-Axis Travel8.3" +/-
 B-Axis Rotation / Indexing120,000° +/- / 1°
 C-Indexing360,000°
Rotary Tools:Rotary Tool Speed15,000 RPM
 Rotary Tool Motor15 / 7.5 HP
Rapids:Rapid Traverse (X / Z)1,968 / 1,181 IPM
 Sub Spindle Rapid Traverse787 IPM
Dimensions:Floor Space (L x W x H)149" x 114" x 99"
 Weight (approx)36,000 Lbs

 Equipped With
Additional Info.:8" 3-Jaw Hydraulic Chuck Main and Sub Spindle
 MAPPS III Programming Software
 Programmable Sub Spindle
 AI Contour Control

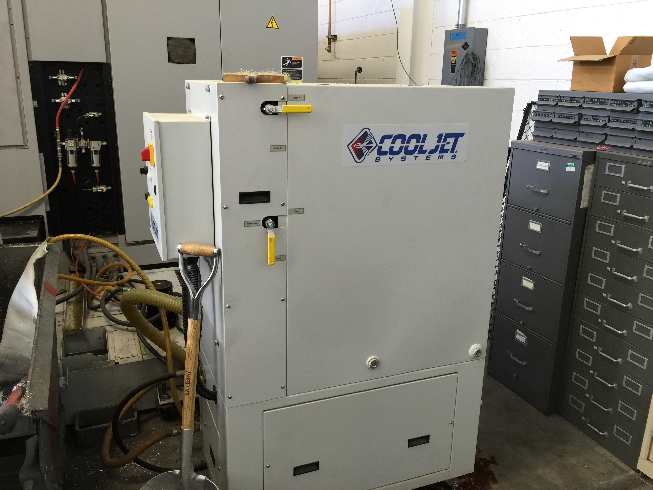

 High Pressure Coolant (1,000 psi)
 Power Door
 Laser System Option
 Bar Feed Interface

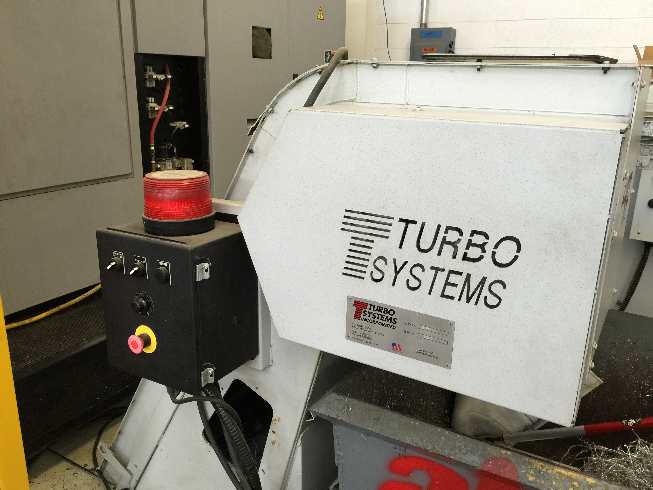

 Chip Conveyor
 Ethernet Port
 Tool Presetter
 Synchronized Tapping
 Custom Macros
 Five (5) Set of Additional M-Codes
 Four Hundred Eighty (480) Tool Offsets
 Chuck and Tool Air Blow
 Automation Package
 Parts Load / Unload Station
 LNS Servo 300 Bar Feed


Click Here To Print Quote - 15501

Click Here To Email Quote Request - 15501

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

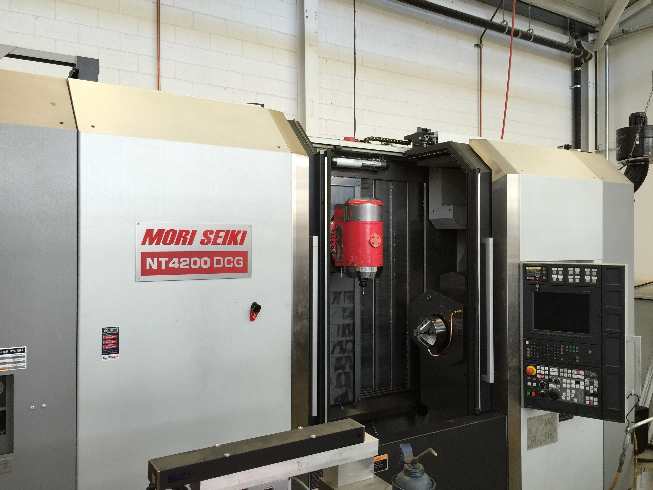

Mori-SeikiNT-4200 DCG - 1000 S15501http://www.machinetools247.com/images/machines/15501-Mori-Seiki NT-4200 DCG - 1000 S.jpg
Mori-SeikiNT-4200 DCG - 1000 S15501http://www.machinetools247.com/images/machines/15501-Mori-Seiki NT-4200 DCG - 1000 S 1.jpg

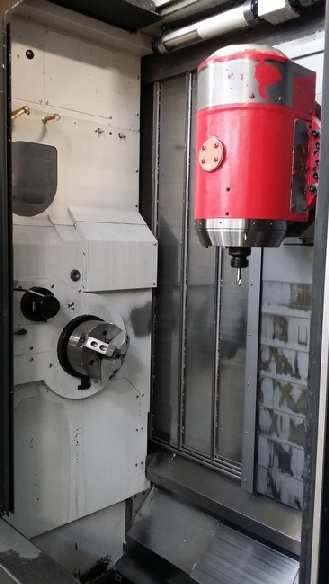

Mori-SeikiNT-4200 DCG - 1000 S15501http://www.machinetools247.com/images/machines/15501-Mori-Seiki NT-4200 DCG - 1000 S 2.jpg

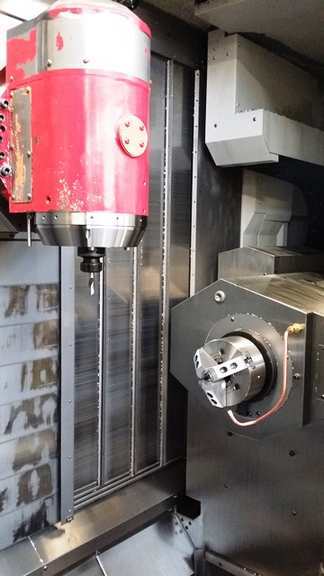

Mori-SeikiNT-4200 DCG - 1000 S15501http://www.machinetools247.com/images/machines/15501-Mori-Seiki NT-4200 DCG - 1000 S 3.jpg
Mori-SeikiNT-4200 DCG - 1000 S15501http://www.machinetools247.com/images/machines/15501-Mori-Seiki NT-4200 DCG - 1000 S 4.jpg
Mori-SeikiNT-4200 DCG - 1000 S15501http://www.machinetools247.com/images/machines/15501-Mori-Seiki NT-4200 DCG - 1000 S 5.jpg
