Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

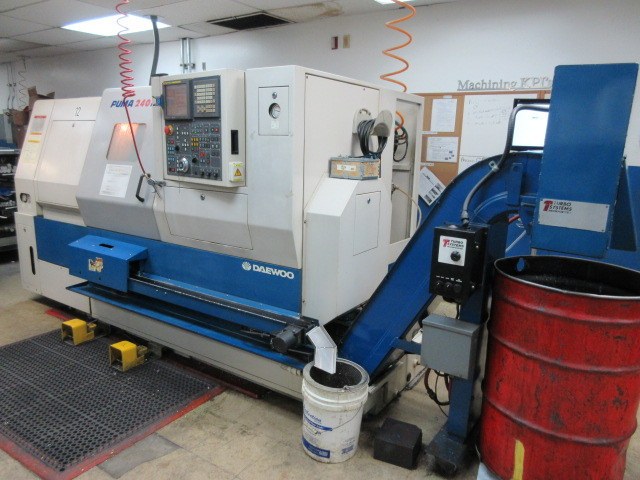

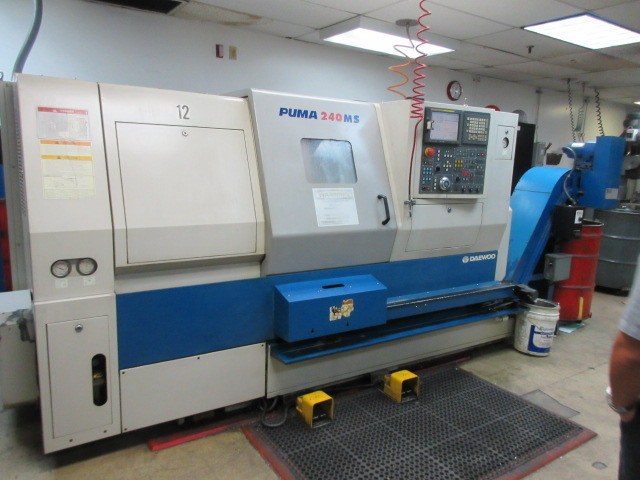

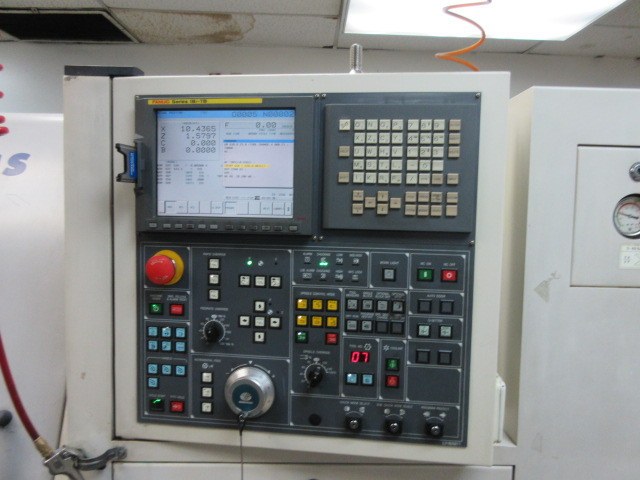

154612004DaewooPuma-240 MSBFanuc 18T

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide21.65" / 15.4"
 Maximum Turning Diameter / Length11.4" / 20.2"

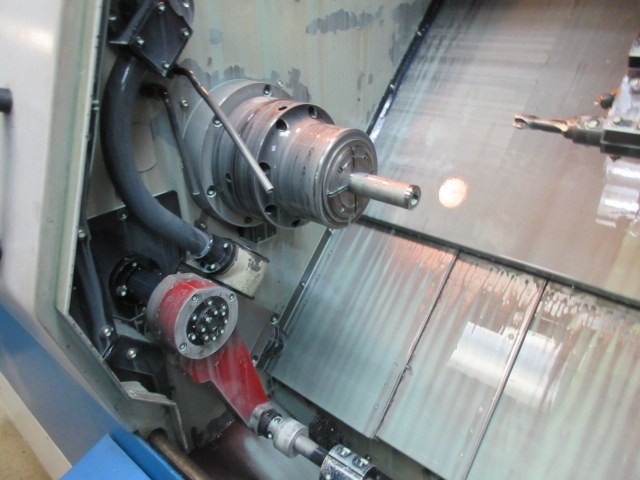

Main Spindle:Speeds45 - 4,500 RPM
 Spindle Bore / Bar Cap / Spindle Nose2.99" / 2.56" / A2-6
 Motor (30 min. / cont.)25 / 20 HP

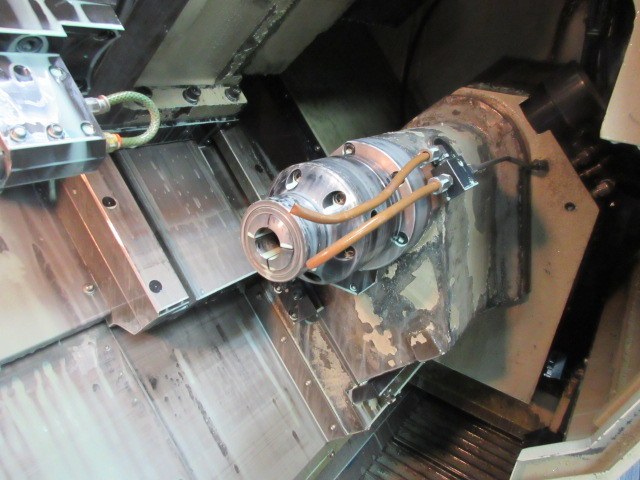

Sub-Spindle:Speeds60 - 6,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose / Indexing1.7" / 1.38" / A2-6 / 360,000°
 Motor (30 min. / cont.)10 / 7.5 HP
Rotary Tools:Rotary Tool Speed60 - 6,000 RPM
 Rotary Tool Motor7.5 HP

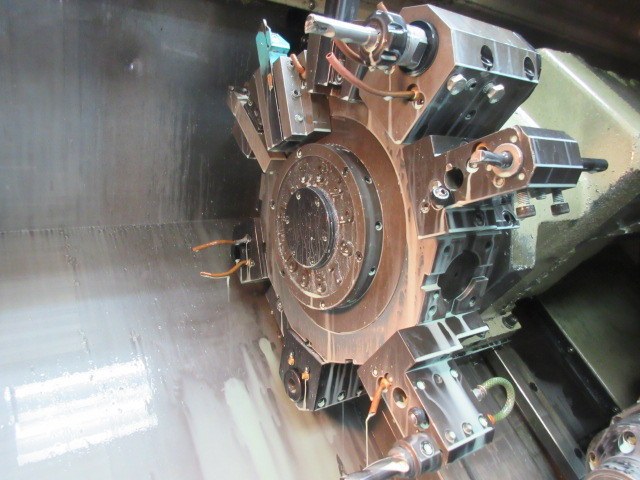

Turret:Number of Positions12 - All Can Be Live
Travels:X-Travel8.07"
 Z-Axis Travel22.83"
 C-Indexing360,000°
Rapids:Rapid Traverse (X / Z)945 / 1,181 IPM
Dimensions:Floor Space (L x W x H)135" x 62.7" x 68.5"
 Weight (approx)10,000 Lbs

 Equipped With
Additional Info.:8" 3-Jaw Hydraulic Chuck On Main, 6" 3-Jaw Hydraulic Chuck On Sub
 Parts Catcher
 Multiple Part Program Storage

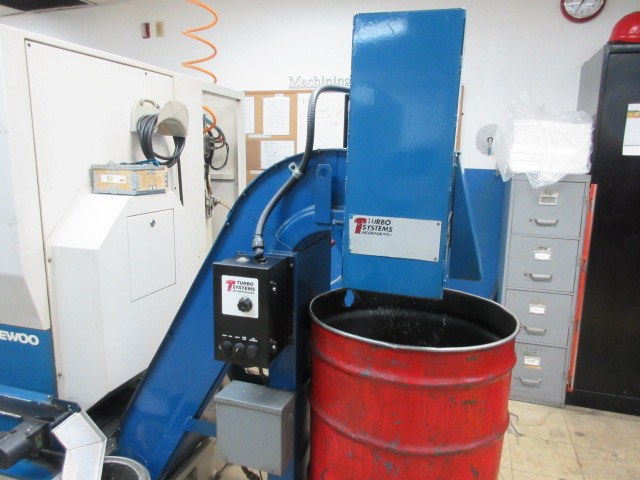

 Chip Conveyor
 Tool Setter
 Bar Feed Interface
 Parts Conveyor
 PC / MCIA Interface


Click Here To Print Quote - 15461

Click Here To Email Quote Request - 15461

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos
DaewooPuma-240 MSB15461http://www.machinetools247.com/images/machines/15461-Daewoo Puma-240 MSB.jpg
DaewooPuma-240 MSB15461http://www.machinetools247.com/images/machines/15461-Daewoo Puma-240 MSB 1.jpg

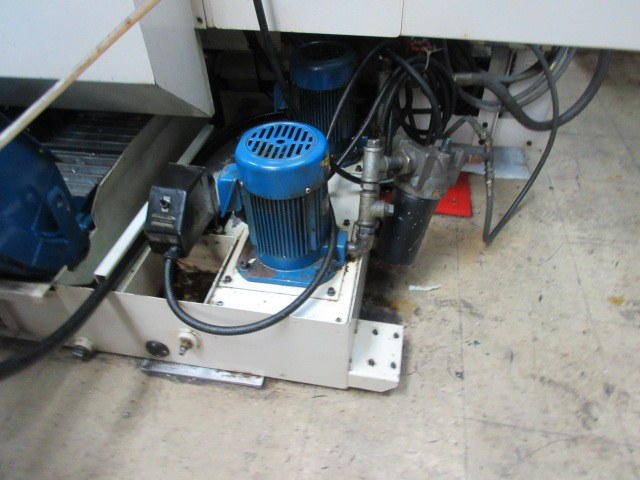

DaewooPuma-240 MSB15461http://www.machinetools247.com/images/machines/15461-Daewoo Puma-240 MSB 2.jpg
