Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
154551994Mori-SeikiSL-45CFanuc 16T

 DescriptionSpec Values
16.3Swing / Swing Over Cross Slide26.4" /18.1"
 Maximum Turning Diameter / Maximum Turning Length19.3" / 39.2"
 Distance Between Centers45.1"
Spindle:Spindle Speeds Minimum - Maximum40 - 1,010 RPM
 Spindle Bore / Bar Capacity / Nose6.6" / 6" / A2-11
 Main Motor (30 min / continuous)40 / 35 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel16.8"
 Z-Axis Travel45.1"
Tailstock:Stroke of Body / Quill40" / 5.9"
 Quill Diameter / Taper5.1" / MT # 5
Rapids:Rapid Traverse (X / Z )472 / 590 IPM
Dimensions:Floor Space (L x W x H)108" x 85" x 80"
 Weight (approx.)25,00 Lbs

 Equipped With
Additional Info.:18" 3-Jaw Pneumatic Chuck
 Chip Conveyor
 Two (2) Speed Geared Head
 Steady Rest
 Programmable Tailstock


Click Here To Print Quote - 15455

Click Here To Email Quote Request - 15455

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

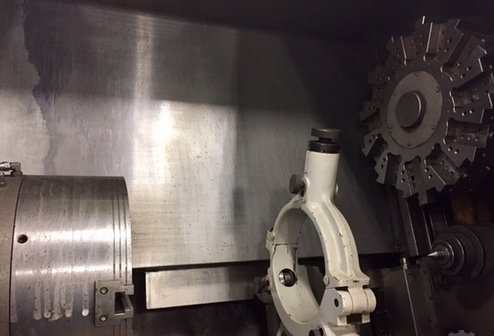

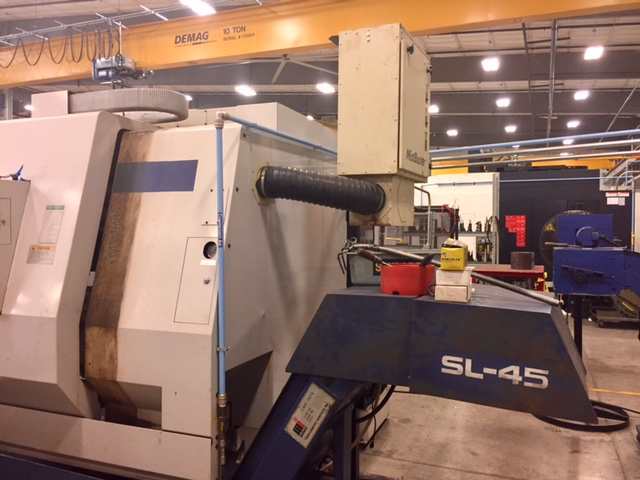

Mori-SeikiSL-45C15455http://www.machinetools247.com/images/machines/15455-Mori-Seiki SL-45C.jpg
Mori-SeikiSL-45C15455http://www.machinetools247.com/images/machines/15455-Mori-Seiki SL-45C 1.jpg
Mori-SeikiSL-45C15455http://www.machinetools247.com/images/machines/15455-Mori-Seiki SL-45C 2.jpg
