Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
154522008MazakNexus VCN-510C IIMazatrol Matrix

 DescriptionSpec Values
Table:Table Size51.18" x 21.65"
 Maximum Table Load2,640 Lbs
Travels:X-Axis Travel41.34"
 Y-Axis Travel20.08"
 Z-Axis Travel20.08"
 Spindle Nose to Table Top5.9" - 25.98"
Spindle:Spindle Speeds Minimum - Maximum140 - 12,000 RPM
 Spindle Taper40 Taper
 Main Motor (30 min. / cont.)25 / 20 HP
Tool Changer:Tool Changer Positions (tool-to-tool / chip-to-chip)30 ATC / 4.7 / 1.5 Sec.
Rapids:Rapid Traverse1,417 IPM
 Cutting Feed Rate987 IPM
Dimensions:Floor Space (L x W x H)115" x 112" x 114"
 Weight (approx)16,000 Lbs

 Equipped With
Additional Info.:Remote Jog Handle
 High Pressure Coolant Through Spindle (213 psi)
 Automatic Tool Length Measurement
 Tool Breakage Detection
 Spindle Chiller
 Chip Conveyor
 Synchronized Tapping
 4th Axis Interface
 Two (2) USB Port
 Mazacc 2D Software
 Thread Cutting Function
 Intelligent Thermal Shield
 12" Kitagawa Rotary Table
 EIA / ISO Input Function
 PC / MCIA Interface
 Tool Life Monitoring
 Conversational Programming
 Multi-Tap Transformer
 Helical Interpolation


Click Here To Print Quote - 15452

Click Here To Email Quote Request - 15452

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

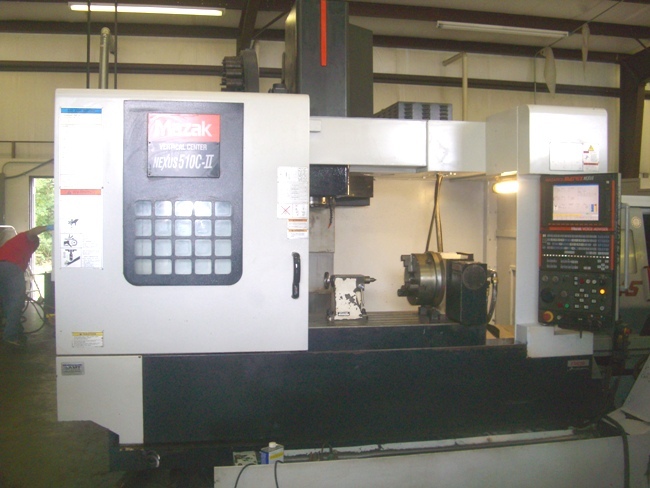

MazakNexus VCN-510C II15452http://www.machinetools247.com/images/machines/15452-Mazak Nexus VCN-510C II.jpg

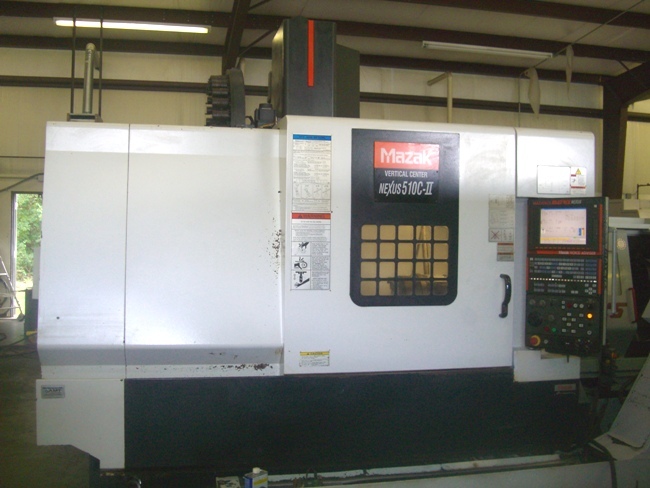

MazakNexus VCN-510C II15452http://www.machinetools247.com/images/machines/15452-Mazak Nexus VCN-510C II 1.jpg

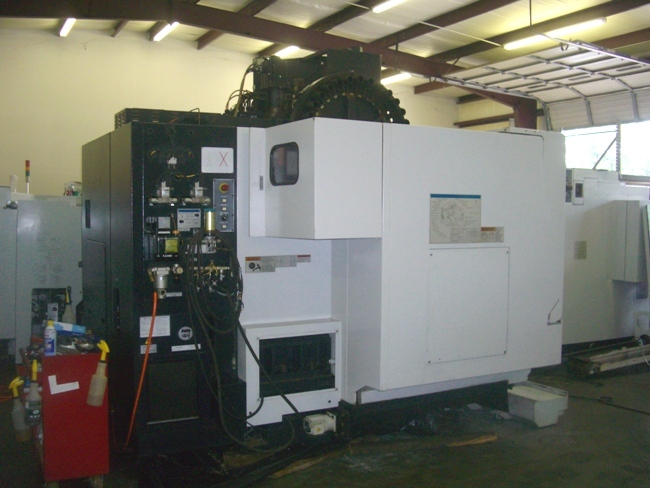

MazakNexus VCN-510C II15452http://www.machinetools247.com/images/machines/15452-Mazak Nexus VCN-510C II 2.jpg
MazakNexus VCN-510C II15452http://www.machinetools247.com/images/machines/15452-Mazak Nexus VCN-510C II 2.jpg

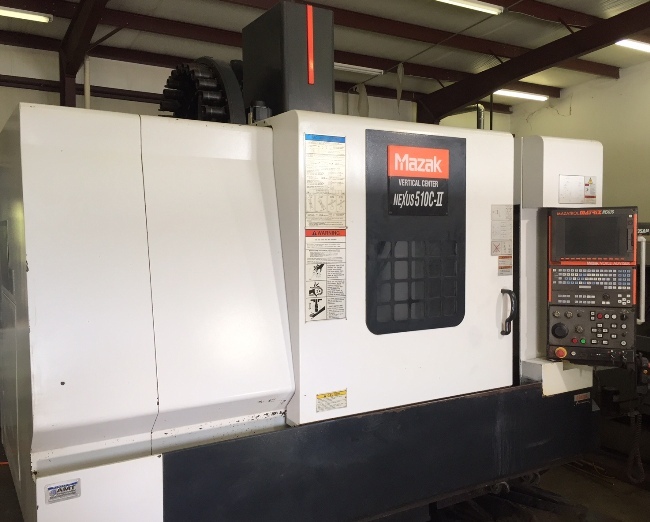

MazakNexus VCN-510C II15452http://www.machinetools247.com/images/machines/15452-Mazak Nexus VCN-510C II 3.jpg

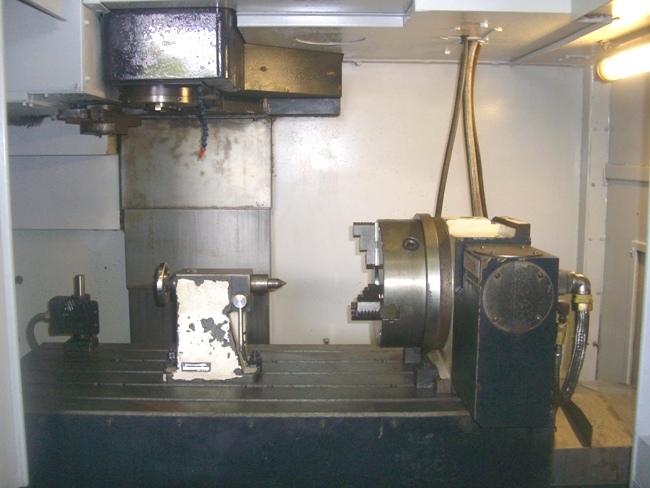

MazakNexus VCN-510C II15452http://www.machinetools247.com/images/machines/15452-Mazak Nexus VCN-510C II 4.jpg

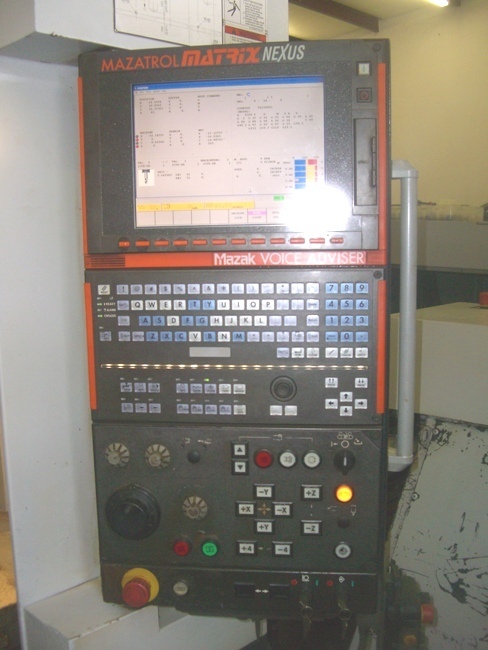

MazakNexus VCN-510C II15452http://www.machinetools247.com/images/machines/15452-Mazak Nexus VCN-510C II 5.jpg
