Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

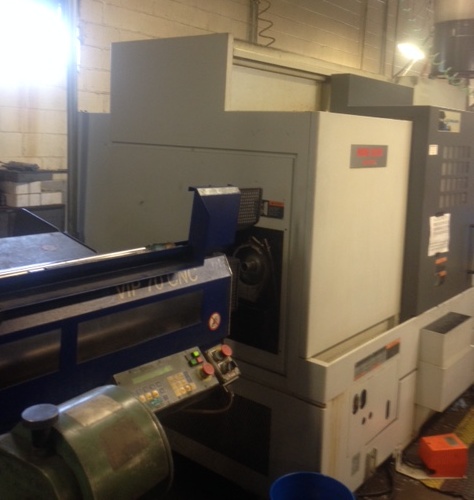

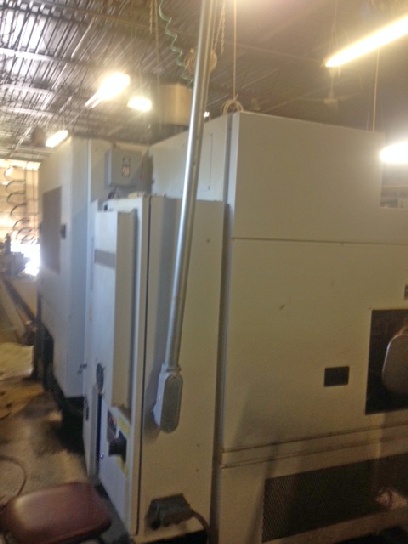

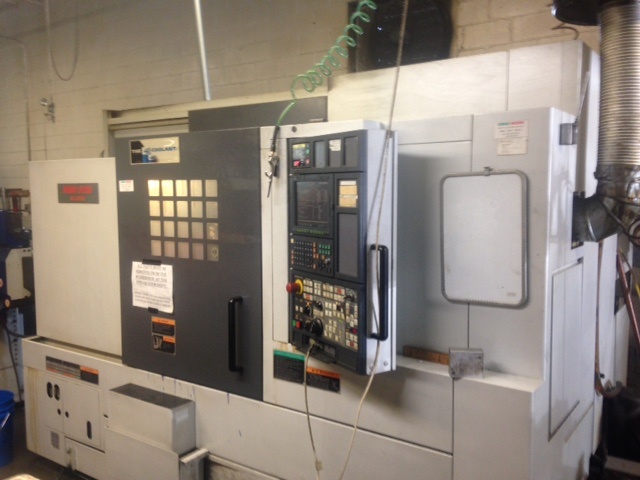

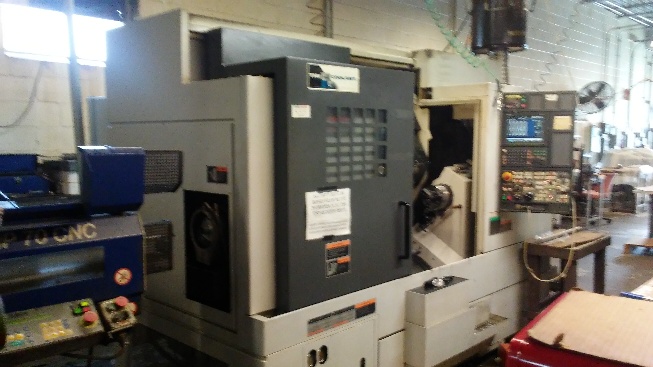

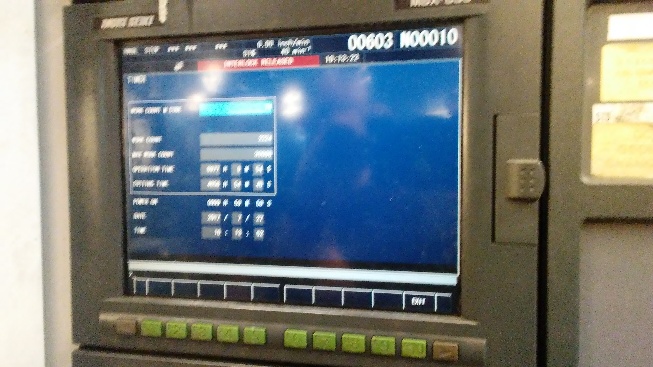

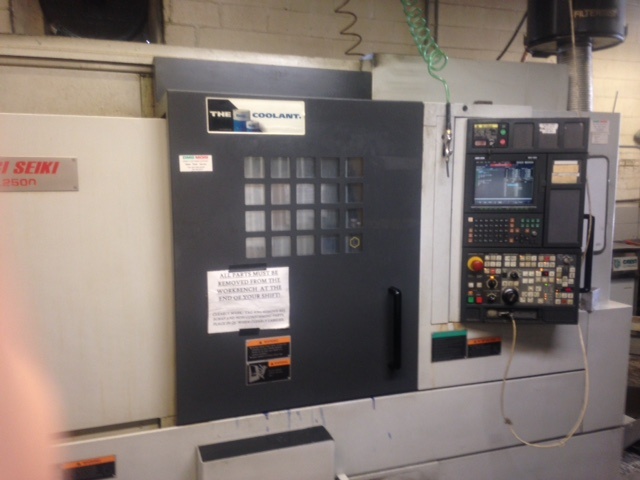

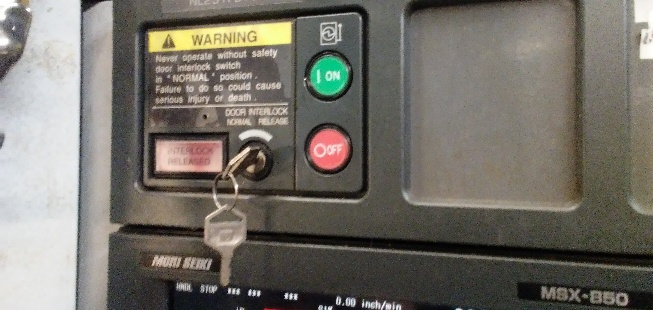

154452004Mori-SeikiNL-2500 SY - 700Mori-Seiki MSX-850 III

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide36.37" / 29.72"
 Maximum Turning Diameter / Maximum Turning Length14.01" / 27.75"
 Distance Between Spindles29"
Spindle:Spindle Speeds Minimum - Maximum40 - 4,000 RPM
 Spindle Bore / Bar Capacity / Nose3.58" / 3.1" / A2-8
 Main Motor (30 min / continuous)25 / 20 HP
Sub-Spindle:Speeds60 - 6,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose / Indexing1.7" / 1.2" / A2-6
 Motor (30 min. / cont.)15 / 10 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel10.24"
 Z-Axis Travel31.3"
 Y-Axis Travel3.9"
 B-Axis Travel28.9"
Rotary Tools:Rotary Tool Speed60 - 6,000 RPM
 Rotary Tool Motor (30 min. / continuous)7.5 HP
Rapids:Rapid Traverse (X & Z )1,181 IPM
 Feed Rate (X & Z )0.04 - 787 IPM
Dimensions:Floor Space (L x W x H)122" x 81" x 84"
 Weight (approx)14,000 Lbs

 Equipped With

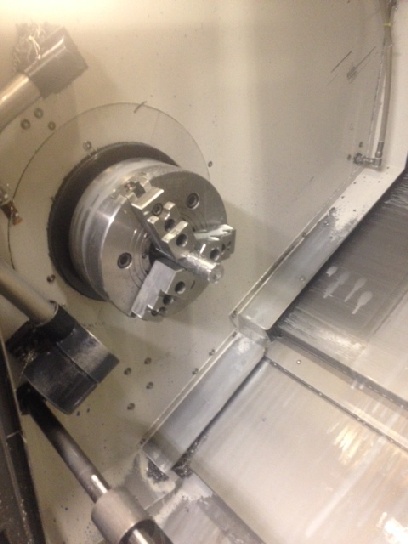

Additional Info.:10" 3-Jaw Hydraulic Chuck Main, 6" Collet Chuck Sub
 Tool Setter Both Spindles

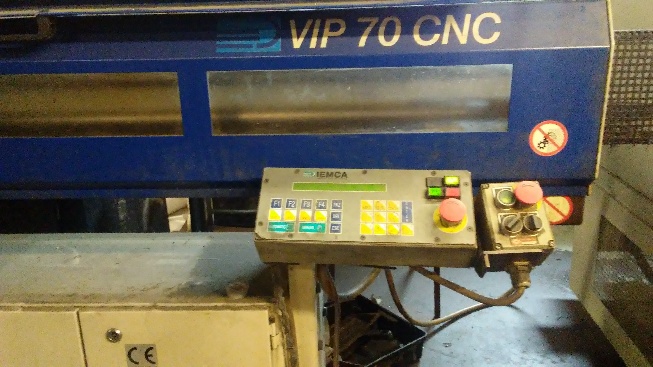

 Barfeed Interface
 Auto Parts Catcher

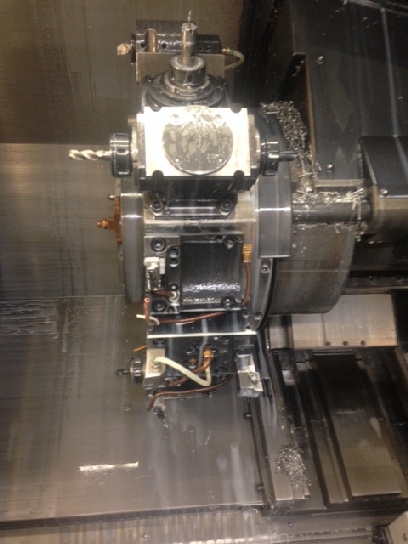

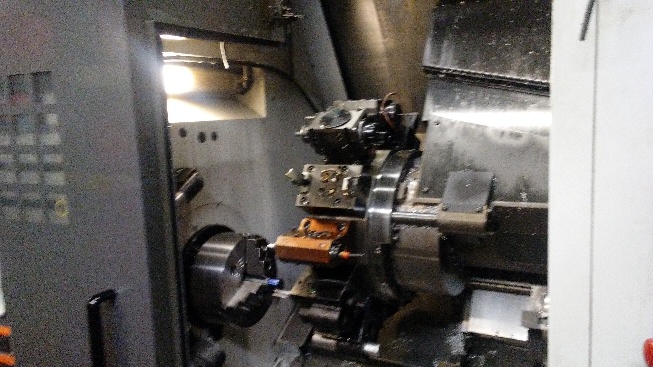

 Servo Driven Turret
 MAPPS Conversational Programming
 Live Tooling

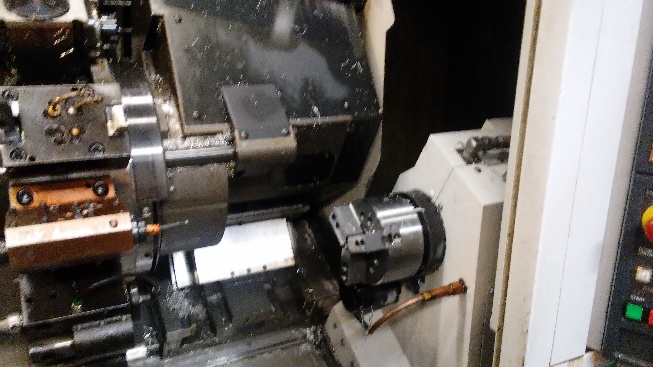

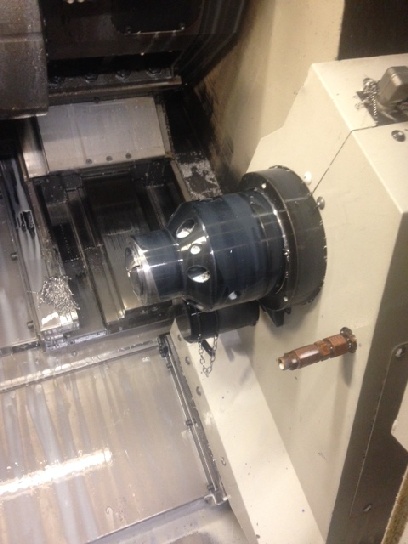

 Servo Driven Sub Spindle
 Chip Conveyor
 One (1) ID and One (1) OD Live Tools
