Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
153982001MazakIntegrex 200 II SYMazatrol Fusion 640 MT

 DescriptionSpec Values
Capacity:Swing Over Bed / Swing Over Saddle21.25" / 20.47"
 Maximum Turning Diameter / Length20.47" / 40"
Main Spindle:Spindle Speeds35 - 5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose2.4" / 1.99" / A2-6
 Main Motor (30 min. / continuous)30 / 20 HP
Sub Spindle:Spindle Speeds35 - 5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose2.44" / 1.99" / A2-6
 Main Motor (30 min. / continuous)25 / 20 HP
Turret:Number of Positions40 Station ATC
Travels:X-Axis Travel20.87"
 Z-Axis Travel42"
 Y-Axis6.3" +/-
 B-Axis Travel (sub-spindle)39.56"
Rotary Tools:Rotary Tool Speed100 - 10,000 RPM
 Rotary Tool Motor7.5 HP
Rapids:Rapid Traverse (X / Z / B)1,299 / 590 / 1,181 IPM
Dimensions:Floor Space (L x W x H)140" x 88" x 95"
 Weight (approx)13,000 Lbs

 Equipped With
Additional Info.:10" 3-Jaws Hydraulic Chuck on Main and 8" 3-Jaws Hydraulic Chuck on Sub
 EIA / ISO Programming
 Tool Eye
 Floppy Drive
 RS-232 Port
 Milling / Synchronous Tapping
 User Macros
 Part Transfer Between Spindles

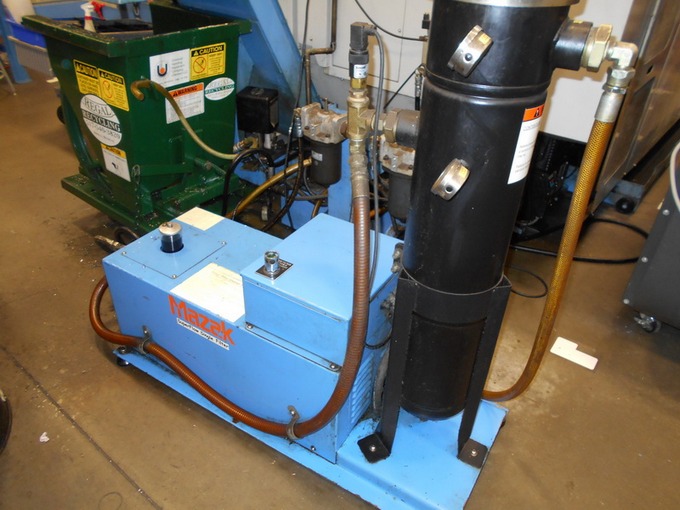

 High Pressure Coolant Through Spindle (1,000 psi)
 Coolant Filtration System
Note:Brand New Milling Spindle


Click Here To Print Quote - 15398

Click Here To Email Quote Request - 15398

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

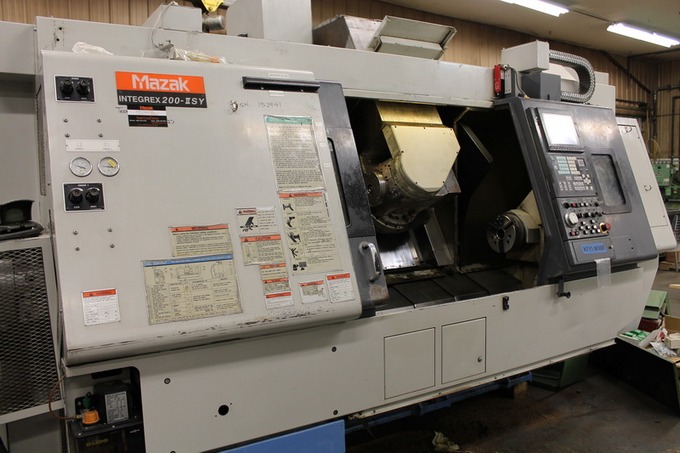

MazakIntegrex 200 II SY15398http://www.machinetools247.com/images/machines/15398-Mazak Integrex 200 II SY.jpg

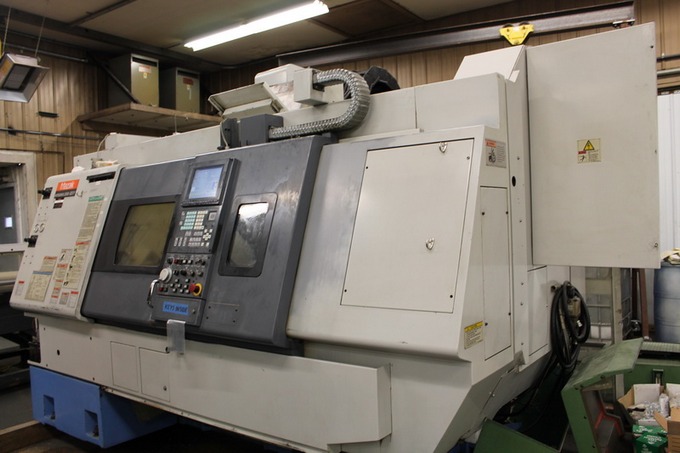

MazakIntegrex 200 II SY15398http://www.machinetools247.com/images/machines/15398-Mazak Integrex 200 II SY 1.jpg

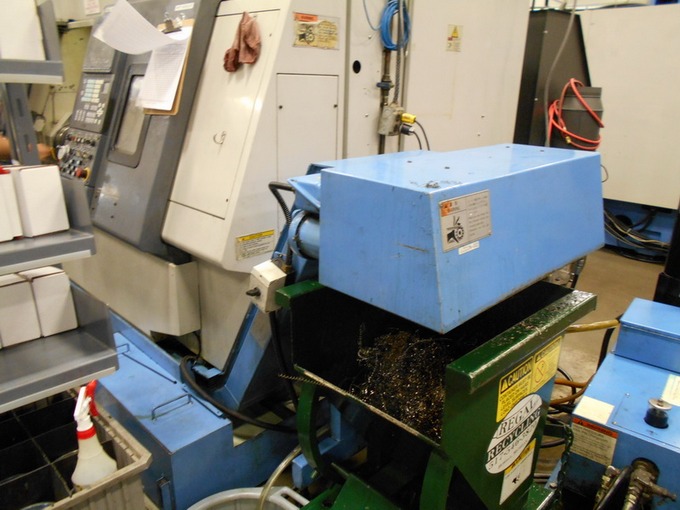

MazakIntegrex 200 II SY15398http://www.machinetools247.com/images/machines/15398-Mazak Integrex 200 II SY 2.jpg

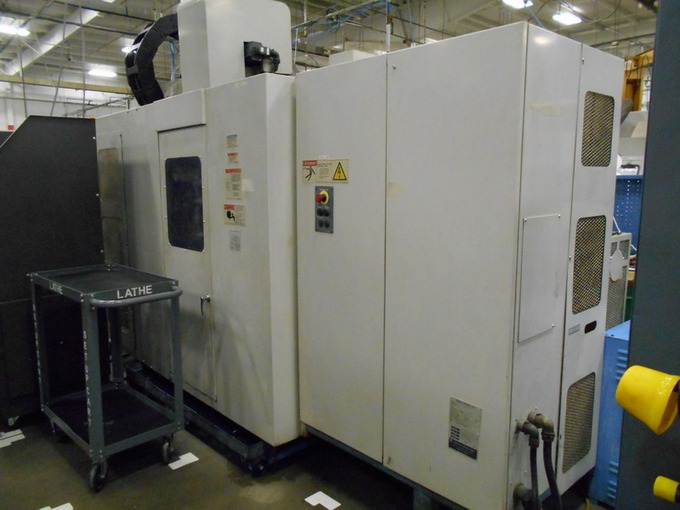

MazakIntegrex 200 II SY15398http://www.machinetools247.com/images/machines/15398-Mazak Integrex 200 II SY 3.jpg

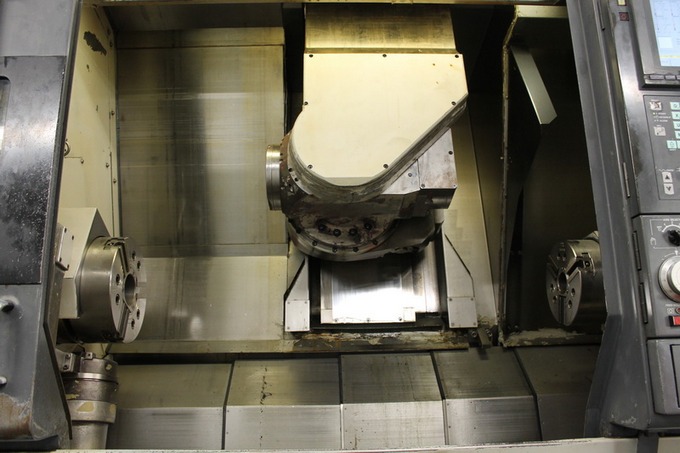

MazakIntegrex 200 II SY15398http://www.machinetools247.com/images/machines/15398-Mazak Integrex 200 II SY 4.jpg

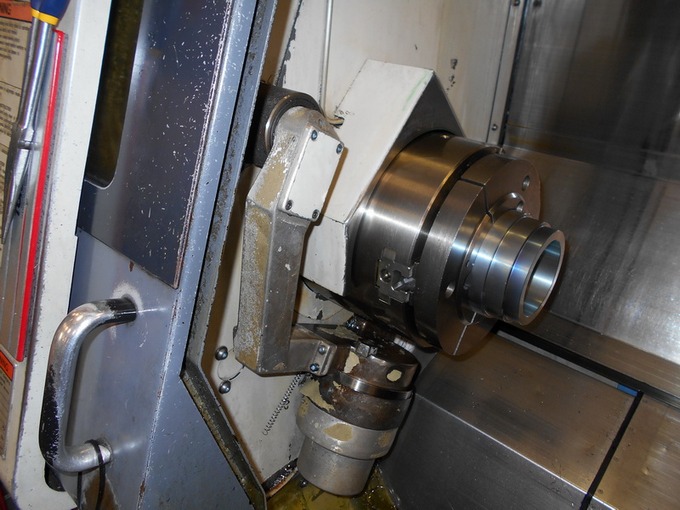

MazakIntegrex 200 II SY15398http://www.machinetools247.com/images/machines/15398-Mazak Integrex 200 II SY 5.jpg

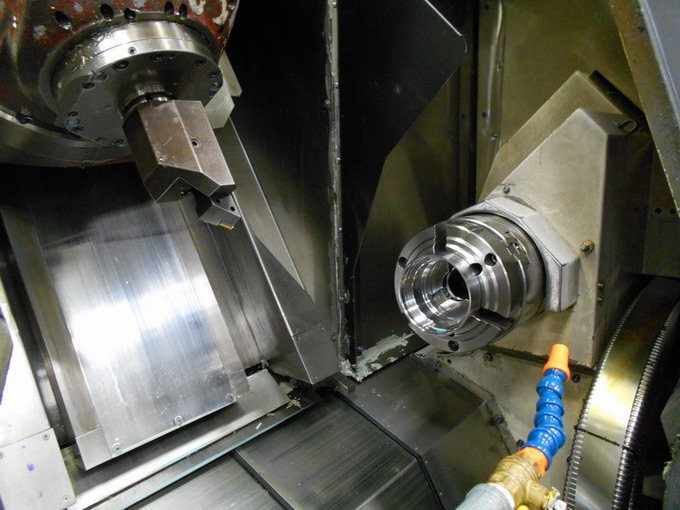

MazakIntegrex 200 II SY15398http://www.machinetools247.com/images/machines/15398-Mazak Integrex 200 II SY 6.jpg
MazakIntegrex 200 II SY15398http://www.machinetools247.com/images/machines/15398-Mazak Integrex 200 II SY 7.jpg

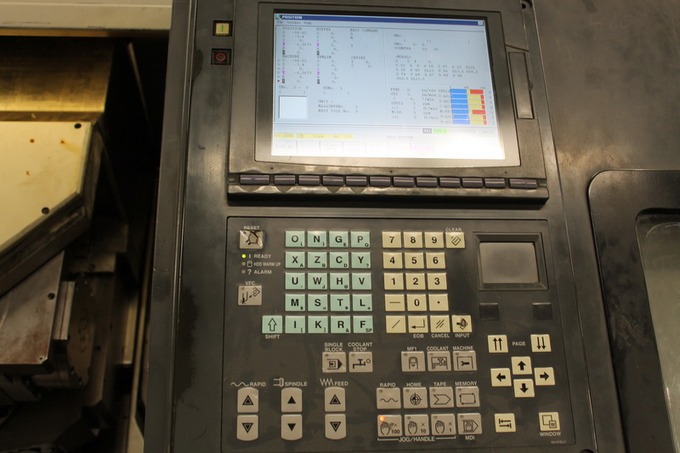

MazakIntegrex 200 II SY15398http://www.machinetools247.com/images/machines/15398-Mazak Integrex 200 II SY 8.jpg
