Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

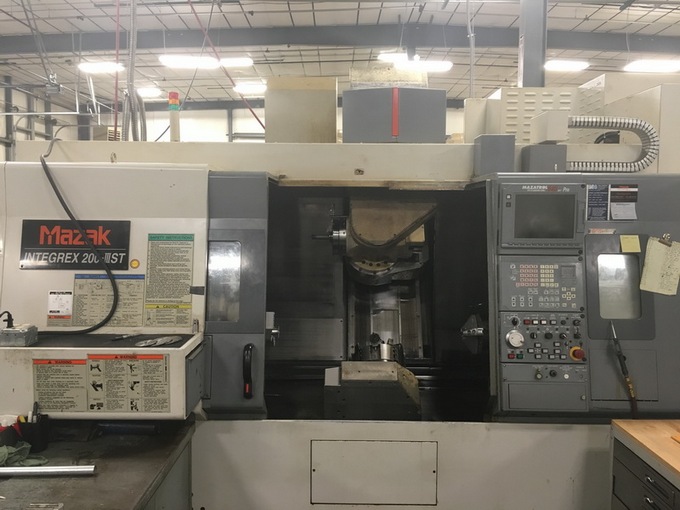

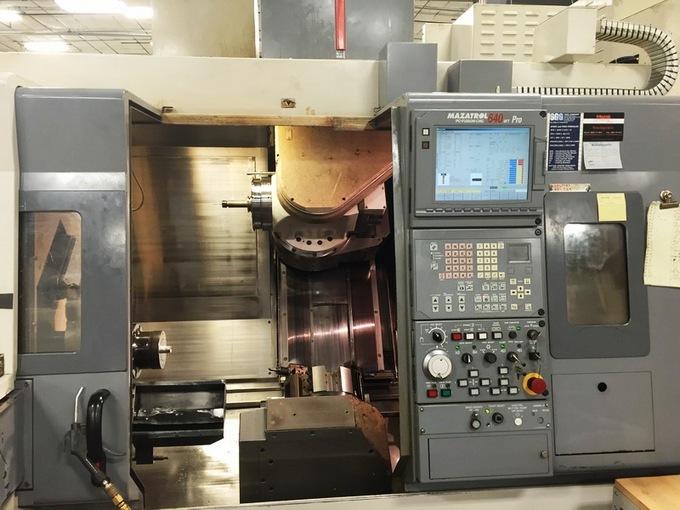

153912003MazakIntegrex 200 III STMazatrol Fusion Pro

 DescriptionSpec Values
Capacity:Maximum Swing / Swing Over Lower Turret26.5" / 16.5"
 Maximum Turning Diameter Upper / Lower / Length26" / 19.7" / 41"
Main Spindle:Speeds50 -5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose2.99" / 2" / A2-6
 Motor (30 min. / cont.)30 / 20 HP
Sub-Spindle:Speeds50 -5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose / Indexing2.99" / 2" / A2-6
 Motor (30 min. / cont.)30 / 20 HP
Rotary Tools:Rotary Tool Speed Upper Turret / Lower Turret12,000 / 6,000 RPM
 Rotary Tool Motor20 HP
Turrets:Number of Positions (ATC) / Lower Turret40 Tool ATC / 9 Sta.
Travels:X-Axis Travel / X2-Lower Turret22.83" / 5.91"
 Z-Axis Travel / Z2-Lower Turret41.14" / 38.98"
 Y-Axis Travel6.33" +/-
 B-Axis Stroke / B-Indexing / C-Indexing46.4" / 5° / 360,000°
Rapids:Rapid Traverse (X & Z / B)1,496 / 555 IPM
 Rapid Traverse (Y / Sub Spindle)1,024 / 1,181 IPM
Dimensions:Floor Space (L x W x H)201" x 96" x 103"
 Weight (approx)26,000 Lbs

 Equipped With

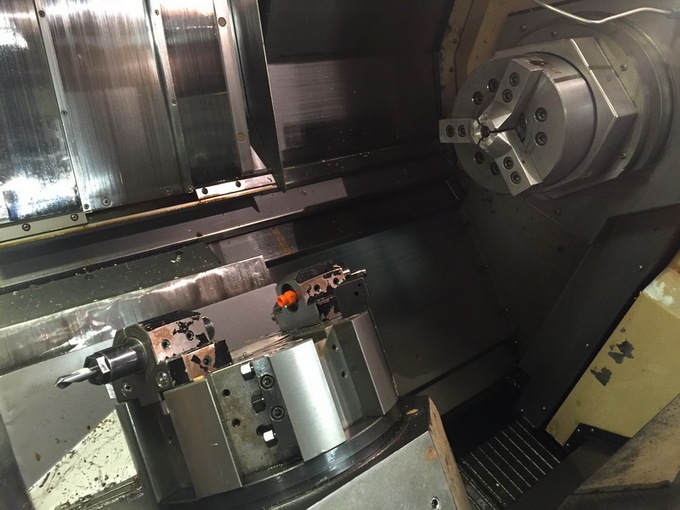

Additional Info.:8" 3-Jaw Hydraulic Chuck on Main & Sub Spindle
 213 PSI Coolant System
 Automatic Tool Eye
 Tool Life Monitor

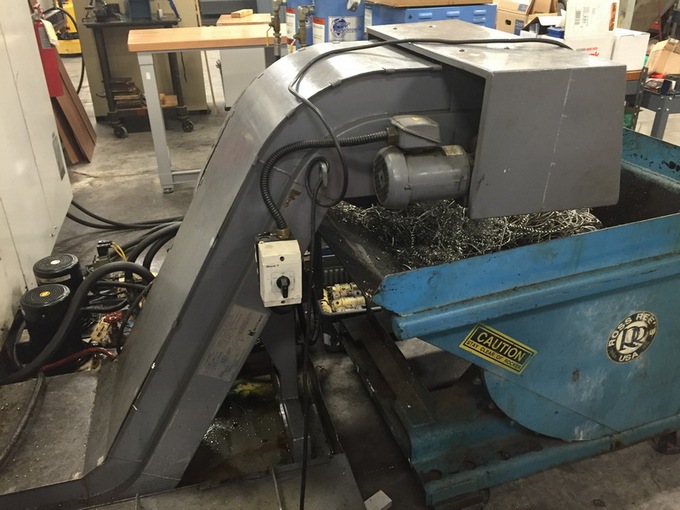

 Chip Conveyor
 Conversational Programming

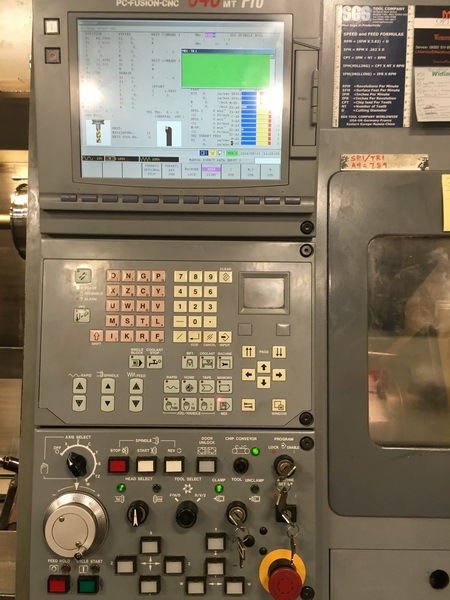

 Graphic Display
 Milling Spindle Synchronous Tapping
 EIA / ISO Input Function

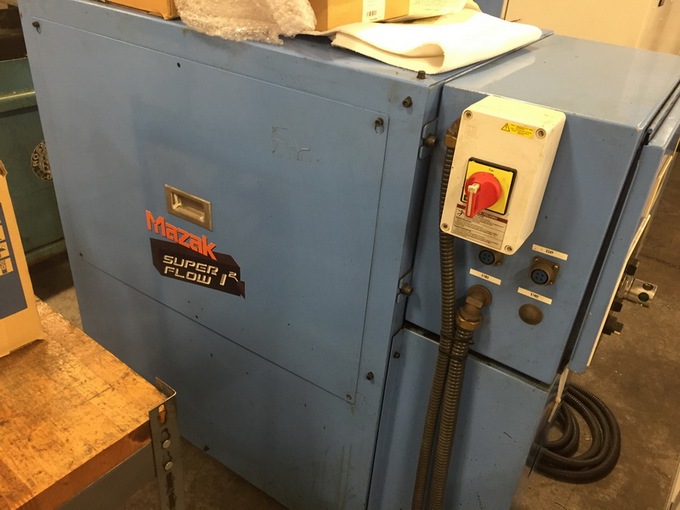

 High Pressure Coolant Through Spindle (1,000 psi)

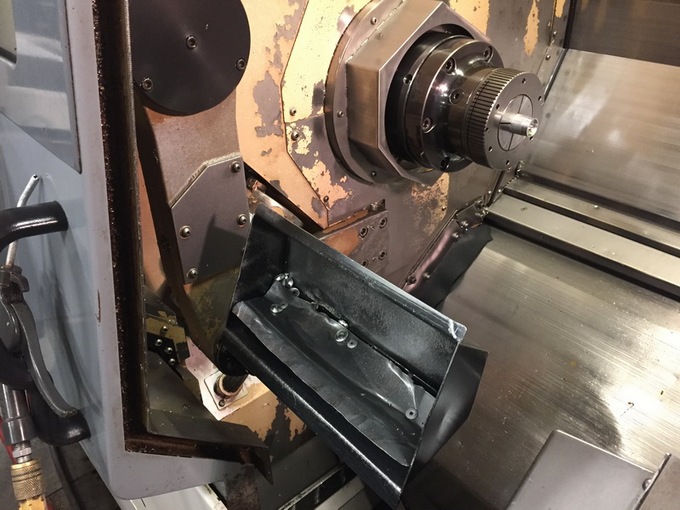

 Automatic Parts Catcher

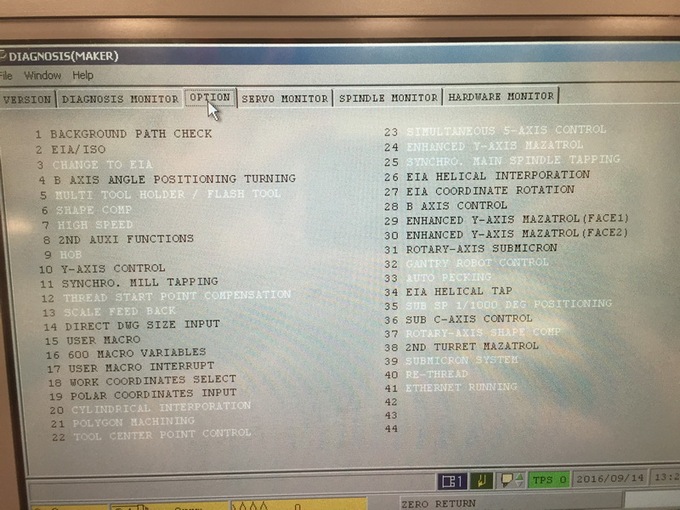

 Background Tool Path Check
 EIA Cooridate Rotation
 EIA Helical Interpolation
 User Macros
 Bar Feed Interface

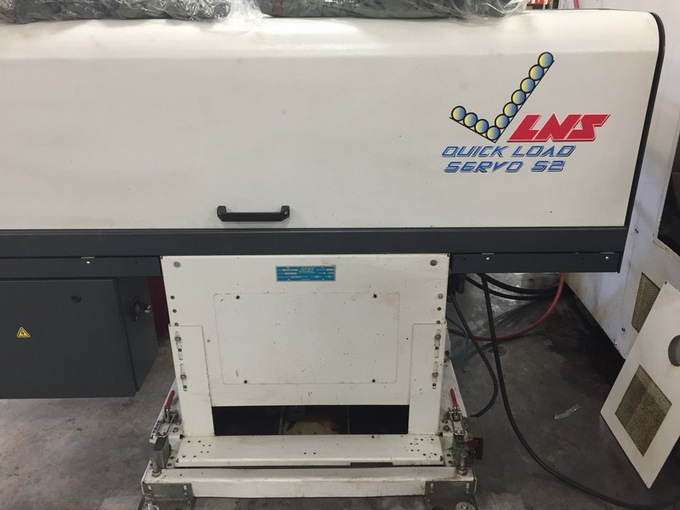

 LNS Bar Feed


Click Here To Print Quote - 15391

Click Here To Email Quote Request - 15391

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos
MazakIntegrex 200 III ST15391http://www.machinetools247.com/images/machines/15391-Mazak Integrex 200 III ST.jpg
MazakIntegrex 200 III ST15391http://www.machinetools247.com/images/machines/15391-Mazak Integrex 200 III ST 1.jpg
MazakIntegrex 200 III ST15391http://www.machinetools247.com/images/machines/15391-Mazak Integrex 200 III ST 2.jpg
MazakIntegrex 200 III ST15391http://www.machinetools247.com/images/machines/15391-Mazak Integrex 200 III ST 3.jpg
MazakIntegrex 200 III ST15391http://www.machinetools247.com/images/machines/15391-Mazak Integrex 200 III ST 4.jpg
MazakIntegrex 200 III ST15391http://www.machinetools247.com/images/machines/15391-Mazak Integrex 200 III ST 5.jpg
MazakIntegrex 200 III ST15391http://www.machinetools247.com/images/machines/15391-Mazak Integrex 200 III ST 6.jpg
MazakIntegrex 200 III ST15391http://www.machinetools247.com/images/machines/15391-Mazak Integrex 200 III ST 7.jpg
MazakIntegrex 200 III ST15391http://www.machinetools247.com/images/machines/15391-Mazak Integrex 200 III ST 8.jpg
MazakIntegrex 200 III ST15391http://www.machinetools247.com/images/machines/15391-Mazak Integrex 200 III ST 9.jpg
MazakIntegrex 200 III ST15391http://www.machinetools247.com/images/machines/15391-Mazak Integrex 200 III ST 10.jpg
