Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
153762007MazakQuick Turn Nexus-200 IIMazatrol Matrix

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide24.02" / 14.75"
 Maximum Turning Diameter / Length13.78" / 20.16"
Main Spindle:Speeds50 - 5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose2.99" / 2.01" / A2-6
 Motor (30 min / continuous)35 / 30 HP
Turret:Number of Positions12 Positions
Travels:X-Axis Travel8.75"
 Z-Axis Travel21.13"
Tailstock:Stroke of Body / Quill21.75" / 4.1"
 Quill Diameter / Taper3.9" / MT # 5
Rapids:Rapid Traverse (X / Z )1,181 / 1,299 IPM
Dimensions:Floor Space106" x 81" x 75"
 Weight (approx)11,000 Lbs

 Equipped With
Additional Info.:8" 3-Jaw Hydraulic Chuck
 Automatic Tool Eye
 Programmable Tailstock
 RS-232 Port
 Chip Conveyor
 Multi Tap Transformer
 USB Port
 EIA / ISO Input Function
 User Macros


Click Here To Print Quote - 15376

Click Here To Email Quote Request - 15376

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

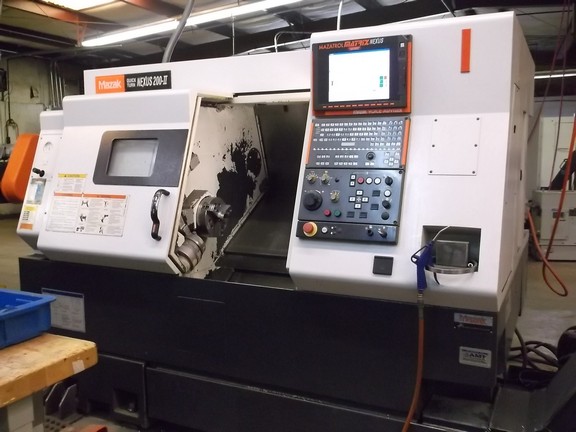

MazakQuick Turn Nexus-200 II15376http://www.machinetools247.com/images/machines/15376-Mazak Quick Turn Nexus-200 II.jpg

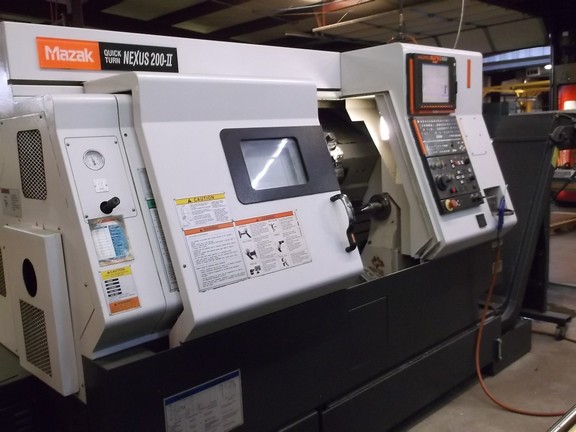

MazakQuick Turn Nexus-200 II15376http://www.machinetools247.com/images/machines/15376-Mazak Quick Turn Nexus-200 II a.jpg
MazakQuick Turn Nexus-200 II15376http://www.machinetools247.com/images/machines/15376-Mazak Quick Turn Nexus-200 II b.jpg

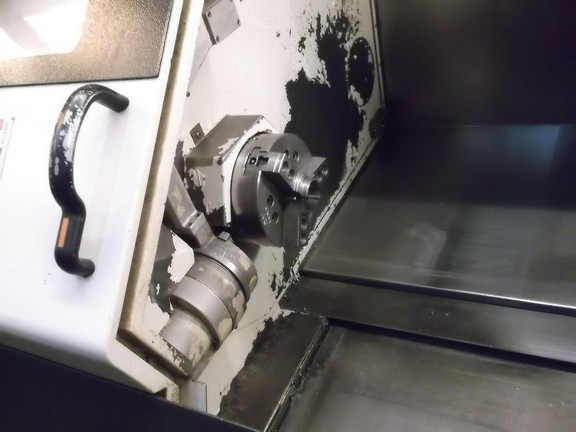

MazakQuick Turn Nexus-200 II15376http://www.machinetools247.com/images/machines/15376-Mazak Quick Turn Nexus-200 II c.jpg

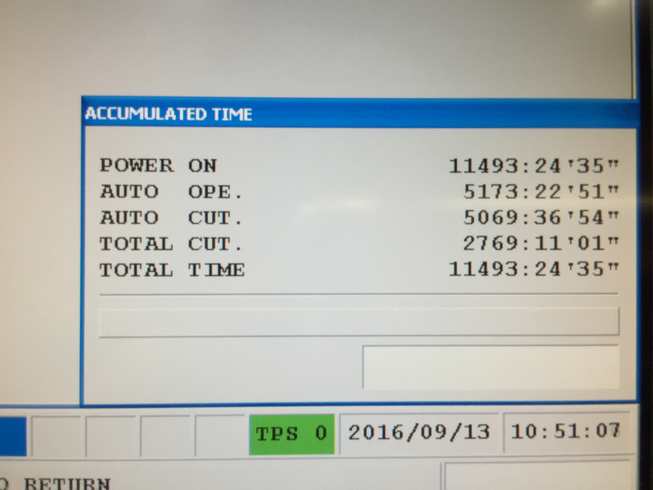

MazakQuick Turn Nexus-200 II15376http://www.machinetools247.com/images/machines/15376-Mazak Quick Turn Nexus-200 II d.jpg
