Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
153562004Mori-SeikiNH-4000 - 40 DCGMori-Seiki MSX-501

 DescriptionSpec Values
Pallet:Pallet Size (2 Pallets)15.75" x 15.75"
 Pallet Indexing / Table Load1° / 880 Lbs
Travels:X-Axis Travel22.047"
 Y-Axis Travel22.047"
 Z-Axis Travel24.803"
Spindle:Spindle Speeds Minimum - Maximum50 - 14,000 RPM
 Spindle Taper40 Taper
 Main Motor (30 min / continuous)25 / 20 HP
 Spindle Center to Table Top3.9" - 28.7"
Tool Changer:Tool Changer Positions40 ATC
 Tool Change Time (Tool-to-Tool / Chip-to-Chip).9 / 2.3 Sec.
Rapids:Rapid Traverse (X, Y & Z )1,968 IPM
 Feed Rate1,969 IPM
Dimensions:Floor Space (L x W x H)148" x 91" x 103"
 Weight (approx.)22,500 Lbs

 Equipped With
Additional Info.:Chip Conveyor
 Rigid Tapping
 Coolant Through Spindle
 RS-232 Port
 CoolJet Coolant Pump
 Auto Tool Length Measurement System
 Tool Life Management
Note:Needs New Spindle


Click Here To Print Quote - 15356

Click Here To Email Quote Request - 15356

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

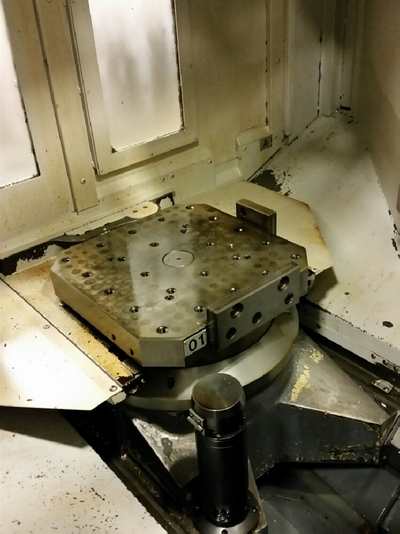

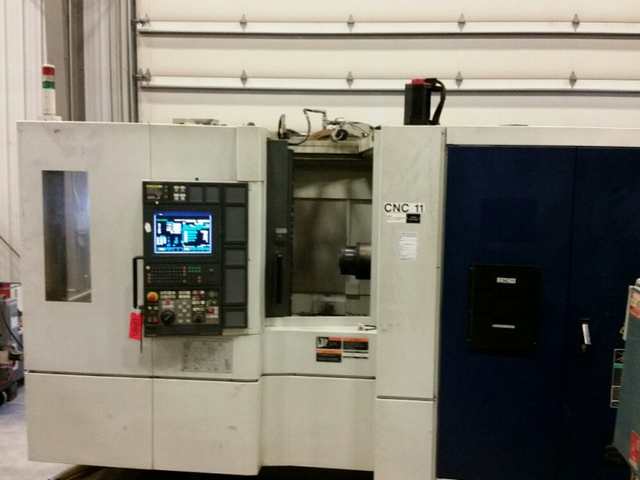

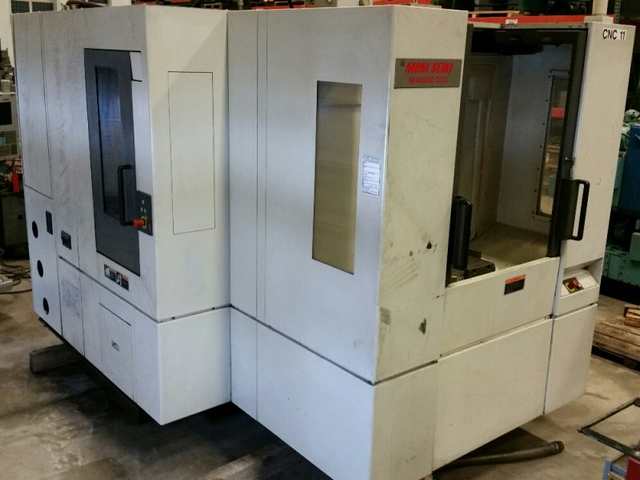

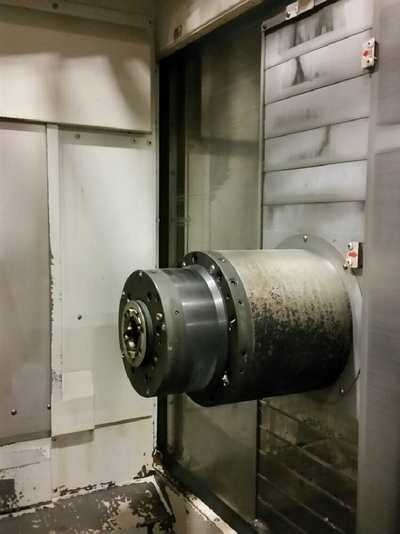

Mori-SeikiNH-4000 - 40 DCG15356http://www.machinetools247.com/images/machines/15356-Mori-Seiki NH-4000 - 40 DCG.jpg
Mori-SeikiNH-4000 - 40 DCG15356http://www.machinetools247.com/images/machines/15356-Mori-Seiki NH-4000 - 40 DCG 1.jpg
Mori-SeikiNH-4000 - 40 DCG15356http://www.machinetools247.com/images/machines/15356-Mori-Seiki NH-4000 - 40 DCG 2.jpg
Mori-SeikiNH-4000 - 40 DCG15356http://www.machinetools247.com/images/machines/15356-Mori-Seiki NH-4000 - 40 DCG 3.jpg
