Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
153132007OkumaMC V-4020OSP-P200M

 DescriptionSpec Values
Table:Table Size48.37" x 20.08"
 Maximum Table Load1,500 Lbs
Travels:X-Axis Travel40"
 Y-Axis Travel20.08"
 Z-Axis Travel17.72"
 Spindle Nose to Table Top6.3" - 24.02"
Spindle:Spindle Speeds Minimum - Maximum40 - 15,000 RPM
 Spindle Taper40 Taper
 Main Motor (30 min. / cont.)20 / 15 HP
Tool Changer:Tool Changer Positions / Tool-to-Tool32 ATC / 6 Sec
Rapids:Rapid Traverse (X & Y, Z)1,417 / 1,181 IPM
 Feed Rate.01 - 1,191 IPM
Dimensions:Floor Space (L x W x H)128" x 108" x 112"
 Weight (approx.)16,000 Lbs

 Equipped With
Additional Info.:Chip Conveyor
 RS-232 Port
 Remote Jog Handle
 Coolant Trough Spindle
 Turbo Microfine Chip Conveyor
 Chip Blaster Unit
 Renshaw Probe (OMP4O)
 Renshaw Tool Laser (NC-3)
 4th Axis Interface
 THINC Control
 Rotary Table


Click Here To Print Quote - 15313

Click Here To Email Quote Request - 15313

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

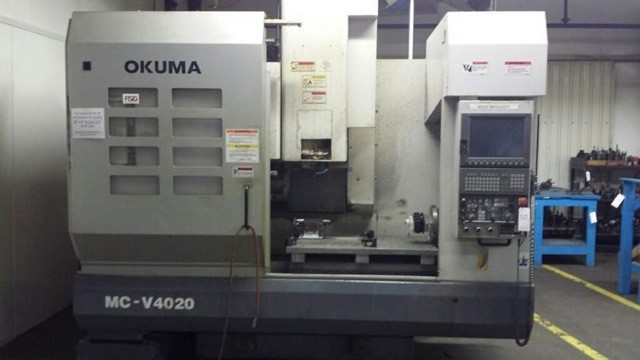

OkumaMC V-402015313http://www.machinetools247.com/images/machines/15313-Okuma MC V-4020.jpg

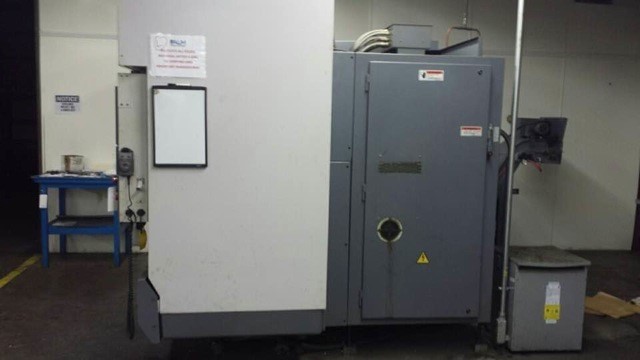

OkumaMC V-402015313http://www.machinetools247.com/images/machines/15313-Okuma MC V-4020 a.jpg
