Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
152862002MazakVTC-300CMazatrol Fusion 640 M

 DescriptionSpec Values
Table:Table Size78.74" x 30"
 Maximum Table Load3,300 Lbs
Travels:X-Axis Travel65.35"
 Y-Axis Travel29.75"
 Z-Axis Travel32"
 Spindle Nose to Table Top7.09" - 33.07"
Spindle:Spindle Speeds Minimum - Maximum40 - 10,000 RPM
 Spindle Taper40 Taper
 Main Motor (10 min. / 30 min. / continuous)20 / 15 HP
Tool Changer:Tool Changer Positions (tool-to-tool / chip-to-chip)48 ATC / 1.5 / 4.7 Sec.
Rapids:Rapid Traverse (X & Z)1,180 IPM
 Cutting Feed Rate787 IPM
Dimensions:Floor Space (L x W x H)190" x 137" x 122"
 Weight (approx.)19,000 Lbs

 Equipped With
Additional Info.:Conversational Programming
 EIA / ISO Input Functions
 Helical Interpolation
 Graphic Display
 Rigid Tapping
 Chip Conveyor
 Backround Toolpath Check
 Circle Mill Function G-130
 Coolant Through Spindle
 Auto Tool Length Measurement Probe
 EIA Helical Tapping Cycle-Thread Milling
 Adaptive Feedrate Control
 Tool Breakage Detection
 Tool Life Monitoring
 EIA Tornado Cycle-Boring


Click Here To Print Quote - 15286

Click Here To Email Quote Request - 15286

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos
MazakVTC-300C15286http://www.machinetools247.com/images/machines/15286-Mazak VTC-300C.jpg

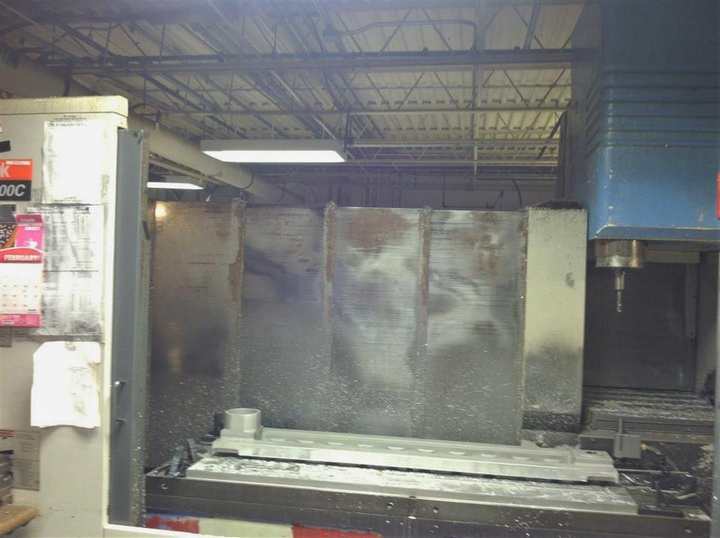

MazakVTC-300C15286http://www.machinetools247.com/images/machines/15286-Mazak VTC-300C 1.jpg

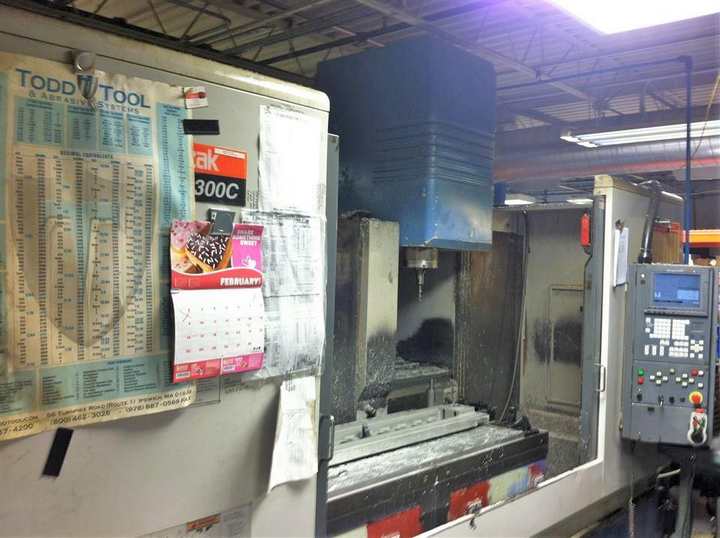

MazakVTC-300C15286http://www.machinetools247.com/images/machines/15286-Mazak VTC-300C 2.jpg

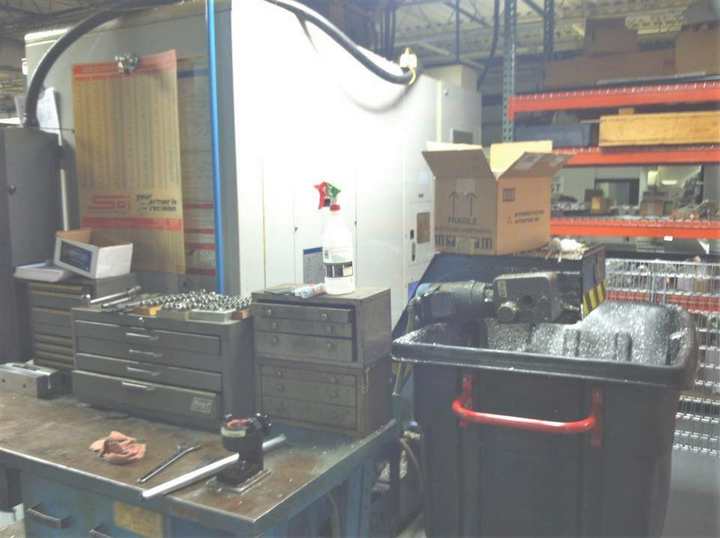

MazakVTC-300C15286http://www.machinetools247.com/images/machines/15286-Mazak VTC-300C 3.jpg
