Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
152142008MazakQuick Turn Nexus-400 IIMazatrol Matrix

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide33.6" / 24.2"
 Maximum Turning Diameter / Maximum Turning Length22.8" / 83.46"
 Distance Between Centers84"
Spindle:Spindle Speeds Minimum - Maximum25 - 2,500 RPM
 Spindle Bore / Bar Capacity / Nose5.2" / 4.63" / A2-11
 Main Motor (30 min / continuous)50 / 40 HP
Turret:Number of Positions (Modified VDI)12 Station - All Live
Travels:X-Axis Travel12.13"
 Z-Axis Travel83.46"
Tailstock:Stroke of Body / Quill82" / 4.1"
 Quill Diameter / Taper4.1" / MT # 5
Rapids:Rapid Traverse (X / Z / C )1,181 / 1,299 / 555 IPM
Dimensions:Floor Space (L x W x H)180" x 92" x 80"
 Weight (approx.)20,500 Lbs

 Equipped With
Additional Info.:12" 3-Jaw Hydraulic Chuck
 Tool Pre-Setter
 RS-232 Interface
 Multi-Tap Transformer
 Servo Driven Tailstock
 Chip Conveyor
 Servo Driven Turret
 USB Port
 Ethernet Port
 EIA / ISO Input Function
 1 Meg of Memory
 Graphic Display


Click Here To Print Quote - 15214

Click Here To Email Quote Request - 15214

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

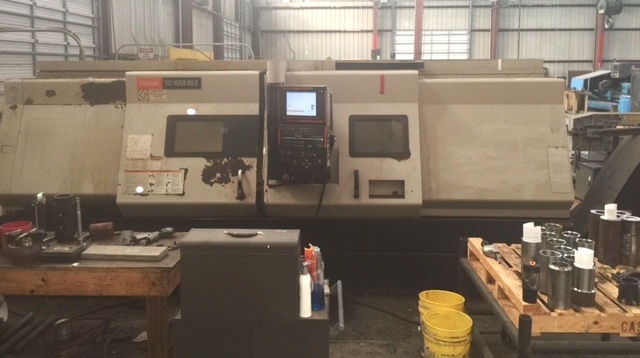

MazakQuick Turn Nexus-400 II15214http://www.machinetools247.com/images/machines/15214-Mazak Quick Turn Nexus-400 II.jpg

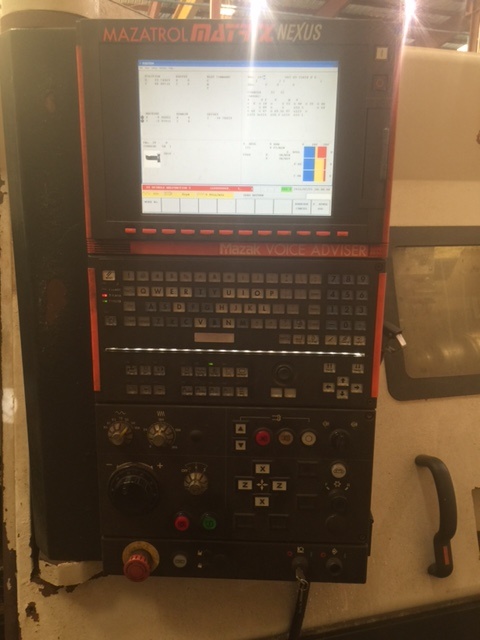

MazakQuick Turn Nexus-400 II15214http://www.machinetools247.com/images/machines/15214-Mazak Quick Turn Nexus-400 II 1.jpg
