Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

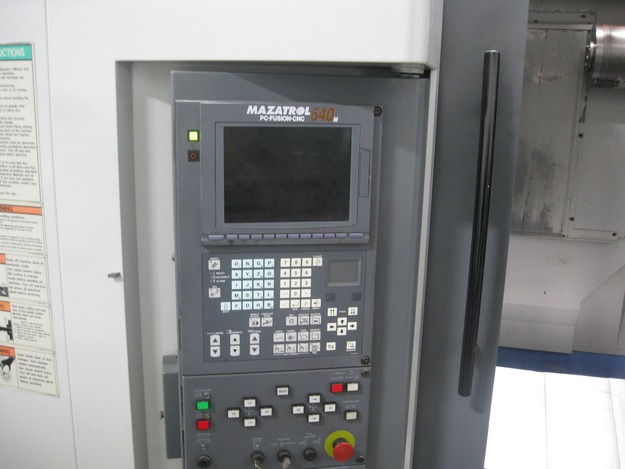

151342003MazakFH-5800Mazatrol Fusion 640 M

 DescriptionSpec Values
Pallet:Pallet Size (2 Pallets)19.69" x 19.69"
 Maximum Work Piece (H x D)28.8" x 30.2"
 Pallet Indexing / Maximum Load on Pallet360,000° / 1,100 Lbs
Travels:X-Axis Travel28.74"
 Y-Axis Travel28.74"
 Z-Axis Travel29.13"
Spindle:Spindle Speeds150 - 15,000 RPM
 Spindle Taper40 Taper
 Main Motor (30 min. / cont.)30 / 15 HP
 Spindle Center to Table Top3.15" - 31.89"
Tool Changer:Tool Changer Positions40 ATC
Rapids:Rapid Traverse2,362 IPM
Dimensions:Floor Space (L x W x H)175" x 108" x 120"
 Weight (approx.)24,000 Lbs

 Equipped With

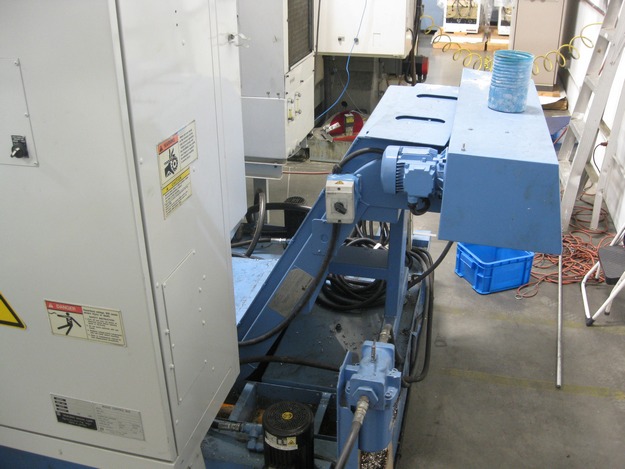

Additional Info.:Chip Conveyor (rear discharge)
 Coolant Through Spindle
 Remote Jog Handle
 EIA / ISO Input
 RS-232 Port
 Synchronized Tapping
 PCMCIA Card Slots
 Floppy Drive
 Shower Coolant


Click Here To Print Quote - 15134

Click Here To Email Quote Request - 15134

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

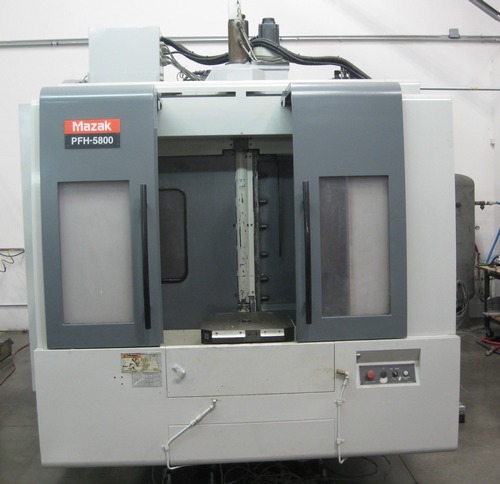

MazakFH-580015134http://www.machinetools247.com/images/machines/15134-Mazak FH-5800.jpg
MazakFH-580015134http://www.machinetools247.com/images/machines/15134-Mazak FH-5800 a.jpg
MazakFH-580015134http://www.machinetools247.com/images/machines/15134-Mazak FH-5800 b.jpg
MazakFH-580015134http://www.machinetools247.com/images/machines/15134-Mazak FH-5800 c.jpg
MazakFH-580015134http://www.machinetools247.com/images/machines/15134-Mazak FH-5800 d.jpg
