Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
151002003Mori-SeikiZT-2500 YMori-Seiki MSX-501

 DescriptionSpec Values
Capacity:Maximum Swing Main / Distance Between Spindle Noses14.96" / 51.2"
 Maximum Turning Diameter / Maximum Length14.96" / 38.8"
Main Spindle:Speeds40 - 4,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose3.48" / 2.87" / A2-8
 Motor (30 min. / cont.)30 / 24.7 HP
Sub-Spindle:Speeds40 - 4,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose / Indexing2.4" / 2" / A2-5
 Motor (30 min. / cont.)30 / 24.7 HP
Rotary Tools:Rotary Tool Speed (turret one / turret two)6,000 / 6,000 RPM
 Rotary Tool Motor (5 min. / 15 min. / cont.)7.5 / 5 / 3 HP
Turrets:Number of Positions (turret one & turret two)12 Tools Each - VDI
Travels:X-Axis Travel (turret one / turret two)11" / 7.9"
 Z-Axis Travel (turret one / turret two)37.8" / 38.8"
 Y-Axis Travel (turret one & turret two)2.8" +/-
 B-Axis Travel (sub-spindle)38"
Rapids:Rapid Traverse (X & Z / Y)944 / 472 IPM
 Sub Spindle Rapid Traverse / C-Axis944 / 400 IPM
Dimensions:Floor Space (L x W x H)170" x 109" x 110"
 Weight (approx)29,000 Lbs

 Equipped With
Additional Info.:10" 3-Jaw Chuck On Main and Sub Spindle
 Live Holders
 Standard Holders
 Chip Conveyor
 Tool Presetter Both Sides
 Light Curtains
 Renishaw LP2 Work Probe Both Sides
 Graphic Tool Path
 Additional M-Codes
 Extended Memory
 Light Curtains

Click Here To Print Quote - 15100

Click Here To Email Quote Request - 15100

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.


ManufacturerModelMachine IDMachine Photos

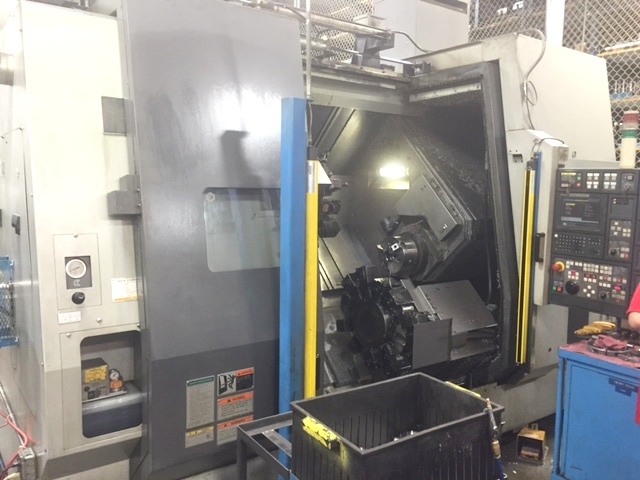

Mori-SeikiZT-2500 Y15100 ZT-2500 Y.jpg

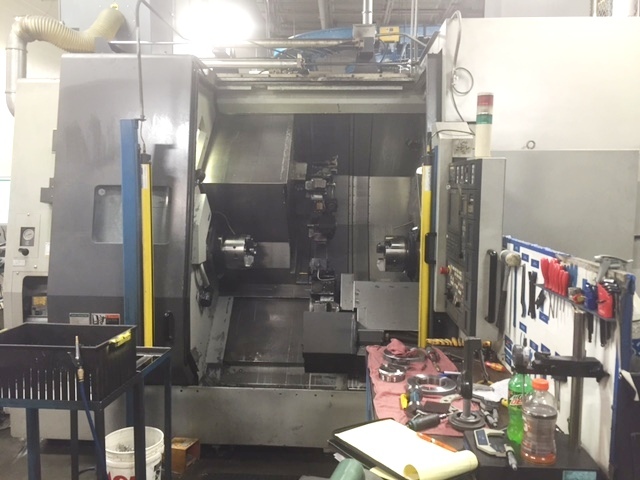

Mori-SeikiZT-2500 Y15100 ZT-2500 Y 1.jpg

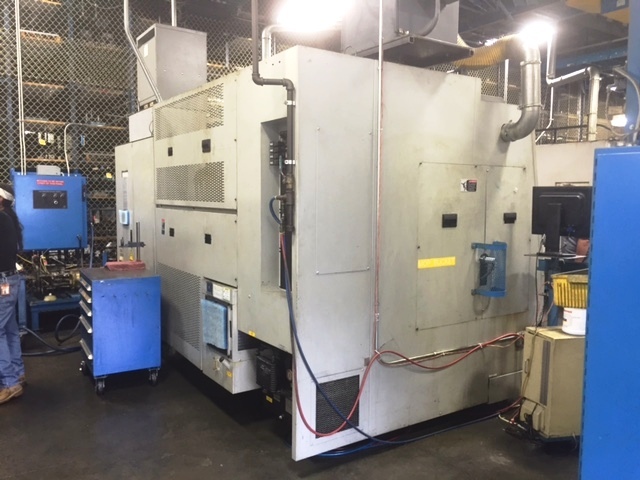

Mori-SeikiZT-2500 Y15100 ZT-2500 Y 2.jpg

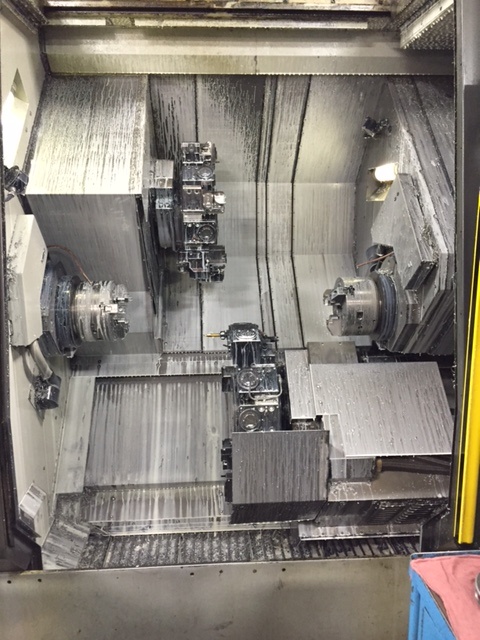

Mori-SeikiZT-2500 Y15100 ZT-2500 Y 3.jpg

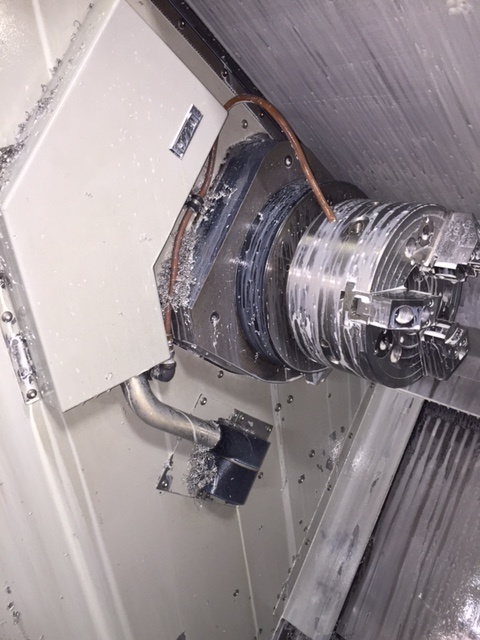

Mori-SeikiZT-2500 Y15100 ZT-2500 Y 4.jpg
Mori-SeikiZT-2500 Y15100 ZT-2500 Y 5.jpg

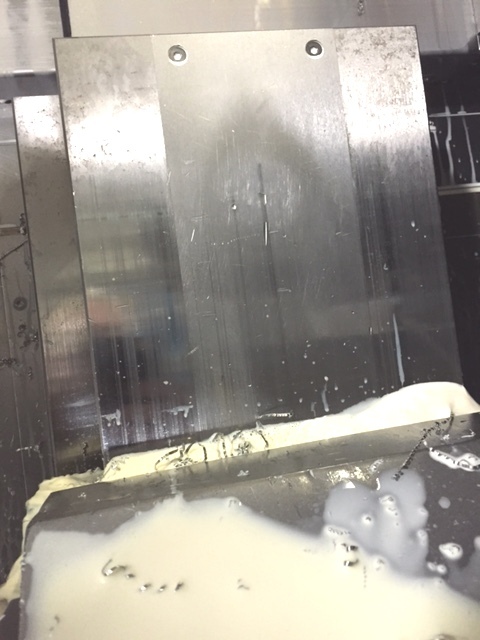

Mori-SeikiZT-2500 Y15100 ZT-2500 Y 6.jpg

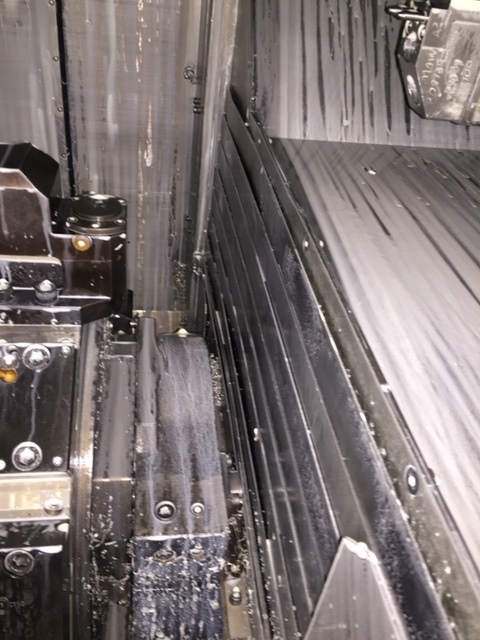

Mori-SeikiZT-2500 Y15100 ZT-2500 Y 7.jpg
Mori-SeikiZT-2500 Y15100 ZT-2500 Y 8.jpg

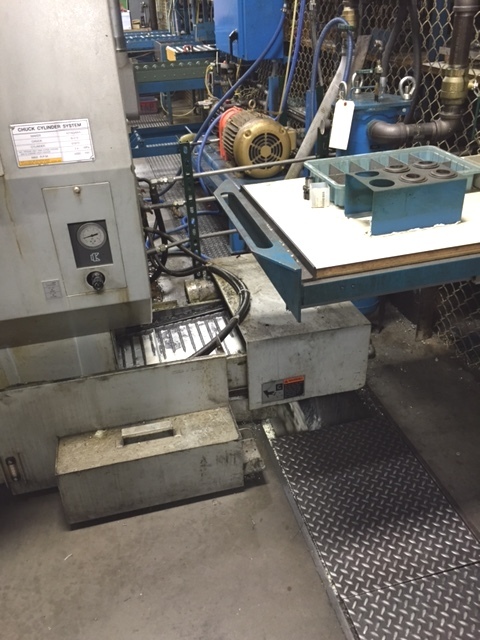

Mori-SeikiZT-2500 Y15100 ZT-2500 Y 9.jpg
