Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
148792012DoosanVM-960 LFanuc 31iA

 DescriptionSpec Values
Table:Table Size102.4" x 37.4"
 Maximum Table Load9,920 Lbs
Travels:X-Axis Travel94.5"
 Y-Axis Travel37.8"
 Z-Axis Travel31.5"
 Spindle Nose to Table Top7.9" - 39.4"
Spindle:Spindle Speeds Minimum - Maximum60 - 6,000 RPM
 Spindle Taper50 Taper Big Plus
 Main Motor (30 min. / continuous)40 / 35 HP
Tool Changer:Tool Changer Positions30 ATC
Rapids:Rapid Traverse (X, Y & Z)630 IPM
 Cutting Feed Rate276 IPM
Dimensions:Floor Space (L x W x H)268" x 130" x 140"
 Weight (approx.)58,000 Lbs

 Equipped With
Additional Info.:Coolant Through Spindle (230 PSI)
 Smart Thermal Control
 Rigid Tapping
 Remote Jog Handle
 Spindle Chiller
 Chip Augers
 Chip Conveyor
 Manual Guide i
 Big Plus Spindle
 Box Ways


Click Here To Print Quote - 14879

Click Here To Email Quote Request - 14879

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

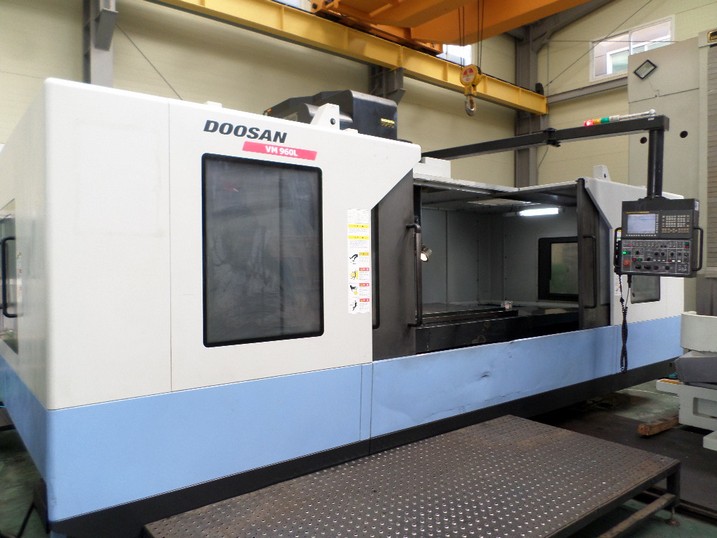

DoosanVM-960 L14879http://www.machinetools247.com/images/machines/14879-Doosan VM-960 L.jpg
