Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
147582002FadalVMC-4525 HTFadal 32MP CNC

 DescriptionSpec Values
Table:Table Size53.5" x 25"
 Maximum Table Load4,529 Lbs
Travels:X-Axis Travel45"
 Y-Axis Travel25"
 Z-Axis Travel32"
 Spindle Nose to Table Top4" - 34"
Spindle:Spindle Speeds Minimum - Maximum10 - 10,000 RPM
 Spindle Taper40 Taper
 Main Motor22.5 HP
Tool Changer:Tool Changer Positions / Change Time Tool-To-Tool24 ATC / 1.9 Sec
Rapids:Rapid Traverse (X & Y / Z)1,000 / 700 IPM
 Cutting Feed Rates.01 - 400 IPM
Dimensions:Floor Space131" x 102" x 125"
 Weight (approx)15,750 Lbs

 Equipped With
Additional Info.:Color CRT
 Dual Arm Toolchanger
 Rigid Tapping
 422K Spindle
 Chip Washdown Option
 Coolant Through Spindle
 4th Axis Interface

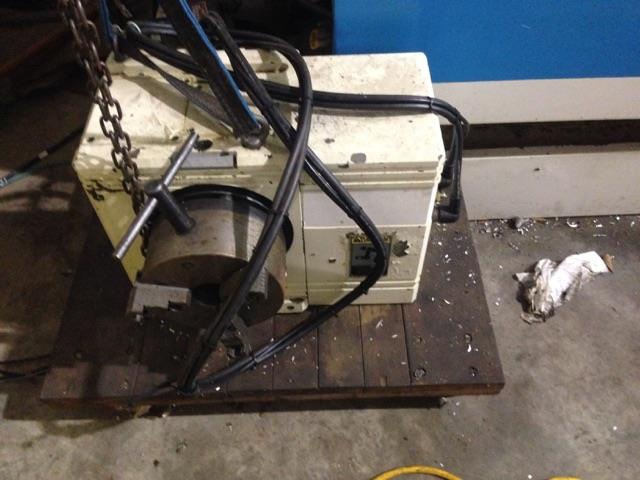

 11" Rotary Table With Tailstock
 Tool Touch Probe
 Extended Z-Axis

Click Here To Print Quote - 14758

Click Here To Email Quote Request - 14758

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.


ManufacturerModelMachine IDMachine Photos

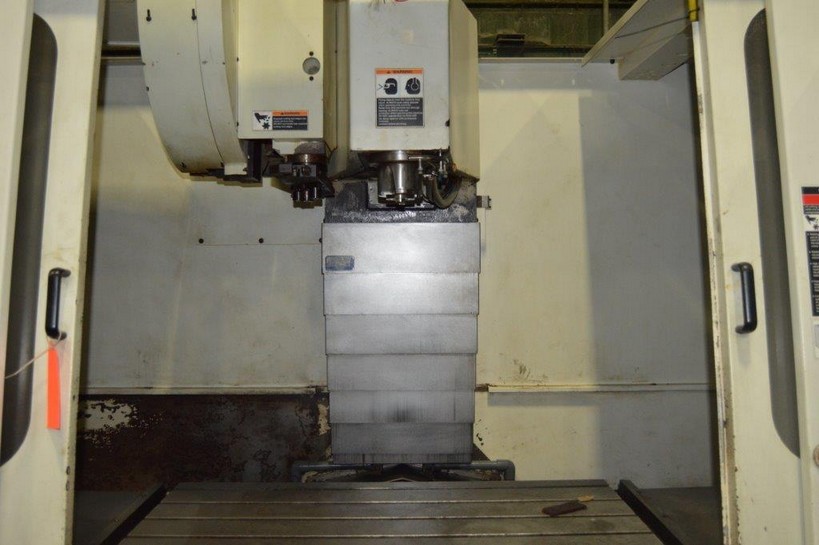

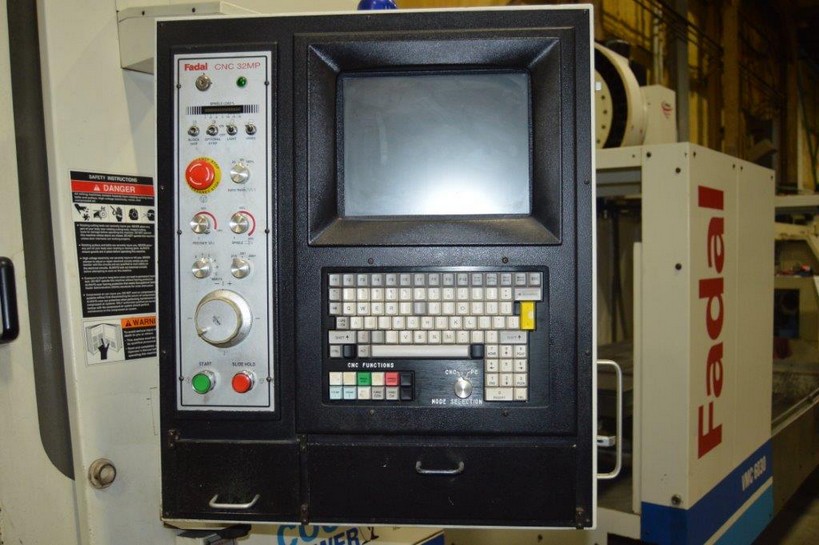

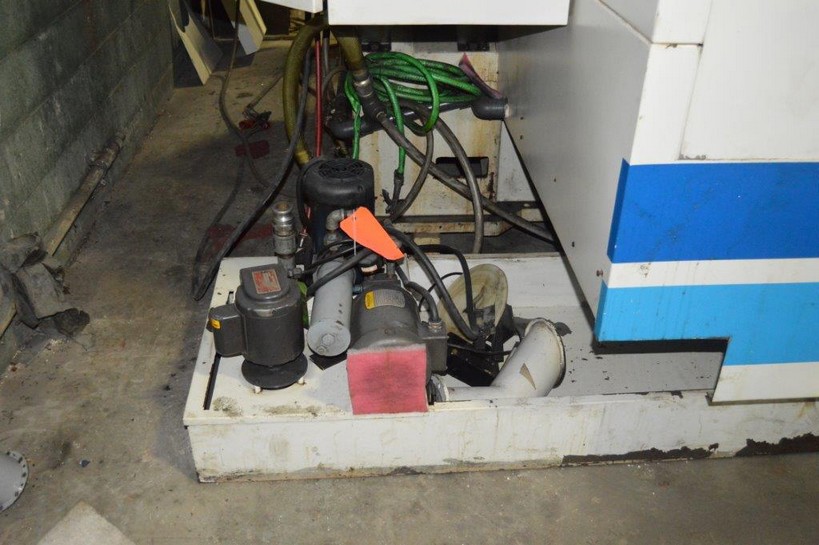

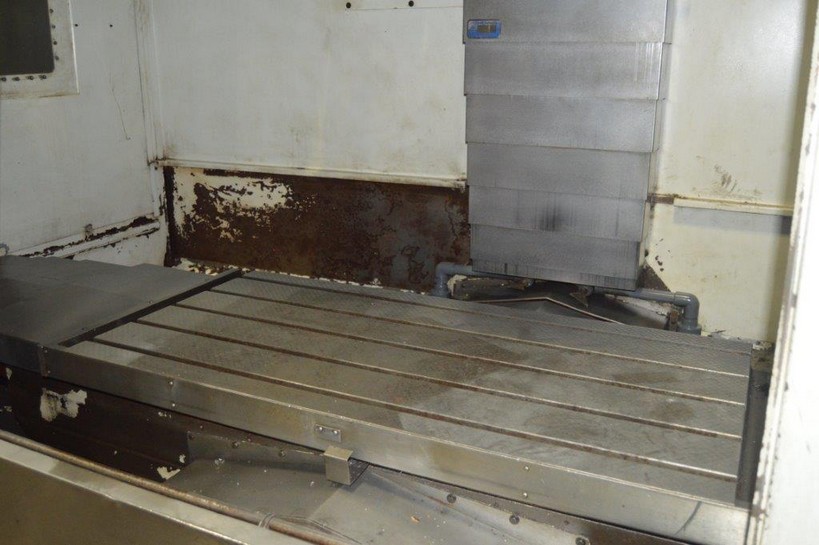

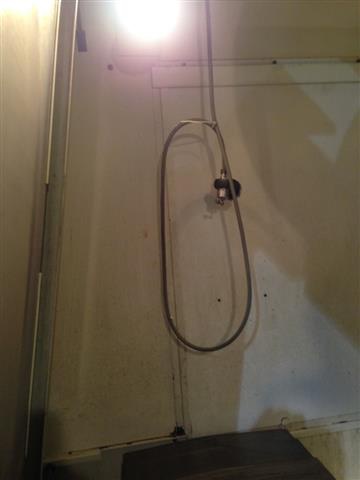

FadalVMC-4525 HT14758 VMC-4525 HT.jpg
FadalVMC-4525 HT14758 VMC-4525 HT 1.jpg
FadalVMC-4525 HT14758 VMC-4525 HT 2.jpg
FadalVMC-4525 HT14758 VMC-4525 HT 3.jpg
FadalVMC-4525 HT14758 VMC-4525 HT 4.jpg
FadalVMC-4525 HT14758 VMC-4525 HT 5.jpg
FadalVMC-4525 HT14758 VMC-4525 HT 6.jpg
