Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
147482012DoosanPuma-400 CFanuc 32iTA

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide30.3" / 23.2"
 Maximum Turning Diameter / Maximum Turning Length22.4" / 43.5"
 Distance Between Centers45"
Spindle:Spindle Speeds Minimum - Maximum20 - 2,000 RPM
 Spindle Bore / Bar Capacity / Nose7.12" / 6.55" / A2-11
 Main Motor (30 min / continuous)50 / 40 HP
Turret:Number of Positions12 Stations
Travels:X-Axis Travel14.3"
 Z-Axis Travel43.5"
Tailstock:Stroke of Body / Quill40.7" / 4.72"
 Quill Diameter / Taper4.7" / MT # 6
Rapids:Rapid Traverse (X / Z )630 / 787 IPM
Dimensions:Floor Space (L x W x H)225" x 92" x 94"
 Weight (approx.)28,000 Lbs

 Equipped With
Additional Info.:21" 3-Jaw Hydraulic Chuck
 Chip Conveyor
 Programmable Tailstock
 Tool Setter
 Two (2) Speed Geared Head
 Inch / Metric
 Chip Blaster Unit 1,000 PSI

Click Here To Print Quote - 14748

Click Here To Email Quote Request - 14748

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.


ManufacturerModelMachine IDMachine Photos

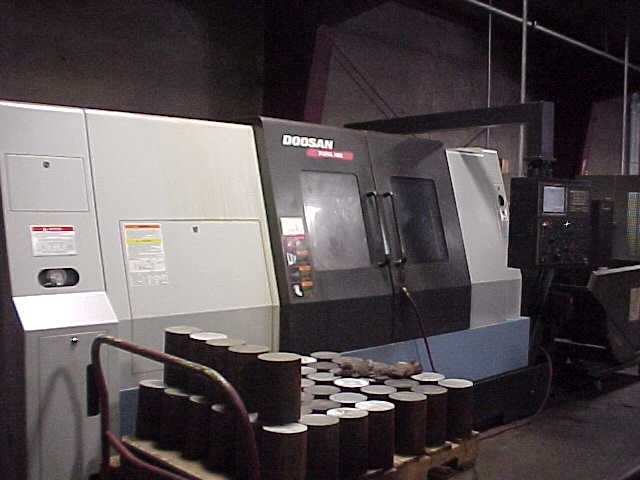

DoosanPuma-400 C14748 Puma-400 C.jpg
DoosanPuma-400 C14748 Puma-400 C 1.jpg

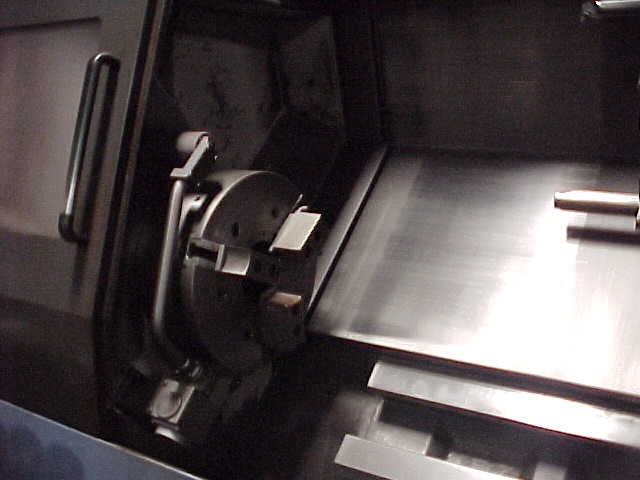

DoosanPuma-400 C14748 Puma-400 C 2.jpg
DoosanPuma-400 C14748 Puma-400 C 3.jpg

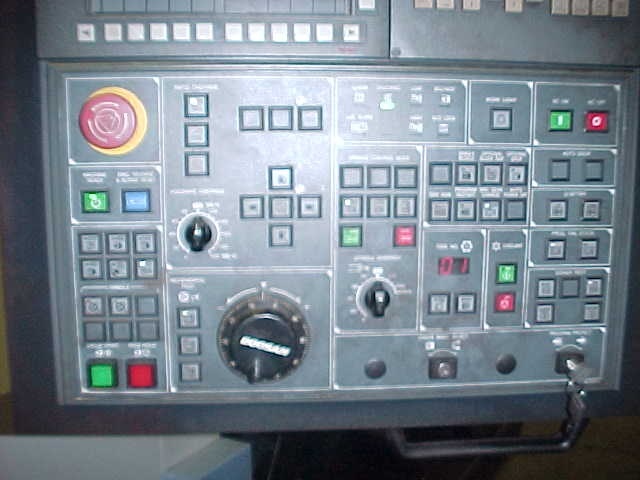

DoosanPuma-400 C14748 Puma-400 C 4.jpg

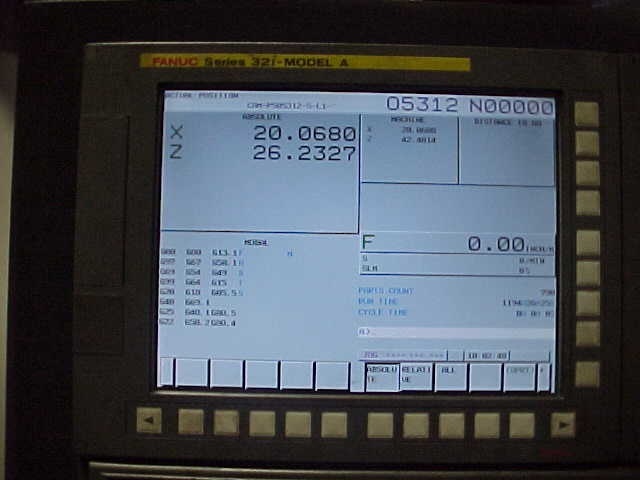

Quick Links
