Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl

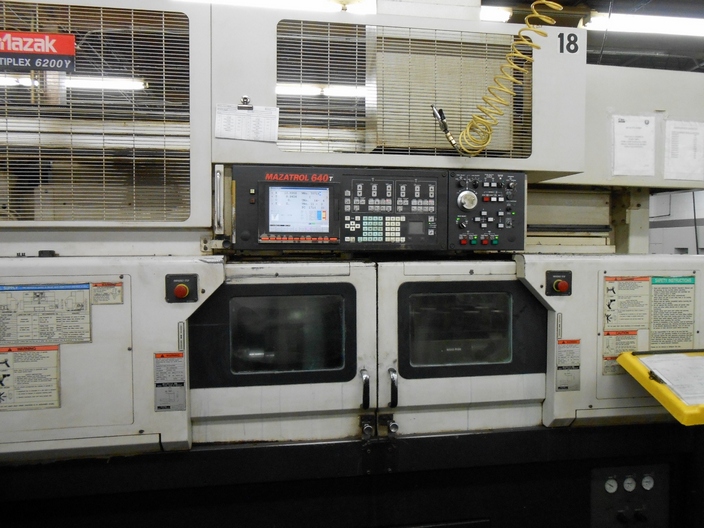

145022004MazakMultiplex 6200 YMazatrol Fusion 640 T

 DescriptionSpec Values
Capacity:Swing / Maximum Turning Diameter12.5" / 10.24"
 Distance Between Spindle Faces46.85"
Spindle:Spindle Speeds Minimum - Maximum65 - 5,000 RPM
 Spindle Bore / Bar Capacity / Spindle Nose2.4" / 2" / A2-6
 Main Motor (30 min / continuous)30 / 20 HP

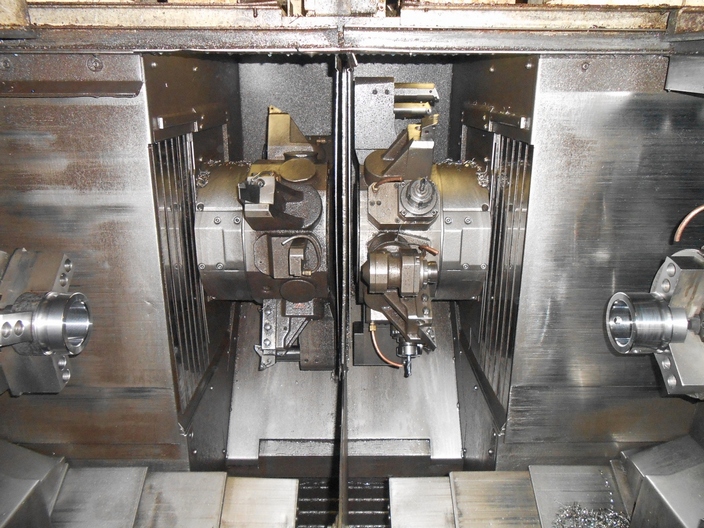

Turrets:Number of Positions (turret one & turret two)12 Tools Each
Travels:X-Axis Travel (turret one & turret two)9.06"
 Z-Axis Travel (turret one / turret two)17.25" / 19.37"
 Y-Axis Indexing+/- 2.0"
 C-Axis Indexing360,000°
Rotary Tools:Rotary Tool Speed (turret one/ turret two)30 - 4,500 RPM
 Rotary Tool Motor5 HP
Rapids:Rapid Traverse (X / Y / Z)1,200 / 393 / 1,300 IPM
Dimensions:Floor Space (L x W x H)141" x 78" x 83"
 Weight (approx)18,520 Lbs

 Equipped With

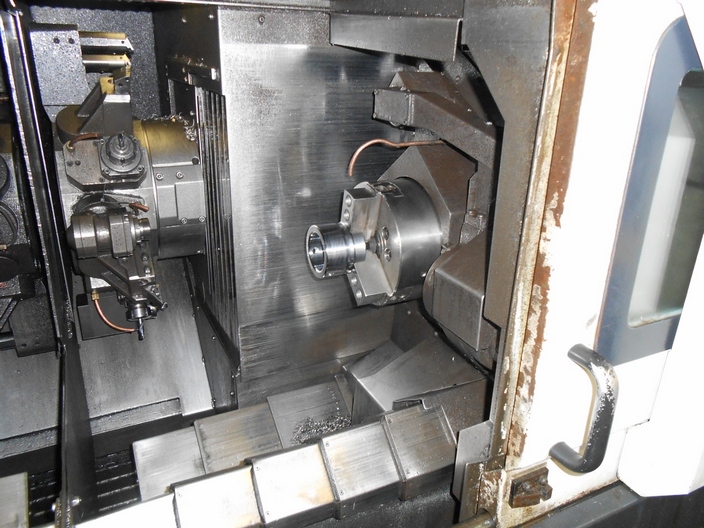

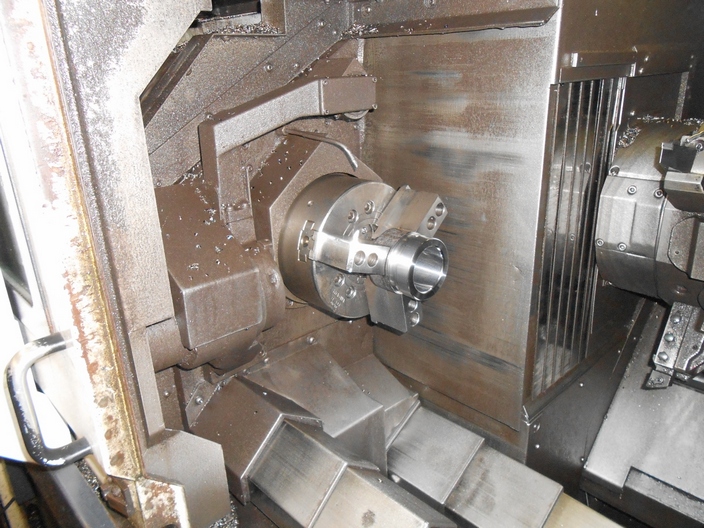

Additional Info.:Two (2) 8" Hydraulic Chucks
 Absolute Positioning Detection
 Tool Life Monitoring - Both Turrets
 EIA / ISO Package
 Automatic Tool Eyes - Both
 Chip Conveyor (new in 2014)

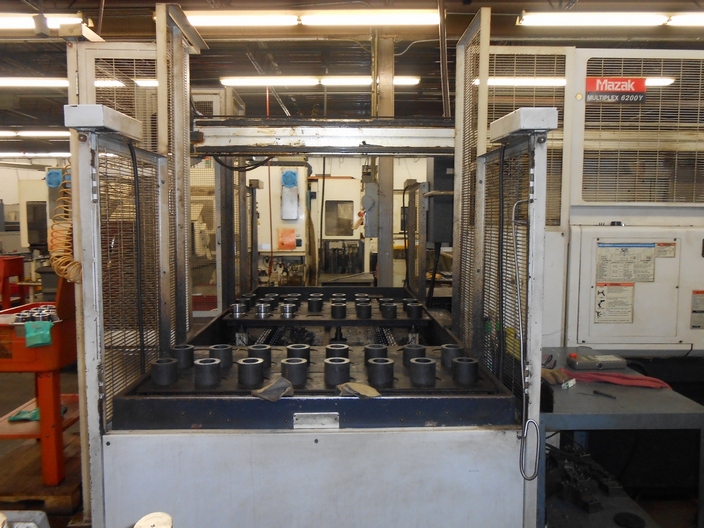

 Mazak GL-100 Gantry Load / Un-Load System
 Multitap Transformer
 Full "C" Axis - Both Spindles
 Standard Tooling Package
Note:Covered By Extended Warranty Until 2016


Click Here To Print Quote - 14502

Click Here To Email Quote Request - 14502

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos
MazakMultiplex 6200 Y14502http://www.machinetools247.com/images/machines/14502-Mazak Multiplex 6200 Y.jpg
MazakMultiplex 6200 Y14502http://www.machinetools247.com/images/machines/14502-Mazak Multiplex 6200 Y 1.jpg
MazakMultiplex 6200 Y14502http://www.machinetools247.com/images/machines/14502-Mazak Multiplex 6200 Y 2.jpg
MazakMultiplex 6200 Y14502http://www.machinetools247.com/images/machines/14502-Mazak Multiplex 6200 Y 3.jpg
MazakMultiplex 6200 Y14502http://www.machinetools247.com/images/machines/14502-Mazak Multiplex 6200 Y 4.jpg
MazakMultiplex 6200 Y14502http://www.machinetools247.com/images/machines/14502-Mazak Multiplex 6200 Y 5.jpg
MazakMultiplex 6200 Y14502http://www.machinetools247.com/images/machines/14502-Mazak Multiplex 6200 Y 6.jpg
MazakMultiplex 6200 Y14502http://www.machinetools247.com/images/machines/14502-Mazak Multiplex 6200 Y 7.jpg
