Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
141341999MazakIntegrex 70 Y / 3000Mazatrol Fusion 640 T

 DescriptionSpec Values
Capacity:Swing Over Bed / Swing Over Saddle36" / 30.31"
 Maximum Turning Diameter / Length32" / 121.3"
Spindle:Spindle Speeds5 - 750 RPM
 Spindle Bore / Bar Cap / Spindle Nose10.2" / 9.5" / A2-11
 Main Motor (30 min. / continuous)60 / 50 HP
Turret:Number of Positions / Taper60 ATC / 50
Travels:X-Axis Travel27.5"
 Z-Axis Travel121.3"
 Y-Axis Travel5.12" +/-
 B-Axis Travel+30° / -180°
Rotary Tools:Rotary Tool Speed18 - 3,000 RPM
 Rotary Tool Motor15 HP
Rapids:Rapid Traverse (X / Y / Z )472 / 315 / 590 IPM
 Feed Rate197 IPM
Tailstock:Stroke of Body / Quill120" / 5.1"
 Quill Diameter / Taper5.19" / #4 MT
Dimensions:Floor Space (L x W x H)260" x 120" x 114"
 Weight (approx.)28,000 Lbs

 Equipped With
Additional Info.:24" 3-Jaw Chuck (SMW)
 EIA / ISO Input Function
 Multi-Tap Transformer
 Chip Conveyor
 Tool Presetter
 All Available Manuals & Tooling
 Programmable Hydraulic Tailstock (body & quill)
 Conversational Programming
 Steady Rest
 Coolant Through Milling Head
 Synchronous Tapping
 Enhanced Y-Axis
 Long Boring Bar Stocker With ATC


Click Here To Print Quote - 14134

Click Here To Email Quote Request - 14134

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

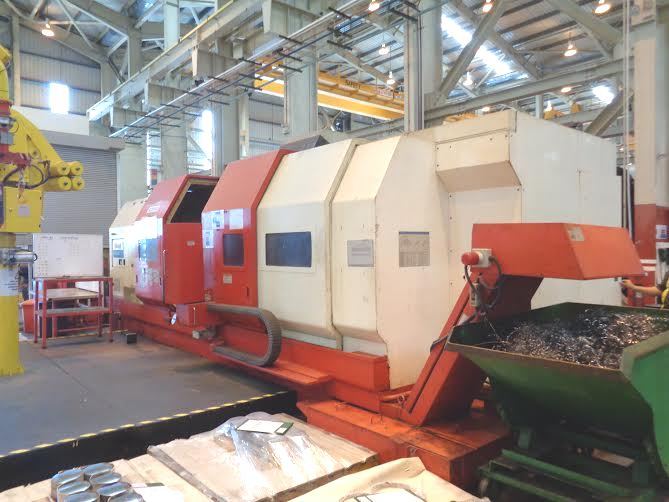

MazakIntegrex 70 Y / 300014134http://www.machinetools247.com/images/machines/14134-Mazak Integrex 70 Y.jpg
