Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
137812003MazakSlant Turn-80Mazatrol Fusion 640 T

 DescriptionSpec Values
Capacity:Swing / Swing Over Cross Slide43.16" / 33.16"
 Maximum Turning Diameter / Maximum Turning Length30" / 82"
 Distance Between Centers88"
Spindle:Spindle Speeds Minimum - Maximum30 - 300 RPM
 Spindle Bore / Bar Capacity / Nose21.25" / 21.25" / DIA 700
 Main Motor (30 min / continuous)80 / 75 HP
Turret:Number of Positions15 Stations
Travels:X-Axis Travel26.75"
 Z-Axis Travel82"
Tailstock:Stroke of Body / Quill70" / 6.1"
 Quill Diameter / Taper6.13" / MT #6
Rapids:Rapid Traverse (X & Z )472 / 394 IPM
Dimensions:Floor Space (L x W x H)145" x 120" x 102"
 Weight (approx.)55,000 Lbs

 Equipped With
Additional Info.:32" 4-Jaw Manual Chuck
 Rear Flange For Back Chuck
 Re-Threading Option
 Chip Conveyor
 Performance Package
 High Power Coolant
 EIA / ISO Programming
 Floppy Drive


Click Here To Print Quote - 13781

Click Here To Email Quote Request - 13781

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

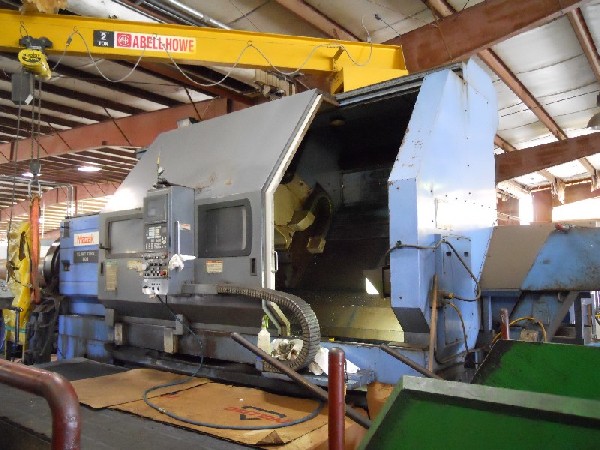

MazakSlant Turn-8013781http://www.machinetools247.com/images/machines/13781-Mazak Slant Turn-80.jpg
