Machine Tools 24-7 Machine Quote - Click on the Machine ID Number Below to View Machine Photos Separately

Below are the specs we have on file for this machine.  Please contact Machine Tools 24-7 if you have any questions.

Machine IDYearManufacturerModelControl
131212008OkumaMultus B300 BB SWOSP-P200L

 DescriptionSpec Values
Capacity:Swing Over Bed / Swing Over Saddle24.8" / 20.87"
 Maximum Turning Diameter Main / Sub17.72" / 17.72"
 Distance Between Spindles / Maximum Turning Length35.43" / 22.83"
Main Spindle:Speeds38 - 5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose3.75" / 2.75" / A2-8
 Motor (30 min. / cont.)20 / 15 HP
Sub-Spindle:Speeds38 - 5,000 RPM
 Spindle Bore / Bar Cap / Spindle Nose / Indexing3.75" / 2.75" / A2-8
 Motor (30 min. / cont.)20 / 15 HP
Turrets:Number of Positions (each)40 Station ATC
Travels:X-Axis Travel22.83"
 Z-Axis Travel36.8"
 Y-Axis Travel / W-Axis Travel3.15" +/- / 225°
 B-Axis Travel (sub-spindle)39.37"
 C-Indexing360,000°
Rotary Tools:Rotary Tool Speed10,000 RPM
 Rotary Tool Motor15 HP
Rapids:Rapid Traverse (X & Z / Y)1,575 / 1,024 IPM
 Sub Spindle Rapid Traverse787 IPM
Dimensions:Floor Space (L x W x H)174" x 80" x 105"
 Weight (approx)22,000 Lbs

 Equipped With
Additional Info.:10" 3-Jaw Chuck Both Spindles
 RS-232 Port
 Parts Catcher
 Touch Setter
 Remote Jog Handle
 Spindle Load Meter
 Chip Conveyor
 Spindle Synchronization


Click Here To Print Quote - 13121

Click Here To Email Quote Request - 13121

TERMS: Cash or Cashiers Check with order, and all equipment is FOB on floor from sold location unless otherwise stated. All equipment subject to prior sales and is exclusive of any government tax. Equipment descriptions are intended only as a guide and their accuracy is not guaranteed. CONDITIONS: Item(s) are sold "As Is, Where Is" unless other arrangements have been made and conveyed in writing. There are no warranties, which extend beyond the description on the face hereof; quotation subject to change without notice. All agreements and/or contracts made by sales person are subject to approval. -EQUIPMENT SAFETY: It is the buyer's/user's responsibility to provide proper safety devices and equipment to safeguard persons from harm resulting from any particular use, operation or set-up, and to adequately safeguard the equipment conform to all Federal, State and Local Government Safety Standards and all Industrial Standards. - INDEMNIFICATION: Buyer/User agrees to Indemnify and hold harmless Seller and Salespersons from any and all claims or liabilities caused by or arising from the equipment on the face hereof. All equipment quoted is subject to prior sale. It is purchasers responsibility to verify machine condition, specifications and pay any and all applicable taxes.




ManufacturerModelMachine IDMachine Photos

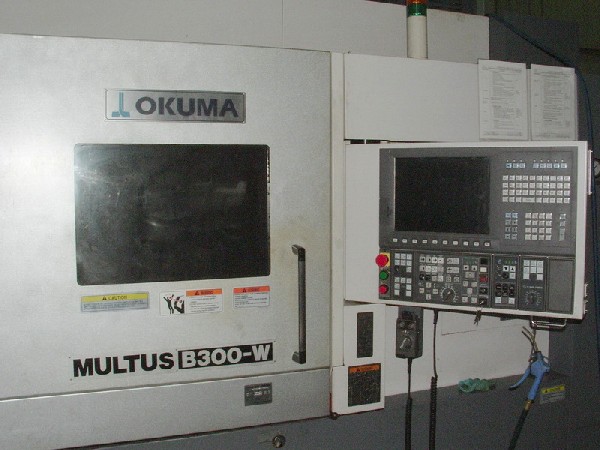

OkumaMultus B300 BB SW13121http://www.machinetools247.com/images/machines/13121-Okuma Multus B300 BB SW.jpg

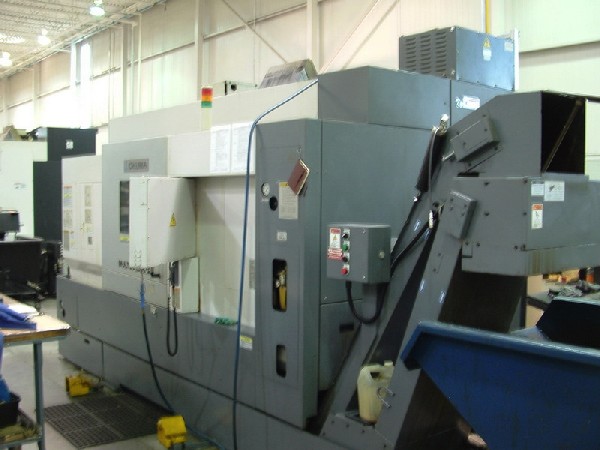

OkumaMultus B300 BB SW13121http://www.machinetools247.com/images/machines/13121-Okuma Multus B300 BB SW 1.jpg

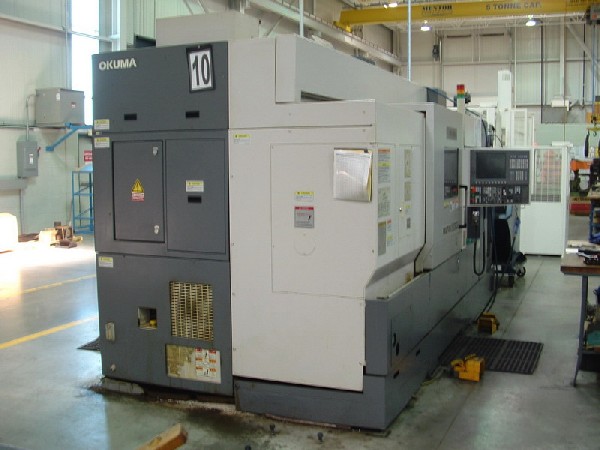

OkumaMultus B300 BB SW13121http://www.machinetools247.com/images/machines/13121-Okuma Multus B300 BB SW 2.jpg

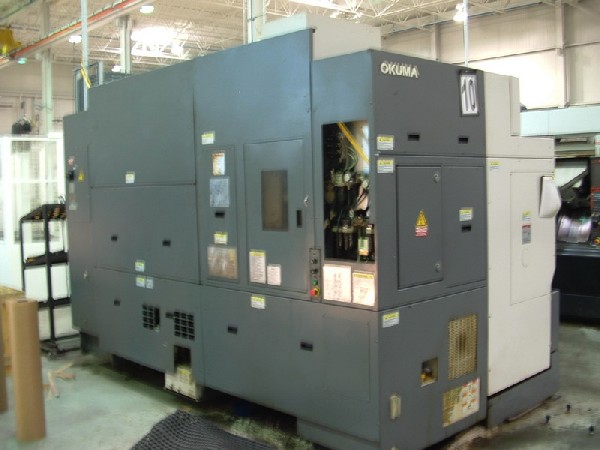

OkumaMultus B300 BB SW13121http://www.machinetools247.com/images/machines/13121-Okuma Multus B300 BB SW 3.jpg

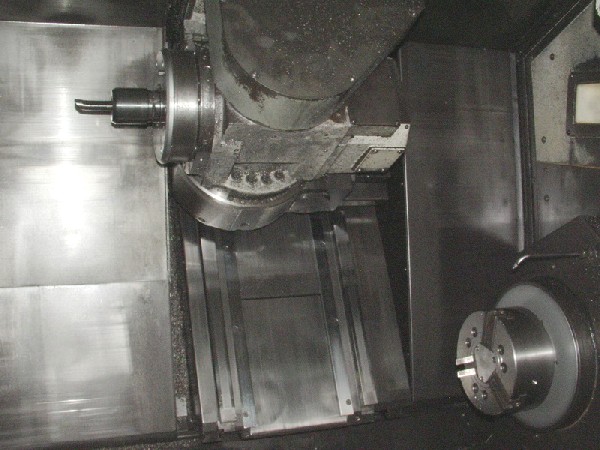

OkumaMultus B300 BB SW13121http://www.machinetools247.com/images/machines/13121-Okuma Multus B300 BB SW 4.jpg

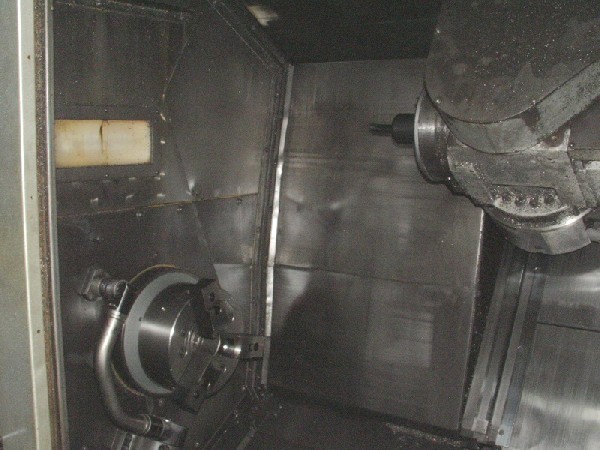

OkumaMultus B300 BB SW13121http://www.machinetools247.com/images/machines/13121-Okuma Multus B300 BB SW 5.jpg
